Half-metre Mini SAS SFF-8087 to four SATA braided cable

Vszerda

Vszerda 0.5m Mini SAS SFF-8087 to 4 SATA Braided Cable

SKU CH-J1VE-MMKJW

Connects a RAID or PCIe controller with an SFF-8087 port to four SATA drives, supporting 6Gb/s bandwidth per drive

  • Connect RAID controllers to four SATA drives via SFF-8087 36-pin interface
  • Achieve 6Gb/s throughput per drive with PCIe 2.0 x8 lane support
  • Braided nylon sheath and acetate tape provide flexible strain relief for tight routing
  • Low-profile SATA connectors with steel latches resist vibration and accidental disconnection
  • Tinned copper 30 AWG drain wire ensures clean signal integrity across .5 metre length

Internal SAS breakout cable

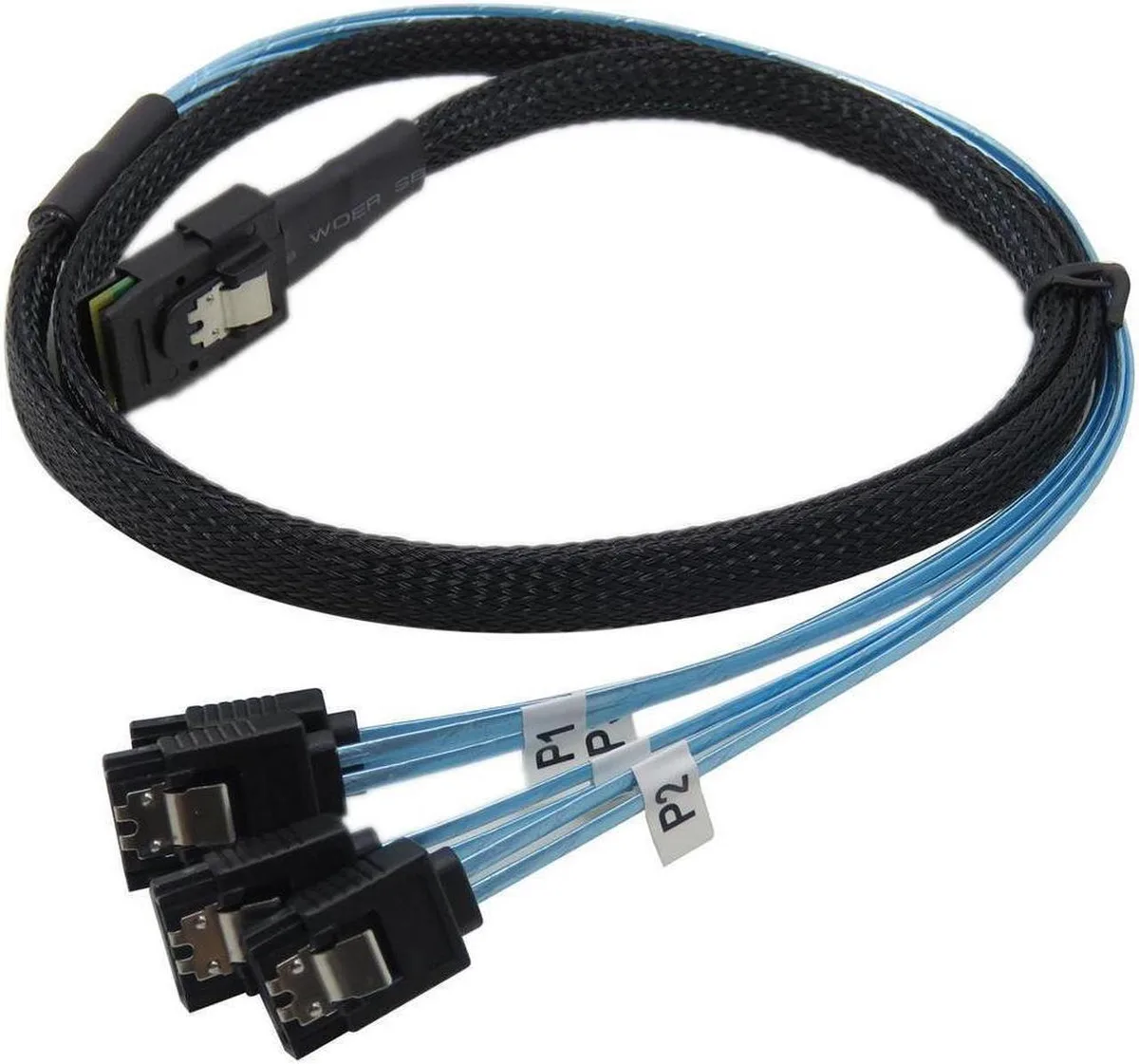

This 0.5 metre Mini SAS SFF-8087 to four SATA breakout cable connects a RAID or PCIe host bus adapter to up to four SATA drives. It is built for internal server or workstation storage arrays that use a 36-pin controller port. The forward breakout design suits direct-attached storage configurations.

Braided strain relief and latch connectors

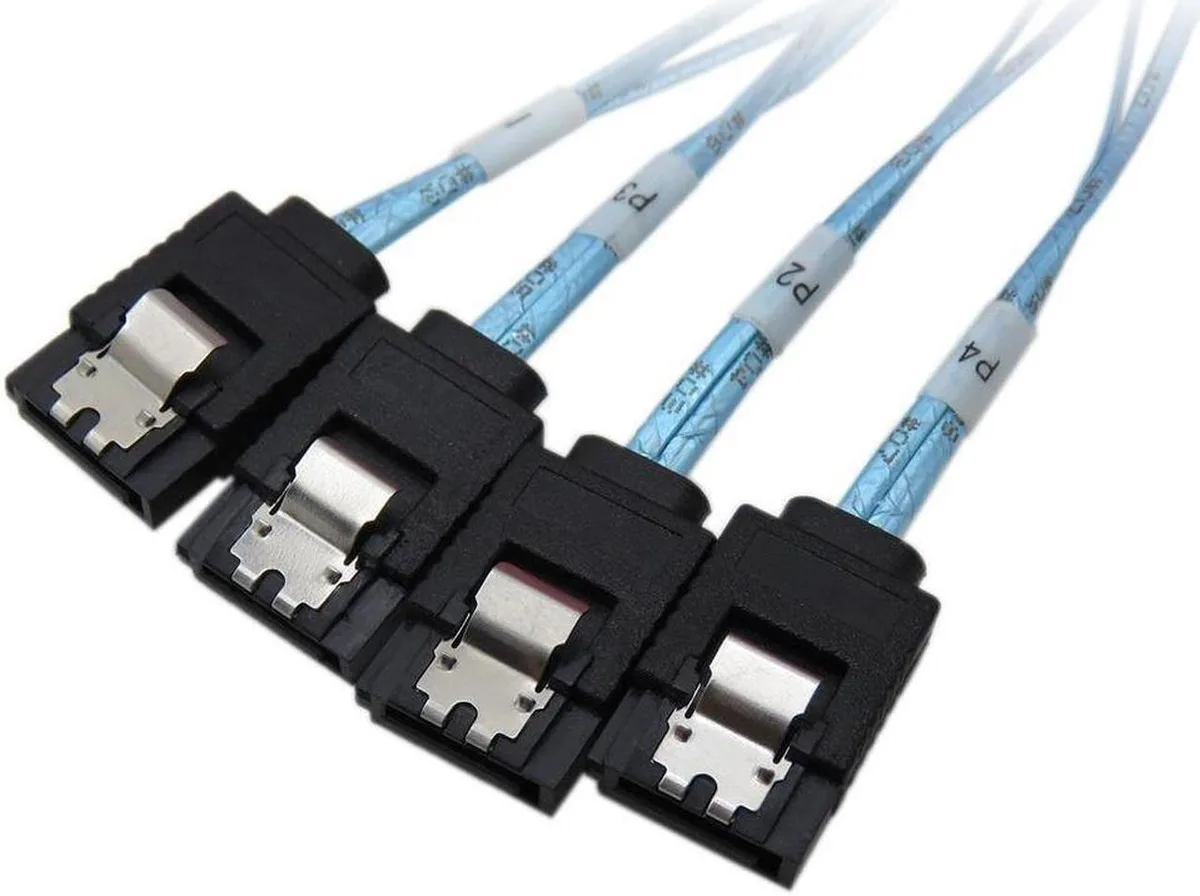

Acetate cloth tape over slim ribbon cables provides strain relief without adding rigidity, while a woven mesh sheath covers half the length for easier routing. Low-profile SATA connectors feature stainless steel latches and easy-grip treads to resist accidental disconnection and vibration. P1 to P4 markers simplify drive identification after installation.

Check controller port and drive count

Verify your host adapter presents a Mini SAS SFF-8087 male port and that you need exactly four SATA target connections. The cable supports 6 Gb/s per drive and is compatible with cards such as the 3Ware 9650SE-8LPML. Ensure your backplane or drives accept standard 7-pin SATA female connectors before ordering.

Highlights

  • Connect RAID controllers to four SATA drives via SFF-8087 36-pin interface
  • Achieve 6Gb/s throughput per drive with PCIe 2.0 x8 lane support
  • Braided nylon sheath and acetate tape provide flexible strain relief for tight routing
  • Low-profile SATA connectors with steel latches resist vibration and accidental disconnection
  • Tinned copper 30 AWG drain wire ensures clean signal integrity across .5 metre length

Specifications

No published specifications for this item yet.

Questions about this item

What bandwidth does the SFF-8087 to 4 SATA cable support per drive?

The cable supports up to 6Gb/s bandwidth per drive when connected to a compatible controller.

What are the connector types and pin counts on each end of this cable?

One end has a 36-pin Mini SAS SFF-8087 male connector for the controller; the other end splits into four SATA 7-pin female connectors for drives.

How do you correctly route and secure the four SATA breakout connectors during installation?

Use the P1 to P4 markers to identify each lane, engage the stainless steel latches on the low-profile SATA plugs, and route the flexible braided sheath to avoid sharp bends near the acetate tape strain relief.
