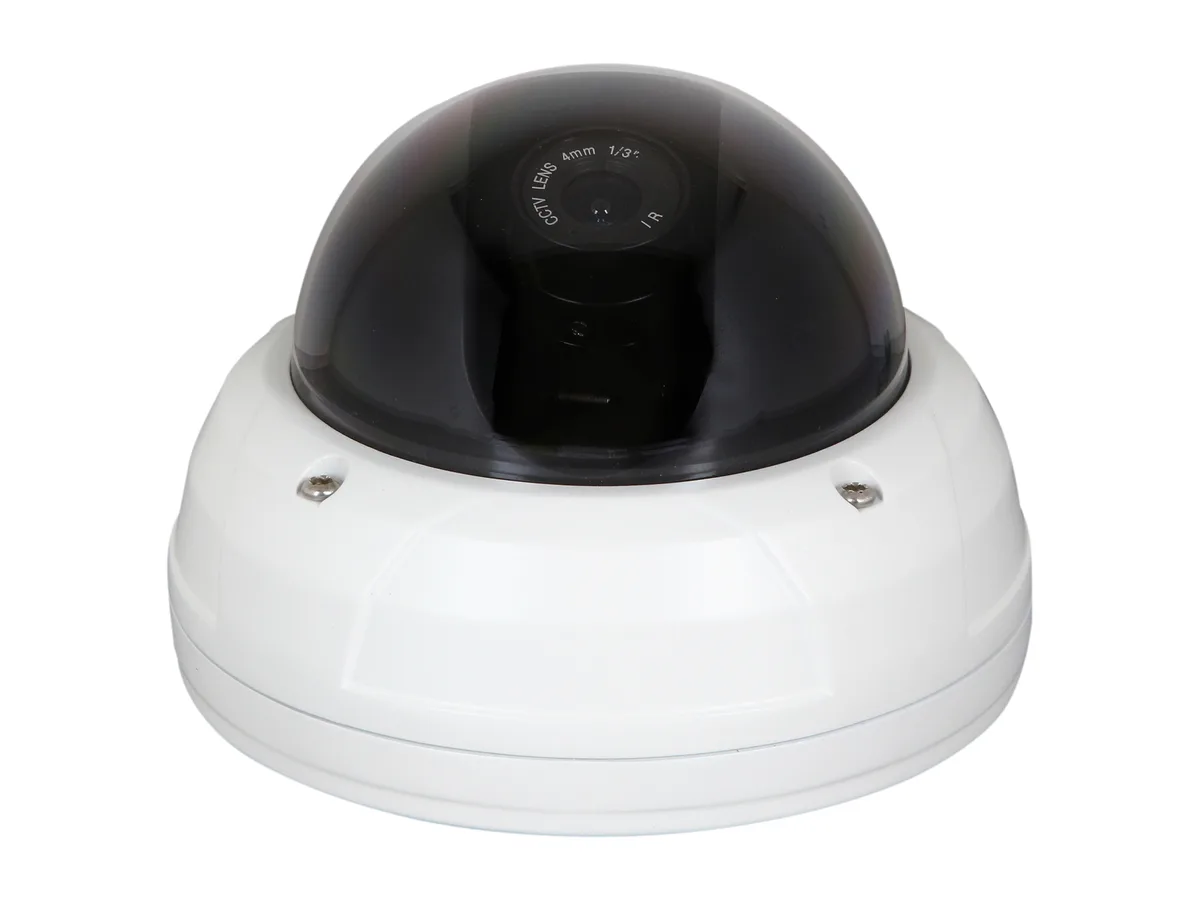

White dome surveillance camera, compact rounded housing, matte finish, fixed lens visible, IP66 rated for outdoor use

VONNIC

VONNIC VCD510W 480 TVL 4mm Dome Analog Camera

SKU CH-97P2-KY6FA MPN VCD510W

IP66-rated dome camera with 480 TVL resolution, 4 mm fixed lens, night vision to 0.1 lux and three-axis adjustment

  • TypeDome Camera
  • Sensor & Detector1/3" Sony Super HAD CCD II
  • MAX Resolution480 TV Lines
  • Lens Type4mm Fixed
  • Shutter Control1/50(1/60)-1/100,000 Sec
  • Night VisionYes
  • Clear images in low light with 0.1 LUX sensitivity
  • Durable outdoor use with IP66 weather and vandal proofing
  • Flexible positioning via 3-axis design
  • Detailed 480 TV lines resolution from Sony CCD sensor
  • Wide 40 degree viewing angle with 4mm fixed lens

Product identity

The Vonnic VCD510W is an analog dome camera with a 1/3" Sony Super HAD CCD II sensor delivering 480 TV lines. It suits installers adding a single outdoor eye to an existing coaxial DVR system.

Installation fit

A 12 V DC supply is required but not included, and the camera draws 500 mA. The IP66 housing and 3-axis bracket allow wall or ceiling mounting with flexible aiming. A fixed 4 mm lens gives a 40 degree view angle.

Upgrade context

It replaces older standard-resolution analog domes where 480 TV lines and 0.1 lux minimum illumination improve detail. The jump is worth it when the DVR records at matching resolution and night vision is needed.

Highlights

  • Clear images in low light with 0.1 LUX sensitivity
  • Durable outdoor use with IP66 weather and vandal proofing
  • Flexible positioning via 3-axis design
  • Detailed 480 TV lines resolution from Sony CCD sensor
  • Wide 40 degree viewing angle with 4mm fixed lens

Specifications

BrandVonnic
ModelVCD510W
TypeDome Camera
Sensor & Detector1/3" Sony Super HAD CCD II
MAX Resolution480 TV Lines
Lens Type4mm Fixed
Shutter Control1/50(1/60)-1/100,000 Sec
Night VisionYes
PowerDC 12V (Not Included)
FeaturesScanning system: NTSC
Minimum illumination: 0.1 LUX
S/N Ratio: More than 48dB
White Balance: AUTO
Auto Gain Control: AUTO
Gamma Correction: 0.45
IP66 Weather/Vandal Proof
3 AXIS design
Power Consumption: 500mA
View Angle: 40 degree
Product Dimension (LxWxH): 5.3x5.3x4in (13.4x13.4x10.2cm)
Shipping weight1.07 kg
Package size178 × 178 × 132 mm

Questions about this item

How far does the 4mm fixed lens see clearly at 0.1 LUX minimum illumination?

The 4mm fixed lens provides a 40 degree view angle and the sensor reaches 0.1 LUX minimum illumination for low-light performance.

How much heat does the 500mA draw at 12V DC generate inside the IP66 dome during continuous recording?

The camera consumes 500mA at DC 12V and the IP66 weather/vandal proof housing is designed to dissipate heat in outdoor conditions.

Which DVR inputs accept the NTSC composite signal from this analog dome camera?

The camera outputs an NTSC scanning system signal over standard BNC composite video, compatible with analog DVRs that support NTSC input.
