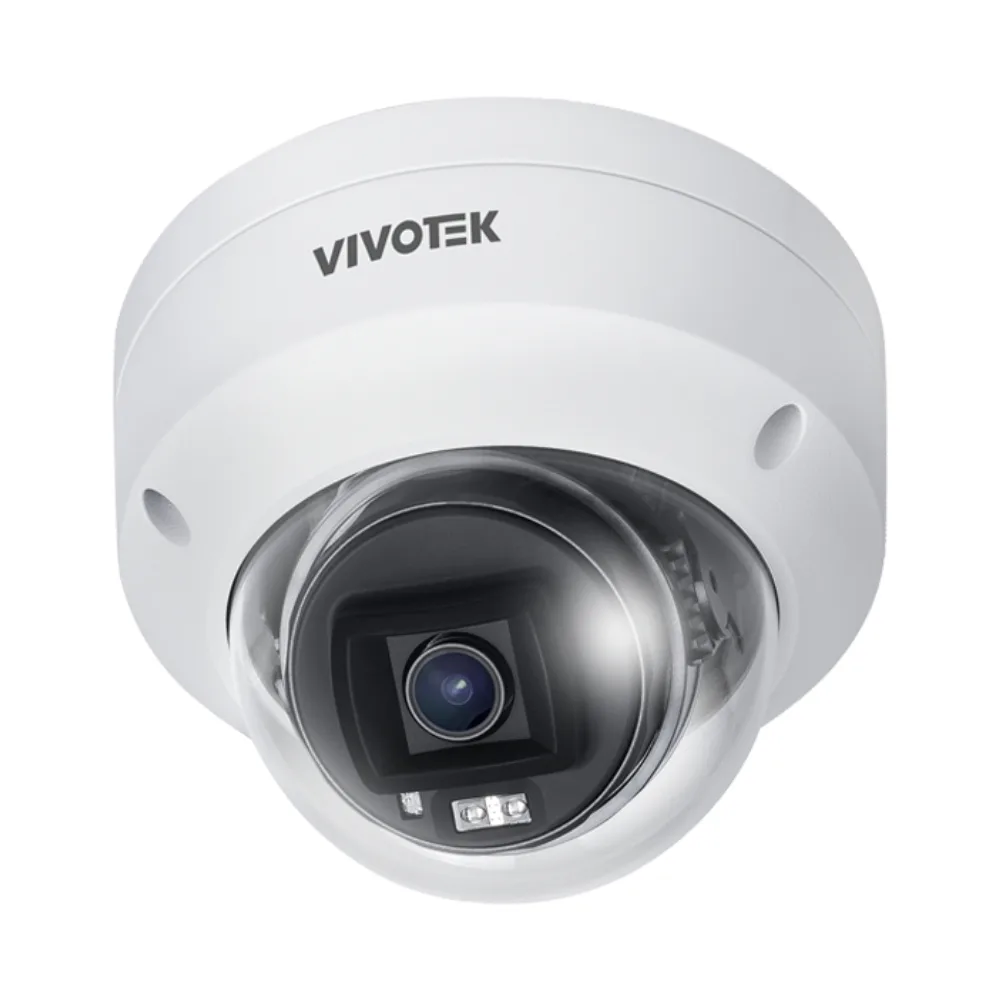

White outdoor fixed dome network camera with clear bubble lens and metal base

VIVOTEK Inc.

VIVOTEK Inc. FD9380-HV-V2 5MP network camera

SKU CH-QHGW-BTP17 MPN FD9380-HV-V2

A 5 MP outdoor dome camera with AI object analytics, 30 m IR night vision and IK10-rated metal housing

  • Network CameraYes
  • TypeDome Camera
  • Connection TypeRJ45
  • ColorWhite
  • Micro SD SlotSeamless Recording to MicroSD/SDHC/SDXC card (1TB capacity s
  • Networking Protocol802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, H
  • AI detects people and vehicles for accurate alerts
  • Smart IR illuminates up to 30 metres at night
  • IK10 metal housing resists heavy impact damage
  • Trend Micro IoT Security blocks cyber attacks
  • 5 MP sensor captures 2880 x 1616 at 30 fps

5MP Outdoor Dome Camera

The Vivotek FD9380-HV-V2 is a 5 megapixel network dome camera built for outdoor surveillance. It captures video at a maximum resolution of 2880 x 1616 at 30 frames per second. A 2.8 mm fixed lens with an F1.6 aperture provides a 111.0° horizontal field of view. Integrated IR illumination reaches up to 30 metres for night monitoring.

Installers needing AI analytics and rugged housing

This camera suits installers who require Vision Object Analytics for people and vehicle detection plus Smart VCA for accurate alarms. The metal housing carries an IK10 impact rating and the casing is white. Buyers who need motorised pan-tilt-zoom movement or a varifocal lens for adjustable framing should look at other models.

ONVIF Profile with TLS 1.2 and 1.3 support

The camera conforms to ONVIF for interoperability with compliant recorders and management software. Network security includes TLS 1.2/1.3, IEEE 802.1x, signed firmware and Trend Micro IoT Security features. Footage can be recorded seamlessly to a MicroSD, SDHC or SDXC card with up to 1TB capacity. Power is delivered via the RJ45 connection.

Highlights

  • AI detects people and vehicles for accurate alerts
  • Smart IR illuminates up to 30 metres at night
  • IK10 metal housing resists heavy impact damage
  • Trend Micro IoT Security blocks cyber attacks
  • 5 MP sensor captures 2880 x 1616 at 30 fps

Specifications

BrandVivotek
SeriesC-Series
ModelFD9380-HV-V2
Network CameraYes
TypeDome Camera
Connection TypeRJ45
ColorWhite
Micro SD SlotSeamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported)
Networking Protocol802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
ONVIFYes
Pan/TiltPan Range: 350°
Tilt Range: 75°
Rotation Range: 350°
Sensor & Detector1/2.7" Progressive CMOS
Pixels5 MP
HD Resolution2K
MAX Resolution2880 x 1616
Frame Rate30fps
Lens TypeFocal Length: f = 2.8 mm
Aperture: F1.6
Iris Type: Fixed iris
Field of View
- 111.0° (Horizontal)
- 59.0° (Vertical)
- 133.0° (Diagonal)
Shutter Control1/5 sec. to 1/32,000 sec.
SecurityAccess list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Night VisionYes
AudioTwo-way Audio
Power over EthernetYes
PowerIEEE 802.3af PoE Class 3
DC 12V
DC12V: Max. 6.24W
PoE: Max. 6.38W, typical 3.6 W
Humidity90% RH (non-condensing)
TemperatureStarting Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Dimension117.2 x 117.2 x 89.6 mm
Weight562 g
Operating Systems SupportedMicrosoft Windows 10/8/7
Mac 10.12 (Chrome only)
Shipping weight1.36 kg
Package size152 × 152 × 127 mm

Questions about this item

What network recorder or software must I already have to use the FD9380-HV-V2?

The camera supports ONVIF and streams via RTSP/RTP/RTCP over IPv4 or IPv6, so any NVR or VMS that accepts ONVIF Profile S or generic RTSP streams will recognise it.

Will the FD9380-HV-V2 work alongside my older 1080p cameras on the same NVR?

Yes, the 5 MP sensor delivers 2880 x 1616 at 30 fps while the NVR continues recording the 1080p streams; each camera uses its own RTSP channel and bandwidth allocation.

How can I verify the FD9380-HV-V2 is capturing correctly after installation?

Log into the web interface or NVR live view and confirm a 2880 x 1616 picture at 30 fps with the 111.0° horizontal field of view, then trigger a motion event to check Smart VCA alerts and IR illumination up to 30 m at night.
