ViewSonic LS560WH 3000 ANSI Lumens WXGA LED Business Projector
throw WXGA LED projector delivers 3,000 ANSI lumens, 30,000-hour lamp life and 0.49 throw ratio for glare-free presentations
- Cabinet ColorWhite
- TypeDLP LED
- Brightness3000 ANSI Lumens
- Native Resolution1280x800
- Maximum Resolution1280x800
- Aspect Ratio16:10
- Bright images in well-lit rooms with 3000 ANSI lumens
- Glare-free presentations from close range with 0.49 throw ratio
- Low-maintenance operation via 30000-hour LED light source
- Flexible setup using H/V keystone correction up to 40 degrees
- Instant start and shutdown with lamp-free LED technology
Purpose-built for education and enterprise
The ViewSonic LS560WH is a lamp-free DLP LED projector rated at 3000 ANSI lumens. Its 1280x800 native resolution and 16:10 aspect ratio suit widescreen presentations in classrooms and meeting rooms. The 0.49 short throw ratio produces a 100" image from just 3.6 ft away, keeping presenters clear of the beam.

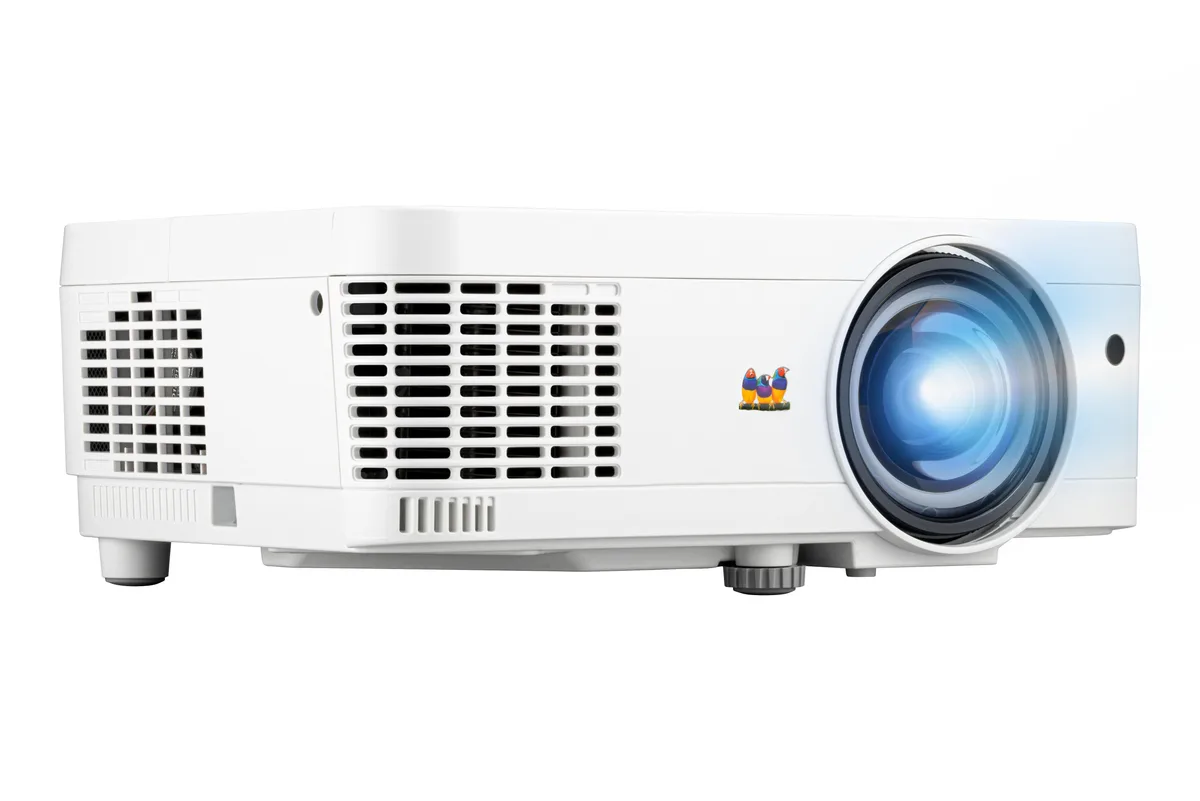

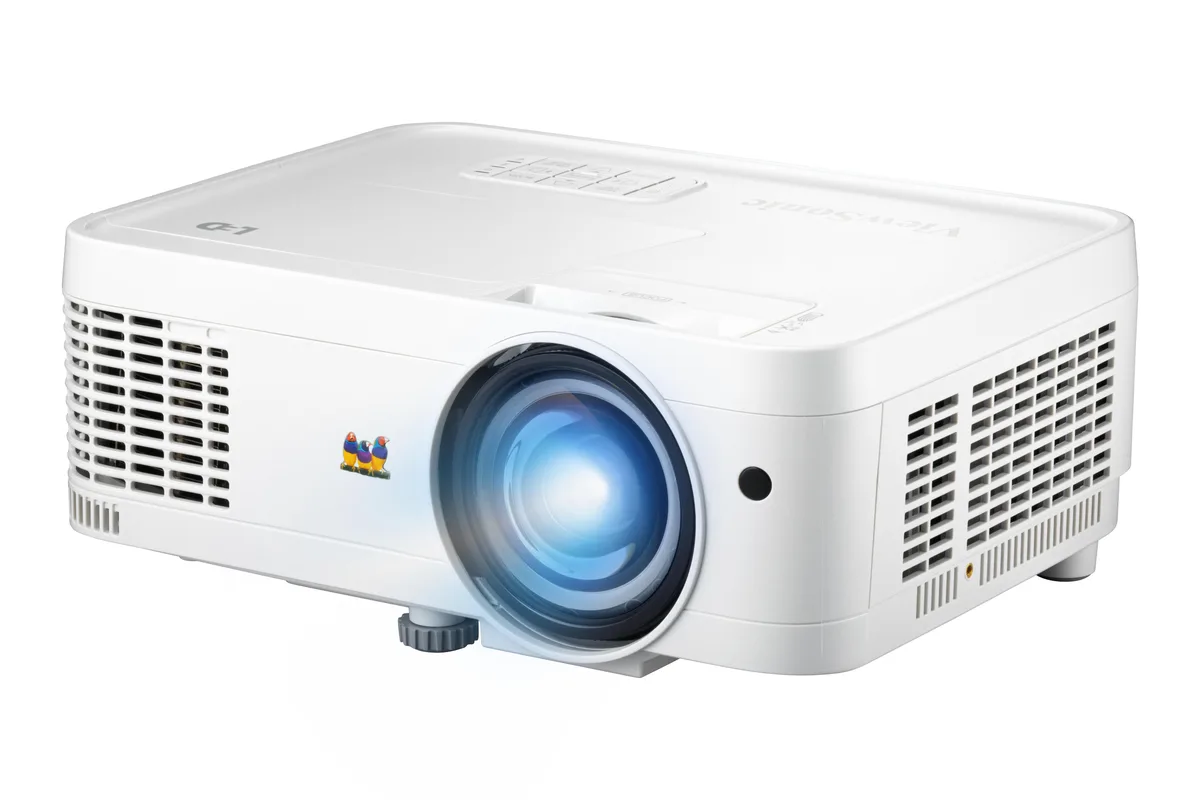

White cabinet with 30000-hour light source
The maintenance-free LED engine eliminates lamp replacements and reduces power draw over the product life. A fixed lens with F2.6 aperture and 6.9mm focal length supports display sizes from 30" to 300" at distances of 0.63m to 1.58m. Horizontal and vertical keystone correction of +/-40° each allows flexible placement on tables or ceiling mounts.
Check throw distance and control integration
Verify that your installation space accommodates the 0.49 throw ratio for the desired screen size. Confirm compatibility with Crestron, AMX, Extron, PJ Link, ATEN or vController for LAN-based management. Ensure source devices output within the 15K-102KHz horizontal and 23-120Hz vertical refresh ranges. This model does not suit users needing higher native resolution or zoom lens flexibility.
Highlights
- Bright images in well-lit rooms with 3000 ANSI lumens
- Glare-free presentations from close range with 0.49 throw ratio
- Low-maintenance operation via 30000-hour LED light source
- Flexible setup using H/V keystone correction up to 40 degrees
- Instant start and shutdown with lamp-free LED technology
Specifications
| Brand | ViewSonic |
|---|---|
| Model | LS560WH |
| Part Number | LS560WH |
| Cabinet Color | White |
| Type | DLP LED |
| Brightness | 3000 ANSI Lumens |
| Native Resolution | 1280x800 |
| Maximum Resolution | 1280x800 |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 3000000:1 |
| Display Size | 30"-300" |
| Horizontal Refresh Rate | 15K~102KHz |
| Vertical Refresh Rate | 23-120Hz |
| Lens | F=2.6, f=6.9mm |
| Throw Ratio | 0.49 |
| Display Colors | 1.07 Billion Colors |
| Throw Distance | 0.63m-1.58m (87"@0.92m) |
| Keystone Correction | H:+/-40° , V:+/-40° |
| Lamp | LED |
| Lamp Life | up to 30000 hours |
| Other Accessories | Kensington Lock Slot 1 |
| Input Video Connectors | 1(HDMI 1.4/ HDCP 1.4) |
| Input Audio Connectors | 3.5mm Audio In 1 |
| Output Audio Connectors | 3.5mm Audio Out 1 |
| Network Connectors | Ethernet Lan (RJ45) 1 |
| USB | USB 2.0 Type A 1 (output, share with USB A service) |
| Users Controls | Keypad, Power key |
| Built-in Speakers | Internal Speaker 2W |
| Regulatory Approvals | cTUVus |
| Power Supply | 100-240V+/- 10%, 50/60Hz (AC in) |
| Power Consumption | Consumption (typical) 229W |
| Temperature Range | 0~40? |
| Humidity Range | NA |
| Dimensions | Packaging (in.) 11.5x8.7x4.5in Physical (in.) 15.2x11.8x7.4in Packaging (mm) 293x221x115mm Physical (mm) 365x300x188mm |
| Weight | Net (lbs) 6.2lbs Gross (lbs) 8.3lbs Net (kg) 2.85kg w/o Stand (kg) NA Gross (kg) 3.95kg |
| Package Contents | Projector, power cable, remote control, Quick Start Guide, |
| Shipping weight | 3.77 kg |
| Package size | 292 × 221 × 114 mm |
Questions about this item
What HDMI version does the LS560WH support and what resolution does it cap at?
The LS560WH accepts HDMI input and displays up to its native 1280x800 WXGA resolution at 60 Hz; higher resolutions are scaled down to this maximum.
What mounting pattern and clearance does the LS560WH require?
The projector uses a standard M4 four-point mount on the base and needs at least 0.63 m throw distance; the 0.49 throw ratio produces a 100" image at 3.6 ft.
How is the LS560WH installed and what step do users often miss?
Place the unit on a flat surface or ceiling mount, connect power and HDMI, run auto keystone for H/V ±40° correction, then enable LAN control for Crestron, AMX, Extron, PJ Link, ATEN or vController integration.
