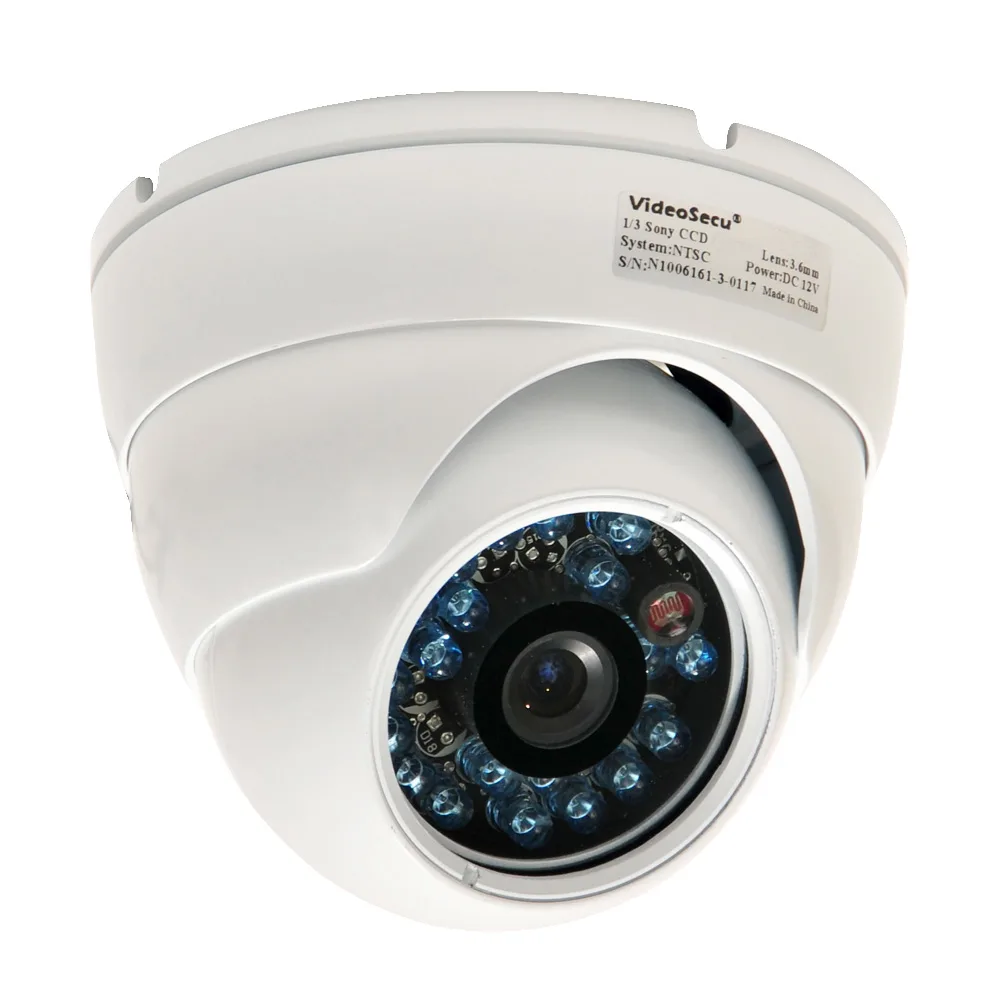

White vandal-proof dome camera with 20 IR LEDs, 3.6mm lens, wired BNC connection

VideoSecu

VideoSecu VD6HWKCW 600TVL 3.6mm 65ft IR White

SKU CH-KD36-3TWQE

Wired analog dome camera with 600 TVL Sony CCD, 3.6 mm lens and 65 ft infrared night vision in vandal-resistant housing

  • ColorWhite
  • Camera TypeDay/Night Camera
  • TypeInfrared Camera
  • Connection TypeWired - BNC Video
  • Sensor & DetectorBuilt-in 1/3 inch SONY CCD, Color DSP
  • MAX Resolution600 TV Lines
  • Day/night colour switching with automatic B&W in low light
  • 65 ft infrared range from 20 built-in LED illuminators
  • 600 TV lines horizontal resolution from 1/3 inch Sony CCD
  • 6 mm wide-angle lens for broad coverage
  • Vandal-proof weather-resistant aluminium housing for outdoor use

Product identity

The VideoSecu VD6HWKCW is a wired analog dome camera built around a 1/3 inch Sony CCD sensor that delivers 600 TV lines of horizontal resolution. It produces colour images by day and switches automatically to black-and-white at 0.0 lux using 20 built-in IR LEDs with a 65 foot range. The 3.6 mm wide-angle lens suits general indoor or outdoor monitoring.

Installation context

The camera connects via a BNC video output and a 2.1 mm centre-positive DC 12 V power input, so it requires a separate DVR, monitor and cabling to form a complete system. The vandal-resistant aluminium housing is rated for weather exposure and can be mounted on a ceiling or wall. A power supply and video power extension cable are included in the box.

Sustained operation

Under continuous use the IR illuminators activate automatically in low light and the day/night transition is handled by the onboard DSP without external control. The fixed 3.6 mm lens maintains a constant field of view and the analog NTSC signal is transmitted over the wired BNC link without compression latency. The camera is not compatible with HD or wireless systems.

Highlights

  • Day/night colour switching with automatic B&W in low light
  • 65 ft infrared range from 20 built-in LED illuminators
  • 600 TV lines horizontal resolution from 1/3 inch Sony CCD
  • 6 mm wide-angle lens for broad coverage
  • Vandal-proof weather-resistant aluminium housing for outdoor use

Specifications

BrandVideoSecu
ModelVD6HWKCW
ColorWhite
Camera TypeDay/Night Camera
TypeInfrared Camera
Connection TypeWired - BNC Video
Sensor & DetectorBuilt-in 1/3 inch SONY CCD, Color DSP
MAX Resolution600 TV Lines
Lens Type3.6mm wide angle
Night VisionYes
PowerDC 12V
Features• Image Sensor: 1/3 inch SONY CCD, Color DSP • IR Range: 65 feet • Horizontal Resolution: 600 TV Lines • Lens: 3.6 mm wide angle • Mounted on ceiling or wall • Vandal proof and weather resistant aluminum housing
Package Contents(1) Dome Camera, (1) Power Supply, (1) video power extension cable and Warning Sticker

Questions about this item

What happens to the 600 TV Lines resolution after hours of continuous recording?

The analog BNC output maintains 600 TV Lines as long as the DVR and cabling support that bandwidth; the camera itself has no internal storage or compression that would degrade the signal over time.

How much heat does the aluminum dome generate when the 20 IR LEDs run all night?

The die-cast aluminum housing acts as a passive heatsink; with DC 12V power the unit stays warm but not hot enough to trigger thermal shutdown in normal outdoor temperatures.

Which DVR input and monitor connection do I need to see a picture from this BNC camera?

You need a DVR with a standard BNC video input and a monitor that accepts the DVR's output — typically HDMI, VGA or composite — plus the supplied 2.1 mm centre-positive 12 V power adapter.
