Eight black dome cameras with infrared LEDs and BNC connectors

VideoSecu

VideoSecu VD6H8 8 Pack 600 TVL 3.6mm Dome Cameras

SKU CH-512G-RPS2X

Eight wired dome cameras with 600 TVL resolution, 3.6 mm lenses and 65 ft infrared night vision include individual power supplies

  • ColorBlack
  • Camera TypeDay/Night Camera
  • TypeInfrared Camera
  • Connection TypeWired - BNC video
  • Sensor & Detectorbulit-in 1/3 inch SONY CCD, color DSP
  • MAX Resolution600 TV Lines
  • Wide-area coverage with 3.6 mm wide-angle lens
  • Clear night monitoring up to 65 feet via 20 IR LEDs
  • Reliable image quality from 1/3 inch Sony CCD sensor
  • Sharp 600 TV lines resolution for detailed footage

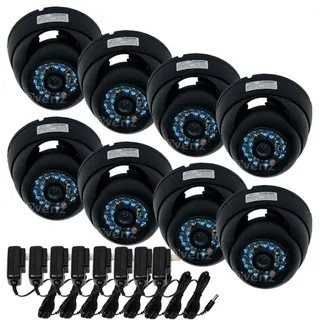

  • Ready-to-install kit includes eight cameras and eight power supplies

Eight-camera analog CCTV kit

This eight-pack supplies eight dome cameras for wired analog surveillance. Each unit uses a built-in 1/3 inch Sony CCD sensor with color DSP to deliver 600 TV lines of horizontal resolution. The 3.6 mm wide-angle lens covers a broad field of view for indoor or outdoor monitoring. Eight individual 12 V DC power supplies are included for straightforward installation.

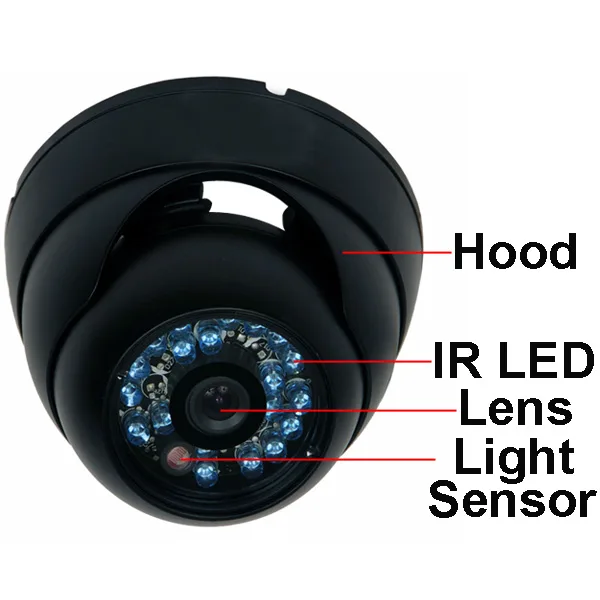

Weatherproof vandal-resistant housings

Heavy-duty aluminum housings protect the cameras against water, dust and physical tampering in exposed locations. Twenty infrared LEDs on each camera provide up to 65 feet of night vision with automatic switching to black-and-white at 0.0 lux. The sealed dome design keeps optics clear in rain or dust without active cooling or moving parts. Power draw is limited to the supplied 12 V DC adapters.

BNC wiring for DVR integration

Video travels over coaxial cable with BNC connectors to a compatible digital video recorder (not included). The NTSC signal system matches standard analog recorders and monitors. Cameras require a separate DVR, cabling and display to complete a functioning system. This kit does not support HD, IP or wireless platforms, so buyers planning network-based or high-definition recording should choose a different technology.

Highlights

  • Wide-area coverage with 3.6 mm wide-angle lens
  • Clear night monitoring up to 65 feet via 20 IR LEDs
  • Reliable image quality from 1/3 inch Sony CCD sensor
  • Sharp 600 TV lines resolution for detailed footage
  • Ready-to-install kit includes eight cameras and eight power supplies

Specifications

BrandVideoSecu
ModelVD6H8
ColorBlack
Camera TypeDay/Night Camera
TypeInfrared Camera
Connection TypeWired - BNC video
Sensor & Detectorbulit-in 1/3 inch SONY CCD, color DSP
MAX Resolution600 TV Lines
Lens Type3.6 mm wide angle
Night VisionYes
PowerDC 12V
Features• Image Sensor: bulit-in 1/3 inch SONY CCD, color DSP • Horizontal Resolution: 600 TV Lines • Lens: 3.6 mm wide angle • Advanced Day Night Mode: color images during daytime / black and white images at night • 65 feet IR Range • IR Illuminators: 20 LEDs • All metal weatherproof housing for indoor or outdoor applications
Package Contents8x Dome Camera, 8x Power Supply and Free Warning Sticker

Questions about this item

How do I connect the BNC video cable and DC 12V power supply to each dome camera?

Run a coaxial cable with BNC connectors from each camera to the DVR video inputs, then plug the included 12V power adapter into the camera's DC jack and a mains outlet; the step often missed is securing the BNC twist-lock so it cannot pull loose.

Which parts of the camera will need replacement after extended outdoor use?

The 20 infrared LEDs that provide the 65 feet night-vision range are the first components to degrade; the Sony CCD sensor and colour DSP are solid-state, but the IR illuminators lose output over time and cannot be serviced individually.

At what point does the analog signal quality limit the usable footage during continuous recording?

The 600 TV Lines horizontal resolution and NTSC signal system set a hard ceiling; once the DVR compresses the composite video stream, detail beyond that resolution cannot be recovered no matter how long the system runs.
