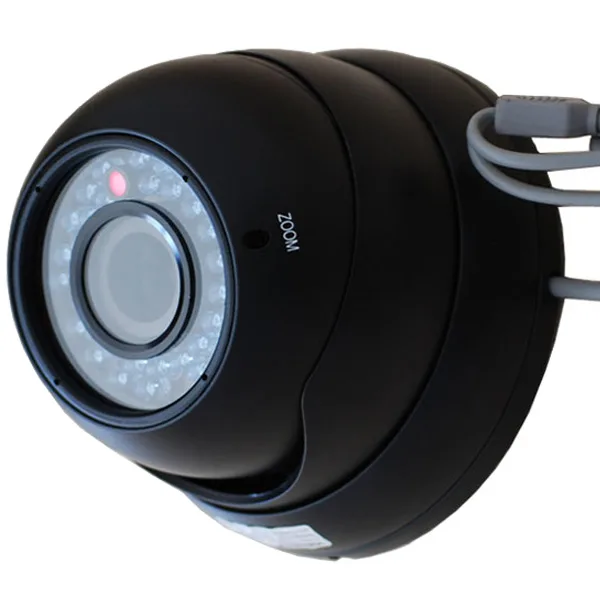

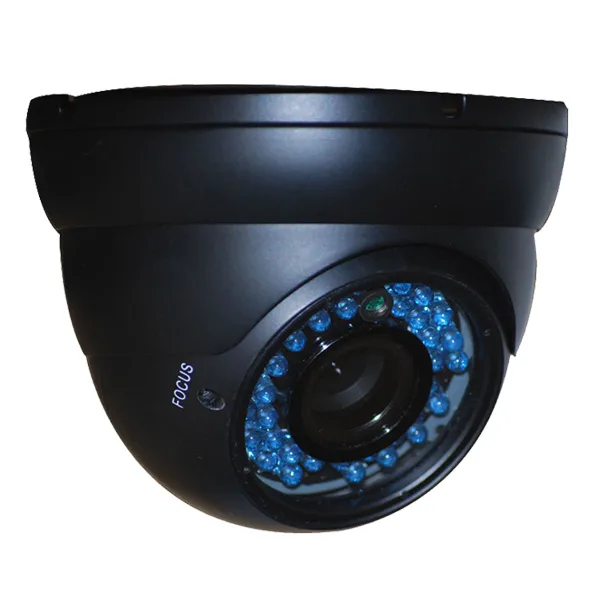

Black vandal-proof dome camera with 36 IR LEDs and varifocal lens

VideoSecu

VideoSecu VD4090 Analog Camera 480TVL 36 IR LEDs 12V

SKU CH-JNCA-SR96E

A wired analog dome camera with a 1/3-inch CCD sensor, 480 TVL resolution, 36 IR LEDs for night vision, and a 4–9 mm varifocal lens

  • ColorBlack
  • Camera TypeDay/Night Camera
  • TypeSurveillance Camera
  • Connection TypeWired - BNC video
  • Sensor & Detectorbuilt-in 1/3 inch CCD, Color DSP
  • MAX Resolution480 TV Lines
  • 480 TV lines deliver clear surveillance images
  • 36 infrared LEDs enable night vision in total darkness
  • 4-9mm manual varifocal lens adjusts viewing angle and focus externally
  • Vandal-resistant aluminium housing withstands weather and tampering
  • 12V DC power input integrates with standard CCTV systems

Analog CCTV Dome Camera

The VideoSecu VD4090 is a wired analog dome camera that connects via BNC to a DVR. It uses a built-in 1/3 inch CCD sensor with Color DSP to capture 480 TV lines of horizontal resolution. The vandal-resistant aluminium housing is weatherproof for indoor or outdoor mounting. Power is supplied separately at 12V DC 500mA.

Suited for fixed analog systems

Installers extending an existing coaxial infrastructure will appreciate the external 4-9mm varifocal adjustment without disassembly. The 36 infrared LEDs activate automatically at 0 lux, switching the image to black and white for night monitoring. Buyers who need IP networking, higher than 480 TVL resolution, or a complete kit with recorder and cables should look at other product types.

480 TVL resolution limit

The single specification that decides fit is the maximum 480 TV lines of horizontal resolution. This defines the detail level the camera can deliver over its BNC output. If the surveillance plan requires finer facial recognition or licence-plate capture, this analog camera will not meet that requirement.

Highlights

  • 480 TV lines deliver clear surveillance images
  • 36 infrared LEDs enable night vision in total darkness
  • 4-9mm manual varifocal lens adjusts viewing angle and focus externally
  • Vandal-resistant aluminium housing withstands weather and tampering
  • 12V DC power input integrates with standard CCTV systems

Specifications

BrandVideoSecu
ModelVD4090
ColorBlack
Camera TypeDay/Night Camera
TypeSurveillance Camera
Connection TypeWired - BNC video
Sensor & Detectorbuilt-in 1/3 inch CCD, Color DSP
MAX Resolution480 TV Lines
Lens Typef 4 - 9mm manual varifocal lens
Night VisionYes
PowerDC 12V
Features• Image Sensor: built-in 1/3 inch CCD, Color DSP • Horizontal Resolution: 480 TV Lines high resolution • IR Illumination: 36 Infrared LEDs for night vision • Advanced Day Night Mode: color images are captured during daytime / black and white images at night • Lens: f 4 - 9mm manual varifocal lens • External adjustments zoom and focus • Can be mounted on wall or ceiling • Weatherproof aluminum housing design for outdoor and indoor applications
Package ContentsDome Security Camera and Free warning sticker

Questions about this item

What comes in the box and what must I buy separately?

The box contains the dome camera and a warning sticker. You must supply a 12 V DC 500 mA power supply, coaxial cable with BNC connectors, and a DVR or monitor to complete the system.

How do I choose between the available lens settings on this model?

The 4–9 mm manual varifocal lens lets you adjust the viewing angle and focus by turning the external screw gears until the desired field of view is reached.

What does the 480 TV Lines figure mean once the camera is installed?

It indicates the horizontal resolution the 1/3 inch CCD sensor delivers over the BNC connection, so recorded footage will show up to 480 TV Lines of detail in both colour daytime and black-and-white night modes.
