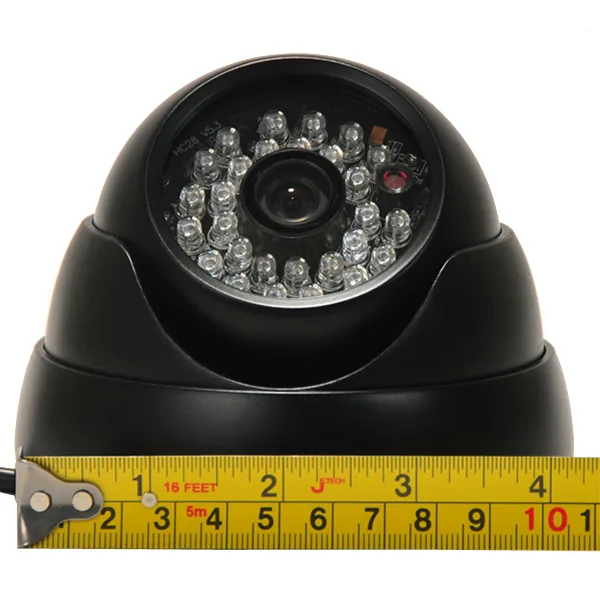

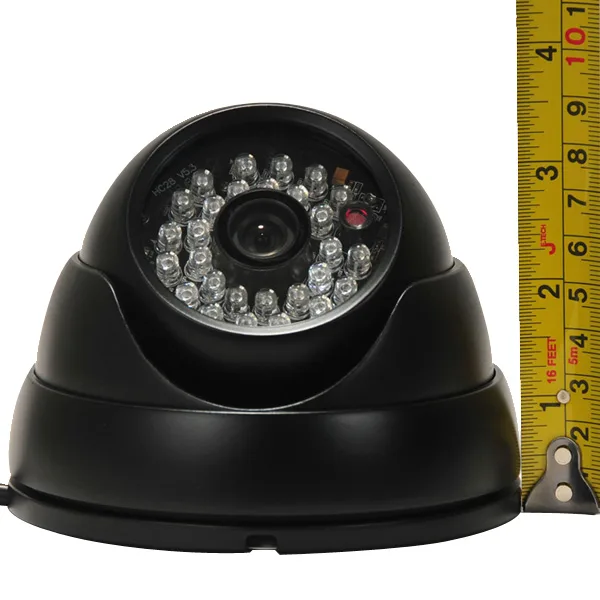

Black dome security camera with 28 IR LEDs and 3.6mm lens

VideoSecu

VideoSecu VD3HBEMKC 700TVL 3.6mm 28 IR LEDs

SKU CH-0SBP-YYE62

Wired analog dome camera with 700 TVL resolution, 3.6 mm wide-angle lens, 28 IR LEDs for night vision, Sony Effio CCD sensor, vandal-proof weatherproof housing, includes power supply.

  • ColorBlack
  • TypeInfrared Camera
  • Connection TypeWired - BNC video
  • Sensor & Detectorbuilt-in 1/3" SONY Effio CCD, color DSP, automatic CDS senso
  • MAX Resolution700 TV Lines
  • Lens Type3.6mm wide angle
  • Clear 700 TV line detail from 1/3" Sony Effio CCD
  • Night vision up to 24 metres via 28 infrared LEDs
  • Wide 3.6 mm lens covers large areas day and night
  • Vandal resistant aluminium housing withstands outdoor weather
  • Complete kit includes power supply, cable and audio microphone

Analog security camera for wired CCTV systems

The VideoSecu VD3HBEMKC is a wired dome camera that connects by BNC cable to an analog DVR. It captures colour footage by day and switches automatically to black-and-white when its 28 IR LEDs illuminate the scene at night. The 3.6 mm wide-angle lens covers a broad field of view for general surveillance. Buyers who need IP networking or HD-SDI resolution cannot use this model.

Weatherproof aluminium housing

A vandal-resistant aluminium dome protects the 1/3" Sony Effio CCD and DSP from tampering and outdoor exposure. The housing is rated weatherproof for permanent exterior installation and accepts either ceiling or wall brackets. Power is supplied through the included 12 V DC adapter, so a nearby mains outlet or protected power run is required. Installers who lack conduit or outdoor-rated cabling will need additional materials.

Power supply, AV cable and microphone included

The box contains the camera, a 12 V DC power supply, a combined audio-video-power cable and a separate microphone for audio capture. A warning sticker is also supplied for visible deterrence. No DVR, monitor or recording media are provided, so the camera alone cannot record or display footage without a compatible analog recorder.

Highlights

  • Clear 700 TV line detail from 1/3" Sony Effio CCD
  • Night vision up to 24 metres via 28 infrared LEDs
  • Wide 3.6 mm lens covers large areas day and night
  • Vandal resistant aluminium housing withstands outdoor weather
  • Complete kit includes power supply, cable and audio microphone

Specifications

BrandVideoSecu
ModelVD3HBEMKC
ColorBlack
TypeInfrared Camera
Connection TypeWired - BNC video
Sensor & Detectorbuilt-in 1/3" SONY Effio CCD, color DSP, automatic CDS sensor
MAX Resolution700 TV Lines
Lens Type3.6mm wide angle
Night VisionYes
PowerDC 12V
Features• Image sensor: built-in 1/3" SONY Effio CCD • Horizontal resolution: 700 TV lines • Lens: f 3.6mm wide angle • IR illuminators: 28 LEDs for night vision • Can be mounted on ceiling or wall • Weatherproof aluminum housing for indoor or outdoor application
Package Contents(1) Dome Camera, (1) Power Supply, (1) Audio Video Power Cable, (1) Microphone, Free Warning Sticker

Questions about this item

What resolution does the BNC video output actually deliver?

The camera outputs up to 700 TV lines over its wired BNC connection, which is the standard analog CCTV limit for this interface.

What mounting surfaces and hardware does the dome housing support?

The weatherproof aluminum dome can be mounted on a ceiling or wall using the included bracket and fixings.

How do I connect the supplied microphone so audio records alongside the video?

Run the provided audio-video-power cable from the camera to your DVR, plug the BNC into the video input and the RCA audio lead into the DVR audio input, then power the camera with the 12 V supply.
