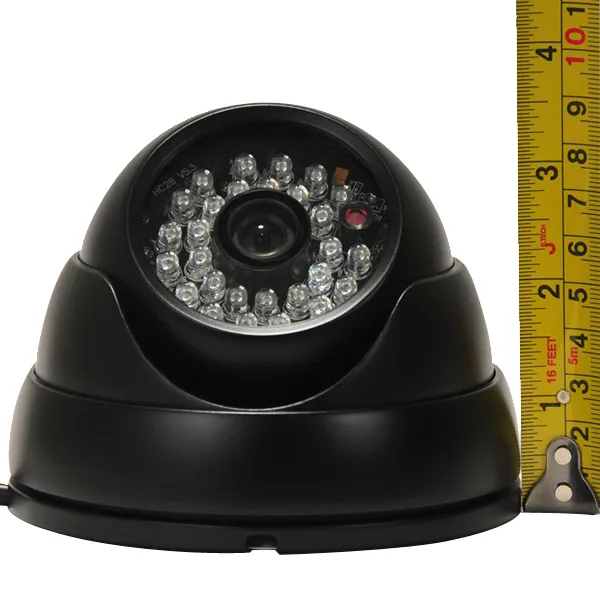

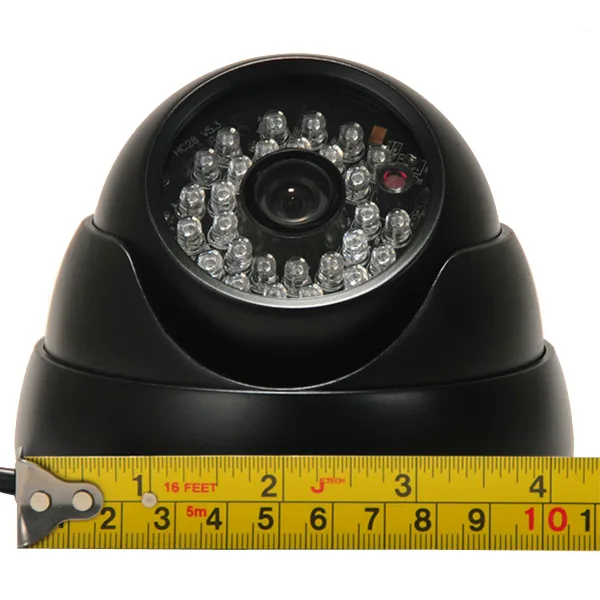

Black weatherproof aluminum CCTV camera with 28 IR LEDs and 3.6mm lens

VideoSecu

VideoSecu VD3HBE-A2 700TVL 3.6mm 28 IR CCTV camera

SKU CH-TYR3-DHEP0

Wired analog camera with 700 TVL resolution, 3.6 mm wide-angle lens, 28 infrared LEDs for night vision, and a weatherproof aluminum housing for indoor or outdoor use.

  • ColorBlack
  • Camera TypeDay/Night Camera
  • TypeSurveillance Camera
  • Connection TypeWired - BNC video
  • Sensor & Detectorbuilt-in 1/3" SONY Effio CCD, color DSP
  • MAX Resolution700 TV Lines
  • Sony Effio CCD delivers 700 TVL clarity
  • 6 mm wide-angle lens captures broad views
  • 28 infrared LEDs provide night vision
  • Weatherproof aluminium housing suits indoor or outdoor use
  • Includes 12 V DC 500 mA regulated power adapter

VideoSecu VD3HBE-A2 analog camera

This wired CCTV camera uses a 1/3 inch SONY Effio CCD sensor with color DSP to deliver 700 TV Lines of resolution. It is built for installers and property owners who need a straightforward analog day/night camera for a DVR-based surveillance system. The 3.6 mm wide-angle lens covers a broad field of view, and the weatherproof aluminum housing allows indoor or outdoor mounting. It requires a separate DVR, cabling and monitor to complete the system.

Bundled power supply and warning sticker

A regulated 12 V DC 500 mA power adapter is included, so the camera can be powered immediately without sourcing a separate transformer. The free warning sticker acts as a visible deterrent when placed near the camera. No video cable, BNC connectors or DVR are supplied, so those must be purchased separately to record or view footage. The camera itself has 28 infrared illuminators that activate automatically in low light for night vision.

Simple BNC installation with common pitfalls

The camera connects through a standard BNC video output, making it compatible with most analog DVRs that accept composite input. Mounting is straightforward thanks to the lightweight aluminum housing, but the fixed 3.6 mm lens cannot be adjusted for narrower or wider coverage after installation. Infrared LEDs may reflect off nearby walls or glass at night, causing glare that reduces image clarity. Ensure the 12 V DC supply matches the camera polarity and that cable runs stay within the voltage-drop limits of the chosen wire gauge.

Highlights

  • Sony Effio CCD delivers 700 TVL clarity
  • 6 mm wide-angle lens captures broad views
  • 28 infrared LEDs provide night vision
  • Weatherproof aluminium housing suits indoor or outdoor use
  • Includes 12 V DC 500 mA regulated power adapter

Specifications

BrandVideoSecu
ModelVD3HBE-A2
ColorBlack
Camera TypeDay/Night Camera
TypeSurveillance Camera
Connection TypeWired - BNC video
Sensor & Detectorbuilt-in 1/3" SONY Effio CCD, color DSP
MAX Resolution700 TV Lines
Lens Type3.6mm wide view angle
Night VisionYes
PowerDC 12V
Features• Buiot-in 1/3 inch SONY Effio CCD, color DSP image sensor • Lens: f 3.6mm wide view angle • Built in 28 infrared illuminators for night vision • High resolution:700TV Line •Weatherproof aluminum housing for indoor or outdoor application
Package ContentsCamera, Power Supply and Free Warning Sticker

Questions about this item

Will the 28 IR LEDs need replacement as they age?

The 28 infrared illuminators are built into the sealed housing and are not user-serviceable; they typically last for years of nightly operation.

What limits continuous recording at 700 TV lines over the BNC output?

The analog BNC video signal is limited by the 700 TV line sensor resolution and the connected DVR's recording capability.

How warm does the aluminum housing get during all-day outdoor use on 12 V DC?

The weatherproof aluminum housing dissipates heat from the CCD and 28 IR LEDs, staying within safe operating temperatures on the supplied 12 V 500 mA adapter.
