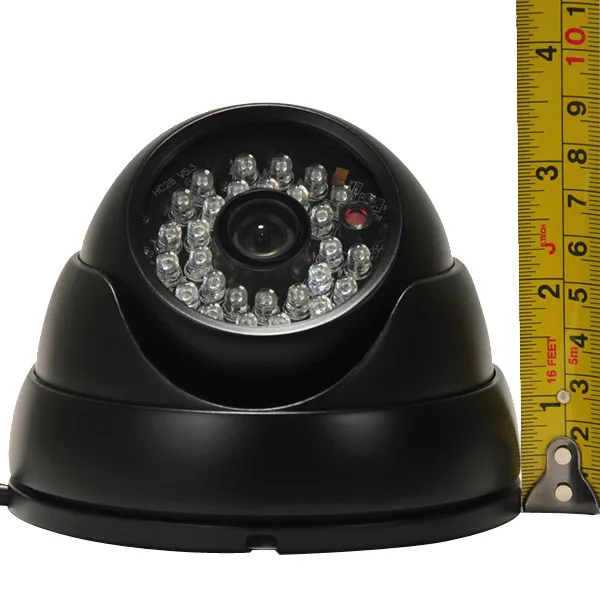

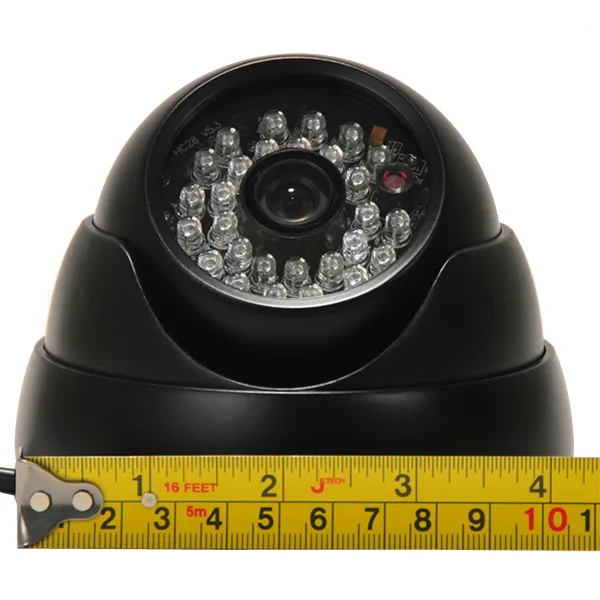

Black vandal-proof dome camera with 28 IR LEDs and 3.6mm lens

VideoSecu

VideoSecu VD3HBE 700TVL 3.6mm 28 IR LED cctv camera

SKU CH-V9Y7-X7F7E

Wired analog dome camera with a 1/3″ Sony Effio CCD delivering 700 TV lines, a 3.6 mm wide-angle lens and 28 IR LEDs for day/night surveillance

  • ColorBlack
  • Camera TypeDay/Night Camera
  • TypeSurveillance Camera
  • Connection TypeWired - BNC video
  • Sensor & Detectorbuilt-in 1/3" SONY Effio CCD, color DSP, automatic CDS senso
  • MAX Resolution700 TV Lines
  • 700 TVL resolution delivers sharp analog images using Sony Effio CCD
  • 28 IR LEDs provide night vision up to 24 metres in total darkness
  • 6 mm wide-angle lens covers large areas with a single camera
  • Weatherproof aluminium housing withstands outdoor conditions for 24/7 surveillance
  • Wired BNC connection ensures stable video feed to any compatible DVR

Outdoor day/night CCTV camera

The VideoSecu VD3HBE is a wired analog dome camera built for continuous surveillance. It uses a 1/3" Sony Effio CCD sensor and color DSP to deliver 700 TV lines of horizontal resolution. Twenty-eight infrared LEDs provide night vision, automatically switching from color daytime video to black-and-white in low light. The weatherproof aluminum housing supports wall or ceiling mounting.

Analog BNC limits and compatibility

This camera outputs standard-definition video over a coaxial BNC connection and requires a compatible DVR, monitor and cabling that are not included. It will not work with HD-SDI, HD-CVI, HD-TVI, AHD or IP network recorders. The 3.6 mm fixed wide-angle lens offers a set field of view that cannot be adjusted remotely. Maximum resolution is capped at 700 TV lines by the analog format.

Simple wired installation

A 12 V DC power supply is included, so only a single coaxial run and power connection are needed at each mounting point. The dome base accepts ceiling or wall brackets without special tools. Common issues include ground-loop interference on long cable runs, voltage drop if the 12 V feed is undersized, and water ingress if the cable gland is not sealed after wiring.

Highlights

  • 700 TVL resolution delivers sharp analog images using Sony Effio CCD
  • 28 IR LEDs provide night vision up to 24 metres in total darkness
  • 6 mm wide-angle lens covers large areas with a single camera
  • Weatherproof aluminium housing withstands outdoor conditions for 24/7 surveillance
  • Wired BNC connection ensures stable video feed to any compatible DVR

Specifications

BrandVideoSecu
ModelVD3HBE
ColorBlack
Camera TypeDay/Night Camera
TypeSurveillance Camera
Connection TypeWired - BNC video
Sensor & Detectorbuilt-in 1/3" SONY Effio CCD, color DSP, automatic CDS sensor
MAX Resolution700 TV Lines
Lens Type3.6mm wide angle
Night VisionYes
PowerDC 12V
Features• Image sensor: built-in 1/3" SONY Effio CCD • Horizontal resolution: 700 TV lines • Lens: f 3.6mm wide angle • IR illuminators: 28 LEDs for night vision • Can be mounted on ceiling or wall • Weatherproof aluminum housing for indoor or outdoor application
Package ContentsDome Camera, Power Supply, Free Warning Sticker

Questions about this item

Should I pick this 700TVL model or a lower-resolution analog camera?

Choose this 700TVL model when you need the highest horizontal detail available in standard analog CCTV; lower-resolution cameras will not match its 700 TV lines of picture clarity.

What does 700 TV lines actually give me on a monitor?

700 TV lines means the camera resolves fine horizontal detail across the picture width, producing sharper facial features and license-plate characters than cameras rated at lower TVL counts.

The camera uses a BNC connection — what does that limit?

The BNC video output caps the signal to standard analog composite video, so the 700TVL resolution cannot be carried over HD-SDI, IP or HDMI without a separate converter.
