VideoSecu

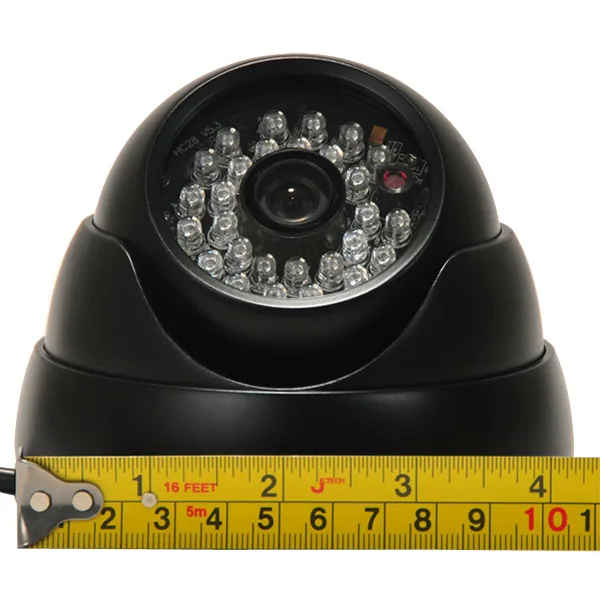

VideoSecu VD22FMKC-N1 480 TVL 3.6mm 28 IR LED Dome Camera
Analog dome camera with 480 TVL Sony CCD, 3.6 mm lens and 28 IR LEDs for day/night surveillance
- ColorBlack
- Network CameraNo
- TypeInfrared Camera
- Connection TypeWired - BNC video
- Sensor & Detectorbuilt-in 1/3" Sony Super HAD CCD
- MAX Resolution480 TV Lines
- Sony Super HAD CCD sensor delivers 480 TV Lines resolution
- 6 mm wide-angle lens covers broad indoor or outdoor scenes
- 28 IR LEDs provide night vision up to 22 metres
- Manual pan and tilt adjusts view without disassembly
- Die-cast aluminium housing rated for indoor and outdoor use
Analog dome camera for legacy DVR systems
This wired dome camera uses a 1/3 inch Sony Super HAD CCD sensor to deliver 480 TV Lines of resolution through a BNC connection. It is built for installers maintaining or expanding an existing analog CCTV installation rather than for new IP-based deployments. The 3.6mm wide-angle lens and 28 IR LEDs provide day/night coverage in a weatherproof housing suitable for indoor or outdoor mounting.
Bundled power supply cable

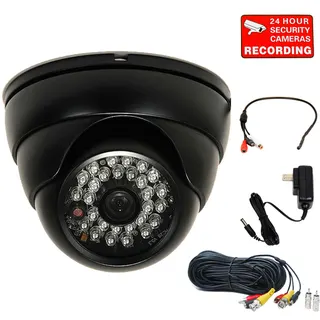

The package includes a DC 12V power supply, a combined audio-video-power cable, and a mini microphone so that both video and sound can be run over a single cable run to the recorder. A warning sticker is also supplied for site signage. These accessories remove the need to source separate power adapters or audio wiring when adding the camera to a compatible DVR.
Verify BNC analog DVR compatibility before ordering
This camera requires a traditional analog DVR with BNC inputs and will not function with HD-TVI, AHD, CVI, or IP recorders. It must be paired with a monitor or recording system that accepts standard composite video over coaxial cable. Buyers without an existing analog DVR infrastructure should not purchase this unit.
Highlights
- Sony Super HAD CCD sensor delivers 480 TV Lines resolution
- 6 mm wide-angle lens covers broad indoor or outdoor scenes
- 28 IR LEDs provide night vision up to 22 metres
- Manual pan and tilt adjusts view without disassembly
- Die-cast aluminium housing rated for indoor and outdoor use
Specifications
| Brand | VideoSecu |
|---|---|
| Model | VD22FMKC-N1 |
| Color | Black |
| Network Camera | No |
| Type | Infrared Camera |
| Connection Type | Wired - BNC video |
| Sensor & Detector | built-in 1/3" Sony Super HAD CCD |
| MAX Resolution | 480 TV Lines |
| Lens Type | 3.6mm Wide Angle |
| Night Vision | Yes |
| Power | DC 12V |
| Features | • Image Sensor: 1/3" Sony Super HAD CCD • Horizontal Resolution: 480 TV Lines• Lens: 3.6mm Wide Angle • IR Illuminators: 28 IR LEDs • Advanced Day Night Mode: color images during daytime / black and white images at night • Can be mounted on ceiling or wall •Vandal proof and weatherproof metal housing for outdoor/indoor applications |
| Package Contents | (1) Dome Camera, (1) Power Supply, (1) Audio Video Power Cable, (1) Mini-microphone and Free Warning Sticker |
Questions about this item
Will the 28 IR LEDs or the Sony Super HAD CCD sensor need replacement after extended outdoor use?
The 28 IR LEDs provide night illumination and the 1/3" Sony Super HAD CCD captures video; both are sealed inside the weatherproof dome and have no user-serviceable parts.
What limits continuous recording — the BNC cable length or the 12 V DC power supply?
The camera draws 12 V DC through the supplied Audio Video Power Cable; voltage drop over long BNC runs is the first practical limit on sustained operation.
Does the die-cast aluminum dome get hot or make noise during all-day operation?
The dome has no fan or moving parts, so it runs silently; the aluminum housing dissipates the modest heat from the 28 IR LEDs and CCD sensor without becoming hot to the touch.
