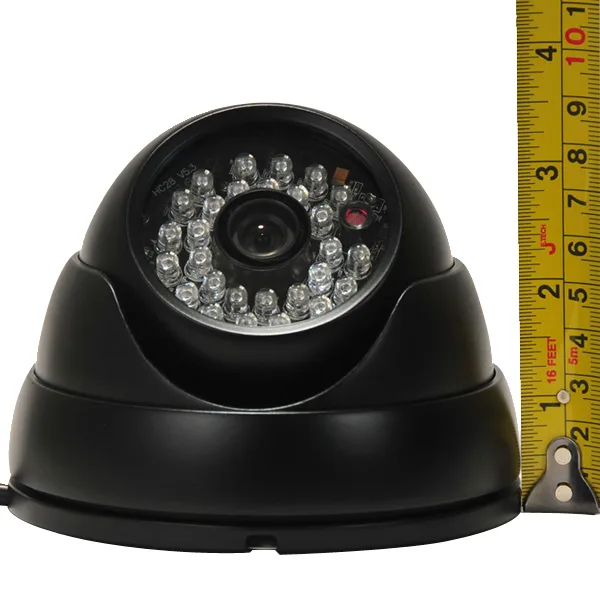

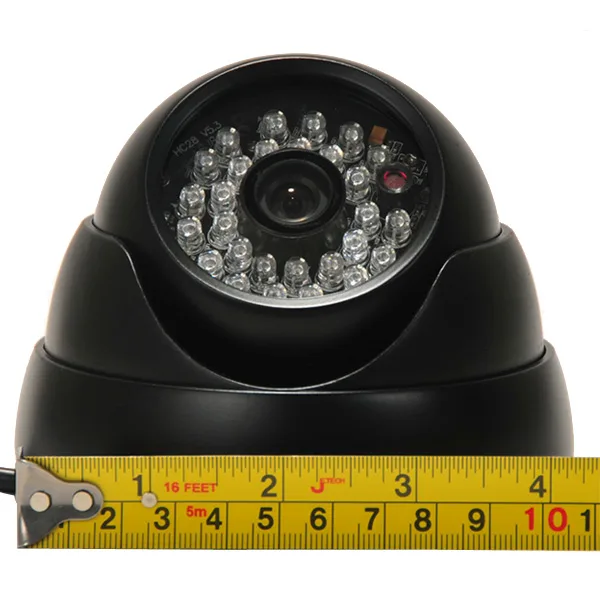

Black dome camera with 28 IR LEDs and 3.6mm lens

VideoSecu

VideoSecu VD22FKC Analog Dome Camera 480 TVL 3.6mm 28 IR LEDs

SKU CH-HZX1-H4F1R

Wired analog dome camera with a 1/3″ Sony Super HAD CCD sensor, 480 TVL resolution, 3.6 mm wide-angle lens and 28 IR LEDs for day/night surveillance

  • ColorBlack
  • Camera TypeDay/Night Camera
  • TypeDome Camera
  • Connection TypeWired - BNC video
  • Sensor & Detectorbuilt-in 1/3" Sony Super HAD CCD
  • MAX Resolution480 TV Lines
  • Day/night colour switching with 1/3" Sony Super HAD CCD
  • 480 TVL resolution from 3.6mm wide-angle lens
  • 28 IR LEDs give 0.0 Lux night vision
  • Vandal-proof weatherproof metal housing for outdoor use
  • Manual pan/tilt adjustment without disassembly

Application fit

This analog dome camera suits installers expanding or repairing a standard-definition CCTV system that records over coaxial cable to a DVR. It will not work with IP network recorders, HD-TVI, HD-CVI or AHD high-definition formats, so buyers building a new megapixel system should look elsewhere.

Deciding specification

The camera delivers 480 TV lines of horizontal resolution through a 3.6 mm wide-angle lens via a BNC video connection, which determines whether it matches the capabilities of the existing DVR and cabling.

Highlights

  • Day/night colour switching with 1/3" Sony Super HAD CCD
  • 480 TVL resolution from 3.6mm wide-angle lens
  • 28 IR LEDs give 0.0 Lux night vision
  • Vandal-proof weatherproof metal housing for outdoor use
  • Manual pan/tilt adjustment without disassembly

Specifications

BrandVideoSecu
ModelVD22FKC
ColorBlack
Camera TypeDay/Night Camera
TypeDome Camera
Connection TypeWired - BNC video
Sensor & Detectorbuilt-in 1/3" Sony Super HAD CCD
MAX Resolution480 TV Lines
Lens Type3.6mm Wide Angle
Night VisionYes
PowerDC 12V
Features• Image Sensor: 1/3" Sony Super HAD CCD • Horizontal Resolution: 480 TV Lines• Lens: 3.6mm Wide Angle • IR Illuminators: 28 IR LEDs • Advanced Day Night Mode: color images during daytime / black and white images at night • Can be mounted on ceiling or wall •Vandal proof and weatherproof metal housing for outdoor/indoor applications
Package Contents(1) Dome Camera, (1) Power Supply, (1) Video Power Extension Cable and Free Warning Sticker

Questions about this item

What mounting surfaces and hardware does the 3.6mm dome camera require?

The camera mounts on ceiling or wall using its die-cast aluminum housing; the package includes the dome camera, power supply, video power extension cable and a warning sticker.

How do I connect the BNC video and DC 12V power, and what step is often missed?

Plug the BNC connector into the DVR video input and the DC 12V plug into the supplied power supply; the step often missed is verifying the DVR records analog 480 TVL signals before final mounting.

When will the 28 IR LEDs or Sony Super HAD CCD sensor need replacement?

The 28 IR LEDs illuminate at 0.0 lux for night vision; replace them when night footage becomes dim or uneven, and replace the camera if the CCD sensor develops dead pixels or colour failure.
