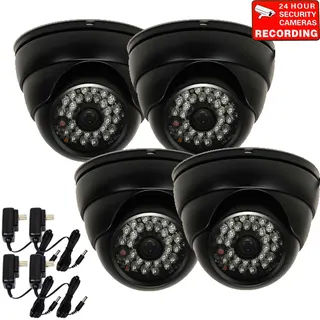

Four black dome cameras with 28 IR LEDs each, 3.6mm wide-angle lenses, wired BNC connections

VideoSecu

VideoSecu VD22FK4-N1 480TVL 3.6mm 28IR 4× cctv camera

SKU CH-YYJP-C9594

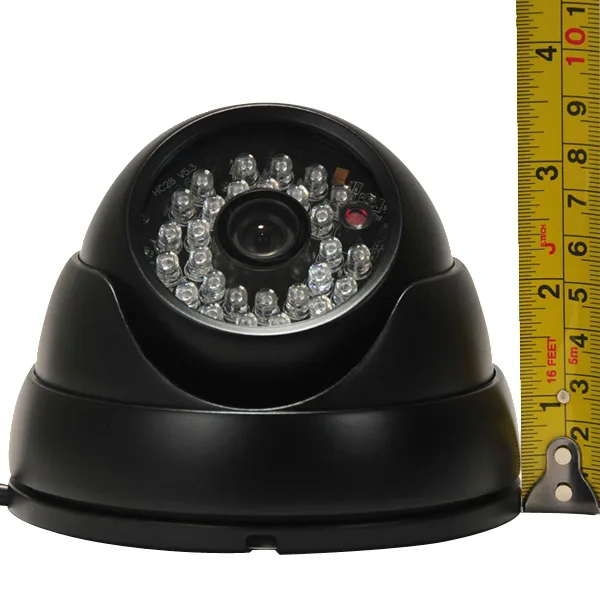

Four analog dome cameras with 480 TVL resolution, 3.6 mm wide-angle lenses and 28 IR LEDs each for day/night surveillance

  • ColorBlack
  • Network CameraNo
  • TypeInfrared Camera
  • Connection TypeWired - BNC video
  • Sensor & Detectorbuilt-in 1/3" Sony Super HAD CCD
  • MAX Resolution480 TV Lines
  • Weatherproof die-cast aluminium housing protects the camera outdoors
  • 1/3" Sony Super HAD CCD sensor delivers 480 TV Lines resolution
  • 6 mm wide-angle lens covers a broad viewing area
  • 28 IR LEDs provide automatic day/night vision switching
  • Four cameras and four power supplies included in one kit

Four-camera analog CCTV kit

This kit supplies four wired dome cameras that connect through BNC cables to a traditional analog DVR. Each unit uses a 1/3-inch Sony Super HAD CCD sensor and a fixed 3.6mm wide-angle lens to capture 480 TV lines of resolution. Twenty-eight infrared LEDs per camera enable black-and-white night vision. The package includes four 12 V DC power supplies and a warning sticker.

Suits owners of legacy DVR systems

The cameras are designed for installers or homeowners who already operate an older analog recorder and need direct replacements. They will not function with modern HD or IP recorders, nor do they offer wireless or Wi-Fi connectivity. Buyers building a new surveillance system or expecting network-managed features should choose a different technology.

Verify DVR and cabling compatibility

Confirm that your existing recorder accepts standard analog BNC inputs and supplies 12 V DC power to each camera. Check that the coaxial cable runs can reach every mounting location without signal loss. Ensure the DVR channel count matches the four cameras supplied in this kit.

Highlights

  • Weatherproof die-cast aluminium housing protects the camera outdoors
  • 1/3" Sony Super HAD CCD sensor delivers 480 TV Lines resolution
  • 6 mm wide-angle lens covers a broad viewing area
  • 28 IR LEDs provide automatic day/night vision switching
  • Four cameras and four power supplies included in one kit

Specifications

BrandVideoSecu
ModelVD22FK4-N1
ColorBlack
Network CameraNo
TypeInfrared Camera
Connection TypeWired - BNC video
Sensor & Detectorbuilt-in 1/3" Sony Super HAD CCD
MAX Resolution480 TV Lines
Lens Type3.6mm Wide Angle
Night VisionYes
PowerDC 12V
Features• Image Sensor: 1/3" Sony Super HAD CCD • Horizontal Resolution: 480 TV Lines• Lens: 3.6mm Wide Angle • IR Illuminators: 28 IR LEDs • Advanced Day Night Mode: color images during daytime / black and white images at night • Can be mounted on ceiling or wall •Vandal proof and weatherproof metal housing for outdoor/indoor applications
Package Contents(4) Dome Camera, (4) Power Supply and Free Warning Sticker

Questions about this item

What type of recorder is required to use these four BNC cameras?

A traditional analog DVR that accepts BNC video inputs is required; the cameras will not work with HD or IP recorders.

Will the 3.6 mm wide-angle lens on these cameras match the field of view of my existing analog cameras?

The 3.6 mm lens gives a wide-angle view; compare its angle with your current cameras' lenses to see if coverage aligns.

How can I confirm the 28 IR LEDs are providing night vision after installation?

In low light the image should switch to black-and-white and show clear illumination up to the IR range.
