VideoSecu VD22F 480 TVL 3.6mm 28 IR LED cctv camera

Vandal-Proof Dome for Analog Systems

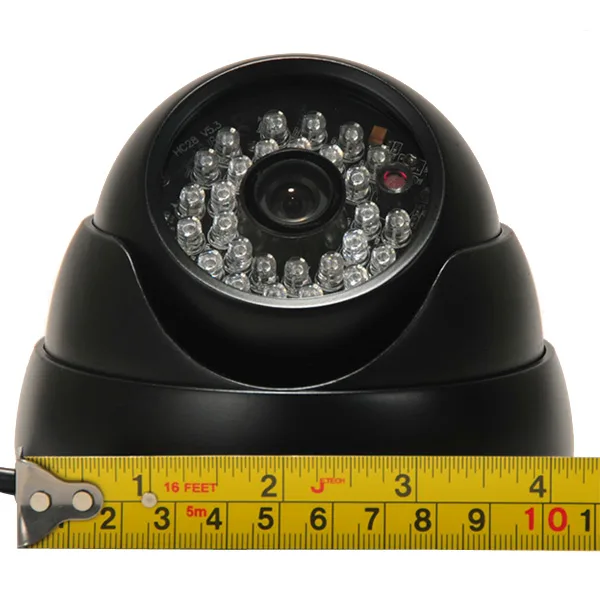

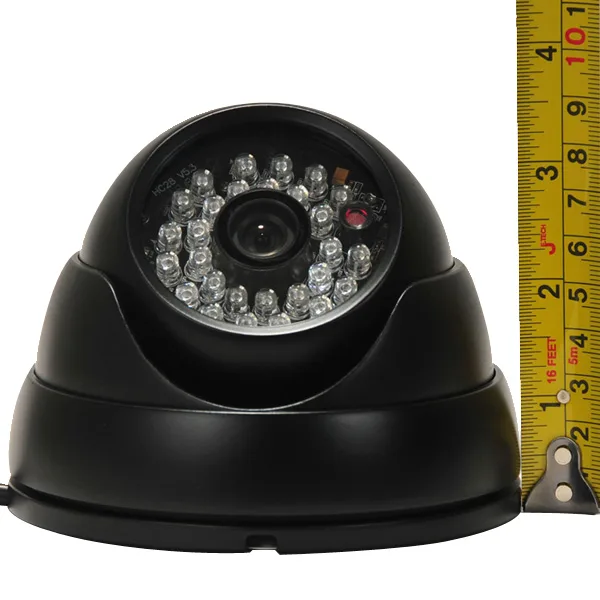

The VideoSecu VD22F is a wired analog dome camera built around a 1/3-inch Sony Super HAD CCD sensor that delivers 480 TV lines of horizontal resolution. Its 3.6mm wide-angle lens and 28 IR LEDs provide day/night coverage with automatic colour-to-monochrome switching. The die-cast aluminium housing is rated vandal-proof and weatherproof for indoor or outdoor mounting on a wall or ceiling. It requires a separate DVR, cabling and monitor to operate.

Upgrade Path from Lower-Resolution Analog

This camera replaces older analog domes that capture fewer than 480 TV lines or lack integrated IR illumination. The jump is worthwhile when you need wider 3.6mm coverage and 28 LEDs for low-light scenes without adding external illuminators. It will not work with HD or IP recorders, so buyers moving to digital systems should choose a different technology. The manual pan/tilt adjustment helps fine-tune the view after the main mounting is complete.

Simple BNC Install with Common Pitfalls

Installation uses a standard BNC video connection and a DC 12 V power supply that is included in the box. Mount the base to the ceiling or wall, connect the video and power leads, then adjust the lens angle by hand before locking it down. The most frequent issues are mismatched DVR formats, insufficient cable runs for the wired link, and forgetting that the camera cannot function as a standalone wireless or network device.
