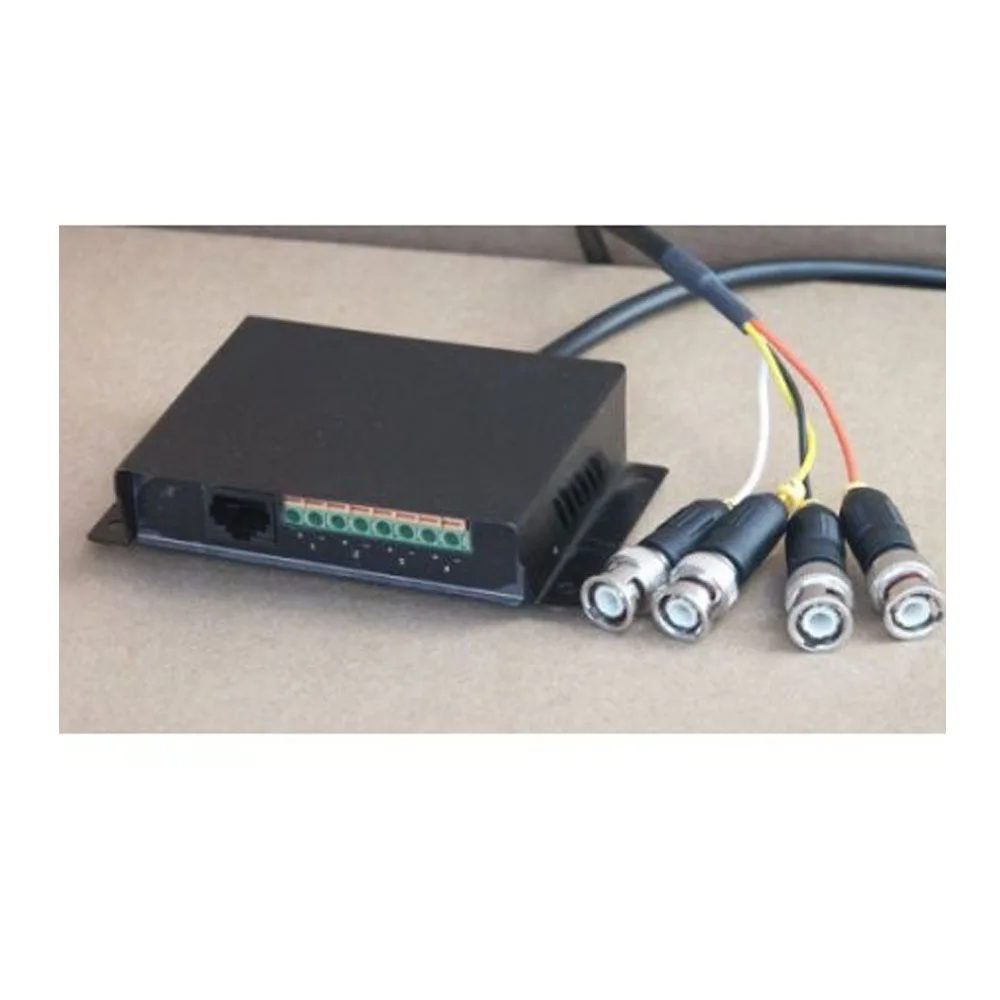

Small black box with four BNC cables and an RJ45 port

VideoSecu

VideoSecu VB413 4CH BNC Passive Video Balun Transceiver surveillance accessory

SKU CH-RS55-X7KKN

Transmits four composite video signals over a single Cat5 cable without external power

  • SpecificationsBaseband (composite) signals of any type are supported
  • Features•Send or receive quality video over ordinary twisted pair ca
  • Package Contents4 channel Video Balun
  • Transmits four video signals over one CAT5 cable
  • Passive design needs no external power supply
  • Rejects EMI and RFI better than coax
  • Works as transmitter or receiver for flexible installs
  • Includes four-foot BNC leads for quick camera or DVR hookup

Four-channel passive video balun

The VideoSecu VB413 transmits four composite video signals over a single CAT5 cable using unshielded twisted-pair wiring. It operates without external power and provides better EMI and RFI rejection than coaxial cable. Each channel includes a four-foot BNC extension cable for direct connection to cameras, DVRs or multiplexers. RJ45 and push-pin terminals offer flexible termination options.

Replaces multiple coaxial runs

Installers can consolidate four separate coax cables into one inexpensive UTP run while retaining baseband composite quality. The passive design eliminates the need for power supplies at the balun locations, reducing points of failure. The upgrade is worthwhile when existing twisted-pair infrastructure is available or when new cable pulls favour thinner, multi-service UTP over bulky coax bundles.

Suits multi-camera CCTV installs

This unit fits projects that need four video channels over a single CAT5 link without active electronics. Builders who require longer runs than passive UTP supports, or who need IP-networked video rather than analogue composite, should look at active transceivers or network encoders instead.

Highlights

  • Transmits four video signals over one CAT5 cable
  • Passive design needs no external power supply
  • Rejects EMI and RFI better than coax
  • Works as transmitter or receiver for flexible installs
  • Includes four-foot BNC leads for quick camera or DVR hookup

Specifications

BrandVideoSecu
ModelVB413
SpecificationsBaseband (composite) signals of any type are supported
Features•Send or receive quality video over ordinary twisted pair cable •Better EMI and RFI interference rejection than coaxial cable •Support 4 video signals simultaneously through one CAT5 cable •Can be used as a Receiver and Transmitter •Passive devices - do not require power •BNC Female with 4 feet extension cable to Camera, DVR or Multiplexers •Select RJ45 or push pin terminal inputs/outputs •Video can be run in the same cable with telephone, computer signals and power •4 feet cable with 4 BNC Male connectors make the installation faster and easy
Package Contents4 channel Video Balun

Questions about this item

How many BNC connectors does the VB413 provide for camera or DVR connections?

The unit includes four BNC male connectors on a four-foot extension cable for direct connection to cameras, DVRs or multiplexers.

Does the VB413 require an external power supply to operate?

No, it is a passive device that transmits video over UTP cable without any power source.

Are the RJ45 and push-pin terminals on the VB413 interchangeable for the same cable run?

Yes, you can select either the RJ45 jack or the push-pin terminals for each channel, but only one connection type is used per channel at a time.
