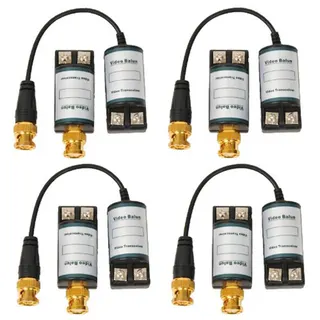

Four pairs of small passive CCTV baluns with BNC male connectors and terminal blocks

VideoSecu

VideoSecu VB201P4 4-pair passive CCTV balun BNC to terminal block 1000ft mono 800ft colour

SKU CH-BDE0-1VRZS

Four passive balun pairs send monochrome video up to 1000 feet or colour up to 800 feet over Cat 5 cable without external power

  • TypeOther
  • Specifications• Transmits monochrome video signal up to 1,000 feet or colo
  • Features•Better EMI and RFI interference rejection than coaxial cabl
  • Package Contents4 pairs passive video balun
  • Passive design needs no power supply
  • Monochrome video reaches 1000 feet over UTP
  • Colour video reaches 800 feet over UTP
  • BNC male to terminal block for quick wiring
  • Better EMI and RFI rejection than coaxial cable

4-pair passive CCTV balun set

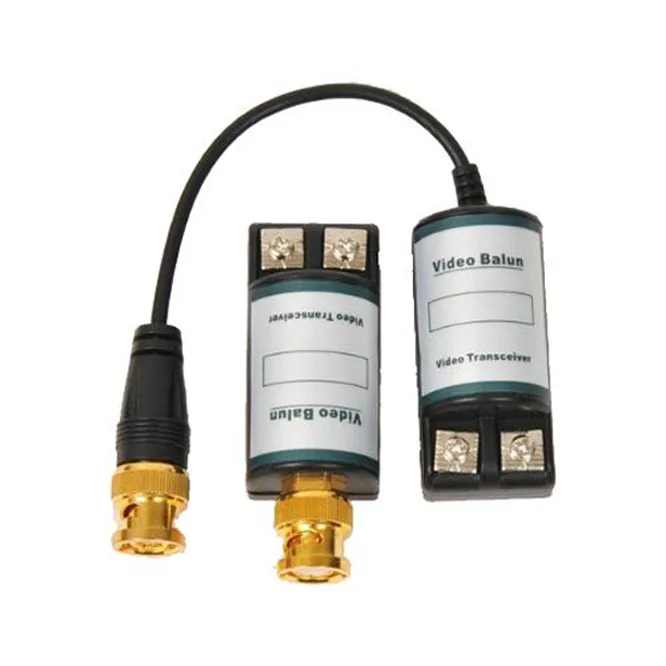

This kit contains four pairs of passive video baluns that convert a 75 ohm BNC connection to a terminal block for Category 5 twisted-pair cable. Installers use them to run analog CCTV camera signals over structured UTP wiring instead of coaxial cable. The passive design needs no external power supply at either end.

Passive operation with interference rejection

Because the units are completely passive they draw zero power and add no active noise to the signal path. The twisted-pair medium provides better EMI and RFI rejection than traditional coaxial cable in typical building environments. No power adapters or transformers are required at the camera or recorder side.

1000 ft mono and 800 ft colour range

Monochrome video can be transmitted up to 1000 feet and colour video up to 800 feet over Cat 5 or better cable. The baluns support NTSC, PAL and SECAM analog formats and connect via a BNC male plug to a screw terminal block for fast installation. Distances beyond these figures are not supported by the passive design.

Highlights

  • Passive design needs no power supply
  • Monochrome video reaches 1000 feet over UTP
  • Colour video reaches 800 feet over UTP
  • BNC male to terminal block for quick wiring
  • Better EMI and RFI rejection than coaxial cable

Specifications

BrandVideoSecu
ModelVB201P4
TypeOther
Specifications• Transmits monochrome video signal up to 1,000 feet or color up to 800 feet• Passive devices do not require power• BNC Male to terminal block, fast installation
Features•Better EMI and RFI interference rejection than coaxial cable•Lower cable cost: The cost of baluns plus Cat 5 cable may less than traditional wire. Especially for high cost Plenum Coax cables•Utilize existing wiring: already have structured cabling systems, simply connect a balun at each end of the cable run to transmit your signal
Package Contents4 pairs passive video balun

Questions about this item

How do I connect the BNC male end to the terminal block without soldering?

Strip each Cat 5 wire, insert into the screw terminals matching polarity, and tighten; the BNC male plugs directly into the camera or DVR — no soldering required.

Will the passive balun itself degrade or need scheduled replacement?

The passive VB201P4 has no active components or power supply, so it does not wear out; only the Cat 5 cable or connectors would need attention if damaged.

At what distance does colour video quality drop off first on a 1000 ft run?

Colour transmission is rated to 800 ft; beyond that the signal remains for monochrome up to 1000 ft, so colour loss is the first limit encountered.
