A pair of small rectangular plastic baluns, each with a BNC male connector and a terminal block, light grey finish

VideoSecu

VideoSecu VB201 Passive Video Balun Pair BNC to Terminal Block

SKU CH-BMTD-FHXXR

A passive pair that sends monochrome video up to 1000 feet or colour up to 800 feet over Cat5 cable using BNC male to terminal block connections.

  • TypeOther
  • Specifications• Transmits monochrome video signal up to 1,000 feet or colo
  • Features•Better EMI and RFI interference rejection than coaxial cabl
  • Package Contentsone pair of passive video balun
  • Transmit monochrome video up to 1000 feet over twisted pair
  • Send colour video up to 800 feet without signal boosters
  • Operate entirely without power thanks to passive design
  • Reject EMI and RFI better than standard coaxial cable
  • Connect BNC male to terminal blocks for quick installation

Passive Video Balun Pair for CCTV

The VideoSecu VB201 is a passive transceiver pair that carries analog video over Cat 5 or better twisted-pair cable. Each unit converts a BNC male connector to a terminal block for quick wiring. No external power is required, making installation simple for new or retrofit surveillance runs.

Transmission Distance Over UTP

Monochrome signals travel up to 1000 feet and color signals up to 800 feet on unshielded twisted-pair wire. The passive design rejects EMI and RFI better than 75 ohm coaxial cable while lowering overall cable cost. Works with NTSC, PAL and SECAM cameras, multiplexers, switchers and monitors.

Suited For Analog Camera Installers

Installers extending analog CCTV links over structured cabling will benefit from the power-free operation and interference rejection. Buyers needing amplified reach beyond 1000 feet or digital IP camera connectivity should look at active or network-based alternatives instead.

Highlights

  • Transmit monochrome video up to 1000 feet over twisted pair
  • Send colour video up to 800 feet without signal boosters
  • Operate entirely without power thanks to passive design
  • Reject EMI and RFI better than standard coaxial cable
  • Connect BNC male to terminal blocks for quick installation

Specifications

BrandVideoSecu
ModelVB201
TypeOther
Specifications• Transmits monochrome video signal up to 1,000 feet or color up to 800 feet• Passive devices do not require power• BNC Male to terminal block, fast installation
Features•Better EMI and RFI interference rejection than coaxial cable•Lower cable cost: The cost of baluns plus Cat 5 cable may less than traditional wire. Especially for high cost Plenum Coax cables•Utilize existing wiring: already have structured cabling systems, simply connect a balun at each end of the cable run to transmit your signal

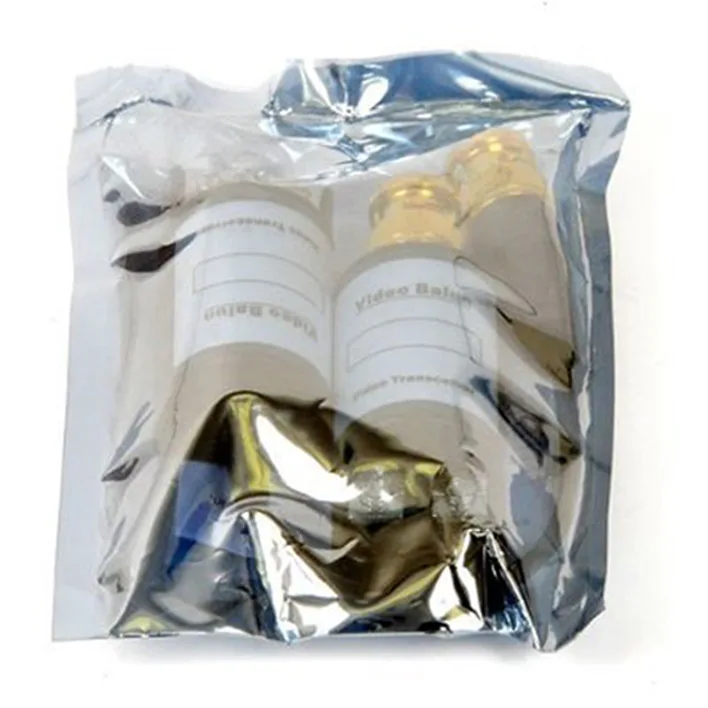

Package Contentsone pair of passive video balun

Questions about this item

How far will a colour camera signal travel through the VB201 on Cat 5 cable?

The balun pair carries colour video up to 800 feet over Category 5 or better twisted pair.

Does the VB201 need a power supply to operate?

No, it is a passive device that works without any external power.

What connectors are on each balun for the camera and the cable?

Each unit has a BNC male plug for the camera side and a terminal block for the twisted-pair wiring.
