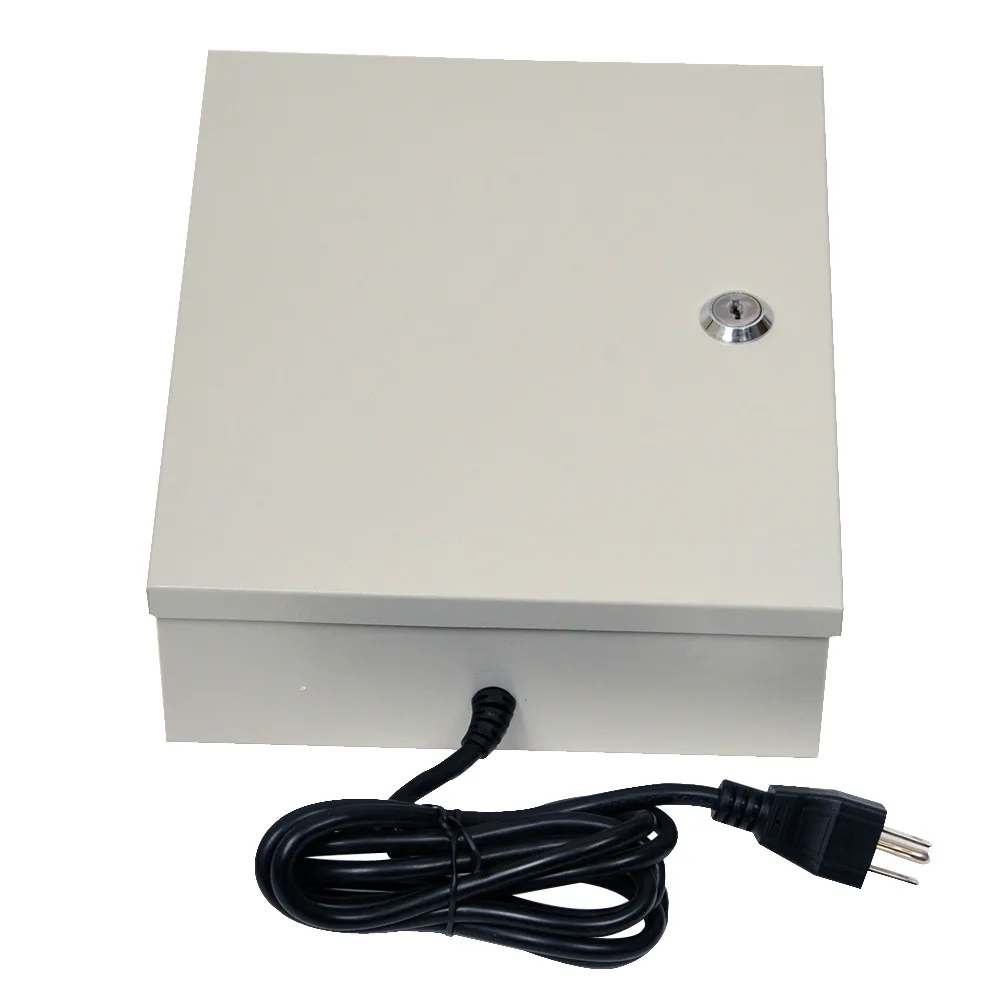

Metal CCTV power supply box with nine DC output pairs and key lock

VideoSecu

VideoSecu PWD91P 9-channel 12 V CCTV power supply box

SKU CH-ZVNM-YYBDQ

Distributes 12 V DC power to nine cameras through individually fused, surge-protected outlets with LED status indicators and a key-locked enclosure

  • TypePower Supply
  • Specifications• Support up 9 cameras, 9 Individually outlet pairs
  • Features• Output: DC 12V • Max. Amp: 1 Amp/Channel, 5 Amp total • An
  • Package Contents9 ports 12V DC power box, 6 feet AC power cord, key lock and
  • Powers nine cameras from one regulated 12 V supply
  • Each channel delivers 1 A with a 5 A total limit
  • Individual resettable fuses protect every output from overload
  • Main switch includes integral surge protection for the whole unit
  • LED indicators show channel status and flag shorted cameras

Nine-channel regulated CCTV power supply

The VideoSecu PWD91P delivers 12 V DC to as many as nine cameras through individually fused outlet pairs. Each channel is limited to 1 A with a 5 A total budget. A master switch with integral surge protection and per-channel resetable fuses protect connected equipment. Red LED indicators show short-circuit status at a glance.

Check camera current draw and cable reach

Verify that every camera operates at 12 V and draws no more than 1 A per channel so the 5 A aggregate limit is not exceeded. Confirm the supplied 6 ft AC cord reaches your mains outlet and that low-voltage runs to each camera stay within acceptable voltage-drop limits for the wire gauge you will use. Ensure the mounting location separates low-voltage and high-voltage wiring as the enclosure intends.

Installers needing fused.

This unit suits installers who want a single, key-locked enclosure with individual fuse protection and visible fault indication for up to nine cameras. It is not for systems requiring more than nine channels, higher per-channel current, or voltages other than 12 V DC. Buyers needing PoE injection, battery backup, or DIN-rail mounting should look at alternative power distribution methods.

Highlights

  • Powers nine cameras from one regulated 12 V supply
  • Each channel delivers 1 A with a 5 A total limit
  • Individual resettable fuses protect every output from overload
  • Main switch includes integral surge protection for the whole unit
  • LED indicators show channel status and flag shorted cameras

Specifications

BrandVideoSecu
ModelPWD91P
TypePower Supply
Specifications• Support up 9 cameras, 9 Individually outlet pairs
Features• Output: DC 12V • Max. Amp: 1 Amp/Channel, 5 Amp total • An internal built on/off switch • Main power switch with Integral Surge Protection • Individual Reset-able Fuses Output Protection • Individual LED power indication, the red light shorts indicator helps you to know which camera is not working • Separate spaces for low voltage and high voltage operation to protect from high voltage damages
Package Contents9 ports 12V DC power box, 6 feet AC power cord, key lock and 9x Pigtail

Questions about this item

What comes in the box and do I need to buy any cables or connectors separately?

The package includes the 9-channel 12 V power supply box, a 6-foot AC power cord, a key lock and nine pigtail connectors for camera hook-up.

How do I decide which channel capacity matches my camera count?

The unit provides nine individually fused outlet pairs, each rated for 1 A, with a 5 A total limit, so it suits installations of up to nine cameras.

What does the 12 V 5 A total rating mean when the box is powering my cameras?

It delivers a regulated 12 V DC supply; each channel can draw up to 1 A while the combined load across all nine channels must stay within 5 A.
