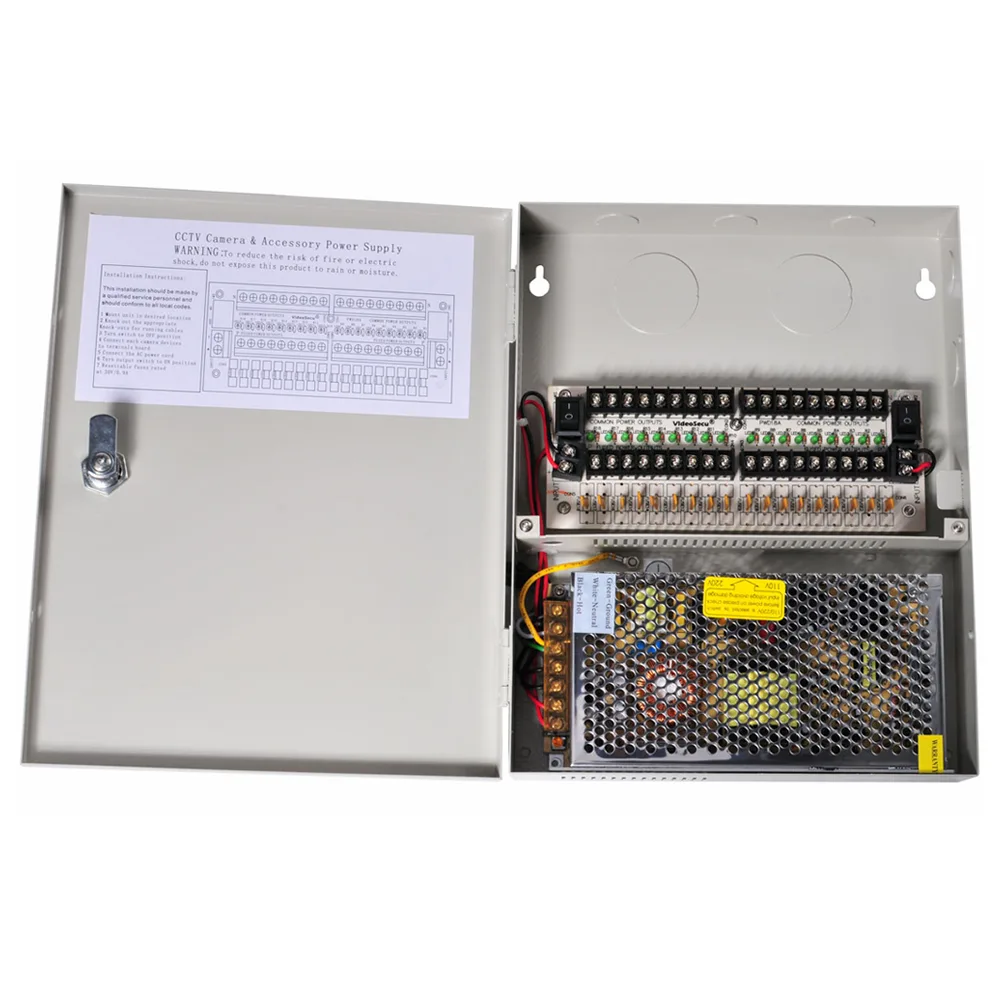

Metal enclosure with eighteen output terminals and individual LED indicators

VideoSecu

VideoSecu PWD18A-N1 18CH 12V DC Power Distribution Box

SKU CH-JVFX-8XTM8

An 18-channel 12V DC regulated power distribution box with individual LED indication, per-channel 0.55 Amp output protection and integral surge protection, supplying 10 Amp total across all ports

  • TypeOther
  • Specifications• Max. Output 0.55 Amp for each channel • Max. Output 10 Amp
  • Features• Individual LED power indication • Individual output protec
  • Package Contents18 channel power supply, 6ft power cord and locker
  • Individual LED shows each channel status
  • Each output fused for isolated protection
  • Built-in surge protection guards connected cameras
  • 55 A per channel up to 18 ports
  • 10 A total capacity across all outputs

18-channel 12 V DC power distribution box

The VideoSecu PWD18A-N1 supplies regulated 12 V DC power to up to eighteen CCTV cameras from a single enclosure. Each of the eighteen outputs is individually fused and surge-protected, and a dedicated LED shows the status of every channel. A six-foot mains cord and locker are included in the package.

Practical limits of the 12 V DC output

Every channel can deliver a maximum of 0.55 A, while the combined draw across all eighteen ports must not exceed 10 A. The box provides no voltage adjustment and no backup-battery provision, so cameras requiring higher per-channel current or a different voltage cannot be powered from this unit.

What to verify before ordering

Confirm that each camera operates on 12 V DC and draws 0.55 A or less, and that the total system current stays within the 10 A aggregate limit. Ensure the installation location can accommodate a hard-wired distribution panel and that local electrical codes permit its use without additional enclosures or circuit protection.

Highlights

  • Individual LED shows each channel status
  • Each output fused for isolated protection
  • Built-in surge protection guards connected cameras
  • 55 A per channel up to 18 ports
  • 10 A total capacity across all outputs

Specifications

BrandVideoSecu
ModelPWD18A-N1
TypeOther
Specifications• Max. Output 0.55 Amp for each channel • Max. Output 10 Amp for 18 ports total
Features• Individual LED power indication • Individual output protection • Integral surge protection
Package Contents18 channel power supply, 6ft power cord and locker

Questions about this item

How many cameras can I power from the 18-channel box?

The unit provides 18 regulated 12 V DC outputs, each fused at 0.55 A, so you can connect up to 18 cameras directly.

What does the 10 A total rating mean for my installation?

It caps the combined draw of all 18 channels at 10 A; even if every port is used, the sum of camera currents must stay below that limit.

What protection does the built-in surge protection actually stop?

Integral surge protection guards every output against transient voltage spikes that could damage connected cameras.
