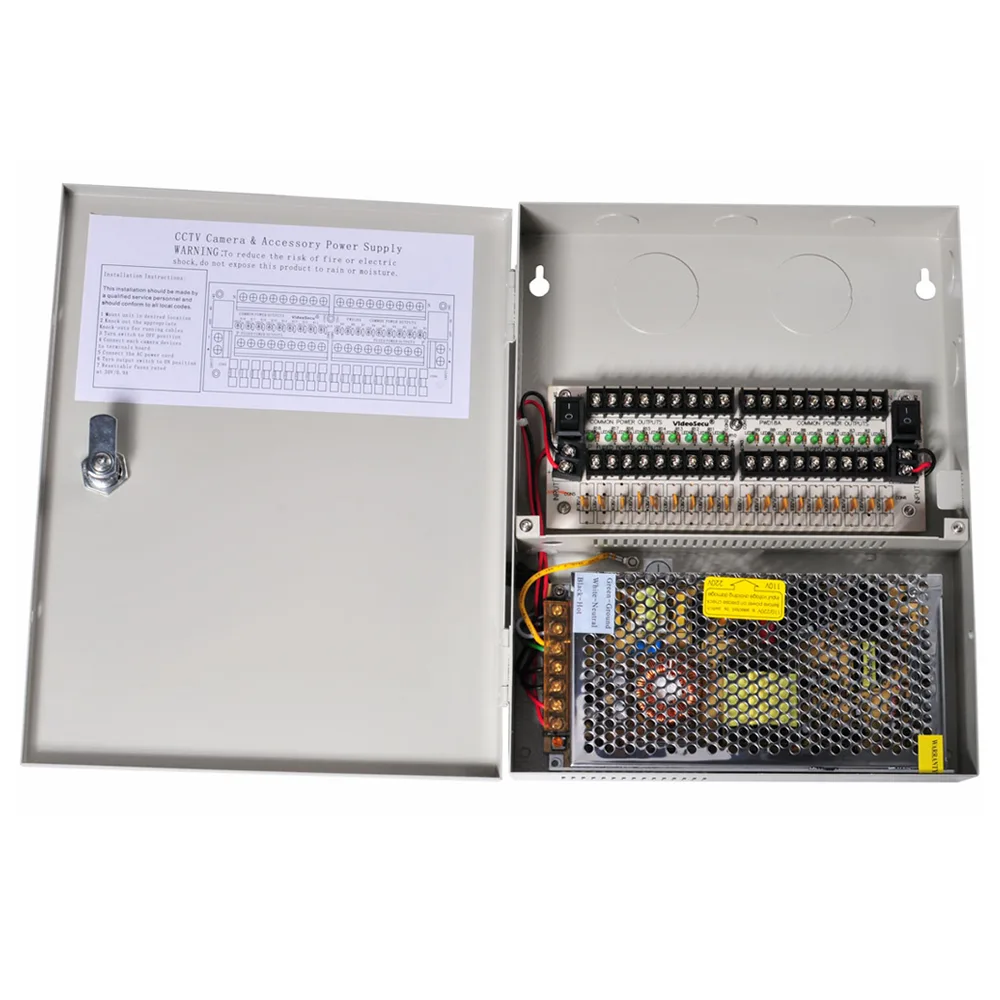

Metal enclosure with eighteen DC output terminals and LED indicators

VideoSecu

VideoSecu PWD18A 18CH 12V DC Power Distribution Box

SKU CH-VYQ3-EM64W

Distributes regulated 12 V DC power to 18 cameras with per-channel LED indicators, individual output protection and integral surge protection

  • TypePower Supply
  • Specifications• Max. Output 0.55 Amp for each channel • Max. Output 10 Amp
  • Features• Individual LED power indication • Individual output protec
  • Package Contents18 channel power supply, 6ft power cord and locker
  • Individual LED shows status per channel
  • Each output fused for individual protection
  • Surge protection shields connected cameras
  • 18 channels deliver 12 V DC regulated power
  • 10 A total capacity with 0.55 A per port

18-Channel 12V DC Power Distribution Box

This regulated power supply distributes 12V DC power to up to eighteen CCTV cameras from a single enclosure. It replaces multiple individual adapters with one professional panel. Each of the eighteen outputs is independently fused and surge protected. The unit includes a six-foot power cord and mounting locker.

Per-Channel and Total Current Limits

Every channel can deliver a maximum of 0.55 Amp, while the combined draw across all eighteen ports must not exceed 10 Amp. Builders must add the expected current of each connected camera and keep the sum within the total budget. Exceeding the per-channel or aggregate limit will trip the individual protection. An 18-channel box cannot serve installations that need more than eighteen powered devices.

0.55 Amp Maximum Per Channel

The single figure that decides fit is the 0.55 Amp ceiling on each output. Cameras drawing more than this on any single port require a different supply architecture. Installations with high-power PTZ units or heaters often exceed this threshold. Buyers who need more current per camera cannot use this distribution box.

Highlights

  • Individual LED shows status per channel
  • Each output fused for individual protection
  • Surge protection shields connected cameras
  • 18 channels deliver 12 V DC regulated power
  • 10 A total capacity with 0.55 A per port

Specifications

BrandVideoSecu
ModelPWD18A
TypePower Supply
Specifications• Max. Output 0.55 Amp for each channel • Max. Output 10 Amp for 18 ports total
Features• Individual LED power indication • Individual output protection • Integral surge protection
Package Contents18 channel power supply, 6ft power cord and locker

Questions about this item

Should I pick this 18-channel box or a smaller unit?

Choose this 18-channel box when you need to power up to 18 cameras from one location; each channel delivers up to 0.55 Amp and the whole unit caps at 10 Amp total.

What does the 10 Amp total limit mean once cameras are connected?

It means the combined draw of all connected cameras must stay at or below 10 Amp; with 18 channels each rated for 0.55 Amp you cannot run every channel at its maximum simultaneously.

What interface does the box use and what does it cap in practice?

It provides 12V DC regulated output through 18 individual ports, each capped at 0.55 Amp and the whole panel capped at 10 Amp total.
