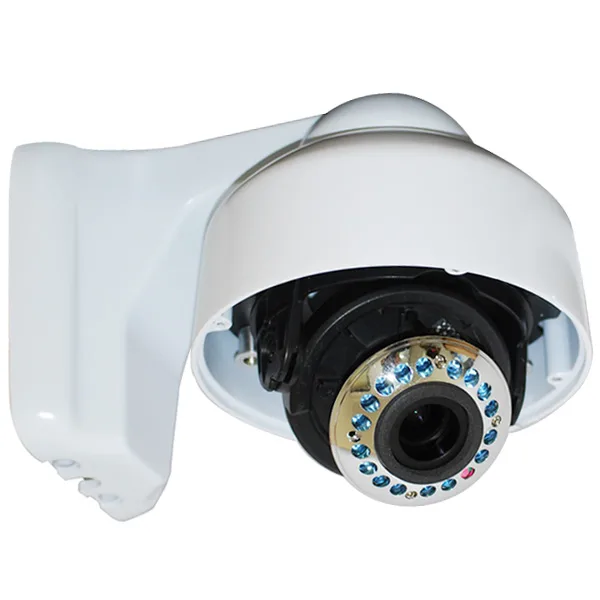

White dome security camera with 17 infrared LEDs and varifocal lens

VideoSecu

VideoSecu DMV23PKC CCTV Camera 700TVL 3.5~8mm 17IR

SKU CH-WRZC-3JMQH

Wired dome camera with 700 TVL resolution, 3.5–8 mm varifocal lens and 17 IR LEDs for day/night surveillance

  • ColorWhite
  • TypeInfrared Camera
  • Connection TypeWired - BNC video
  • Sensor & DetectorBuilt-in 1/3" Sony Effio CCD
  • MAX Resolution700TVL
  • Lens Type3.5~8 mm varifocal lens
  • Clear 700 TVL detail from Sony Effio CCD
  • Adjustable 3.5~8 mm varifocal lens covers wide or narrow views
  • 17 IR illuminators give night vision in darkness
  • Weatherproof housing protects camera indoors or outdoors
  • Complete kit includes power supply and video cable

VideoSecu DMV23PKC Analog CCTV Camera

This wired dome camera uses a 1/3" Sony Effio CCD sensor to deliver up to 700 TV lines of horizontal resolution. A 3.5~8 mm varifocal lens lets installers adjust the field of view between wide-angle and narrow coverage. Seventeen infrared illuminators provide black-and-white night vision when ambient light drops. The package includes a power supply and a combined video-power cable.

Suits Analog DVR Systems Only

The camera outputs a standard analog signal over a BNC connection, so it works with traditional CCTV DVRs that accept CVBS input. It requires a separate 12 V DC power source, which is supplied in the box. Buyers who need IP networking, PoE, or HD-SDI / HD-CVI / AHD formats should look at something else because this model does not support those interfaces. Wireless operation is also not available.

700 TVL Analog Resolution Decides Fit

The single specification that determines compatibility is the 700 TVL analog video output over BNC. A recorder must accept this exact signal type and resolution; otherwise the camera will not produce a usable picture. No digital stream, no higher-definition analog standard, and no network interface are present. Verify the DVR specification before purchase.

Highlights

  • Clear 700 TVL detail from Sony Effio CCD
  • Adjustable 3.5~8 mm varifocal lens covers wide or narrow views
  • 17 IR illuminators give night vision in darkness
  • Weatherproof housing protects camera indoors or outdoors
  • Complete kit includes power supply and video cable

Specifications

BrandVideoSecu
ModelDMV23PKC
ColorWhite
TypeInfrared Camera
Connection TypeWired - BNC video
Sensor & DetectorBuilt-in 1/3" Sony Effio CCD
MAX Resolution700TVL
Lens Type3.5~8 mm varifocal lens
Night VisionYes
PowerDC 12V
Features• Image sensor: Built-in 1/3" Sony Effio CCD • Horizontal resolution: 700 TVL • Infrared LEDs: 17 IR illuminators for night vision • Advanced day night mode: color images during daytime and black and white images at night • Lens: 3.5~8 mm varifocal lens • Three-dimensional bracket design in dome, making it easy and convenient to operate • Lens adjustment: horizontal rotation of 355 degrees and vertical rotation of 45 degrees • Weatherproof housing for outdoor or indoor applications • Cable management design: concealed wiring inside of bracket to protect the camera from vandalism
Package Contents1 x Dome Camera, 1 x Power Supply, 1 x Video Power Cable and Free Warning sticker

Questions about this item

What size mounting holes does the dome camera need?

The integrated heavy-duty bracket conceals wiring inside and provides the mounting points; use the supplied bracket to secure the dome to a wall or ceiling.

How do I connect the BNC video and DC 12 V power leads during installation?

Run the combined video-power cable from the camera to the DVR, plug the BNC connector into a video input and the DC barrel plug into the 12 V supply; the step often missed is seating the BNC twist-lock fully.

When should the 17 infrared illuminators be checked or replaced?

The 17 IR LEDs are rated for long life; inspect night-time footage annually and replace the camera if illumination drops below usable levels.
