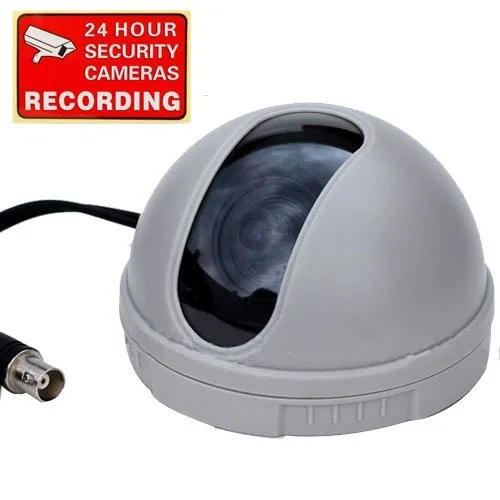

White dome CCTV camera with 3.6mm wide angle lens

VideoSecu

VideoSecu DM10W CCTV Camera 420TVL 3.6mm White

SKU CH-C4YB-CPSCV

A wired dome camera with a 3.6mm wide-angle lens, 420 TVL resolution, and full 360-degree horizontal plus 90-degree vertical adjustment for indoor surveillance

  • ColorWhite
  • Camera TypeDay Camera
  • TypeSurveillance Camera
  • Connection TypeWired - BNC video
  • Sensor & DetectorColor CCD
  • MAX Resolution420 TV Lines
  • Crisp 420 TVL resolution from Color CCD sensor
  • Wide 3.6mm lens captures broad indoor view
  • Full 360-degree horizontal and 90-degree vertical adjustment
  • Auto backlight compensation prevents silhouettes against bright backgrounds
  • Wired BNC connection for reliable analog DVR integration

Indoor Wired CCTV Camera

The VideoSecu DM10W is a white dome camera built for indoor surveillance. It uses a colour CCD sensor with a 3.6mm wide-angle lens to deliver 420 TV lines of horizontal resolution. The unit connects through a wired BNC video output and requires a separate DVR for recording. It is intended for installers who need a straightforward analogue camera for fixed indoor positions.

Analogue BNC Interface Limits

The camera outputs standard NTSC analogue video over a BNC connector, so it cannot connect to HD or IP recording equipment. A DC 12V power supply must be provided separately because the camera draws power over a dedicated cable. Minimum illumination is rated at 1.0 Lux at F1.2, meaning bright lighting is needed for usable night-time footage. Automatic white balance and backlight compensation handle routine lighting changes but cannot overcome very dark scenes.

Installation and Common Issues

The dome housing allows 360-degree horizontal and 90-degree vertical adjustment after mounting, letting the installer aim the lens precisely. Because the camera is not wireless, a coaxial video cable and a power cable must be routed to each location. A frequent issue is forgetting that the DVR is not included, so recording cannot start until a compatible analogue recorder is purchased and connected.

Highlights

  • Crisp 420 TVL resolution from Color CCD sensor
  • Wide 3.6mm lens captures broad indoor view
  • Full 360-degree horizontal and 90-degree vertical adjustment
  • Auto backlight compensation prevents silhouettes against bright backgrounds
  • Wired BNC connection for reliable analog DVR integration

Specifications

BrandVideoSecu
ModelDM10W
ColorWhite
Camera TypeDay Camera
TypeSurveillance Camera
Connection TypeWired - BNC video
Sensor & DetectorColor CCD
MAX Resolution420 TV Lines
Lens Type3.6mm wide angle
PowerDC 12V
Features• Image Sensor: Color CCD • Lens: 3.6mm wide angle • Horizontal Resolution: 420 TVL • Full 360-degree horizontal and 90-degree vertical adjustment
Package ContentsDome Camera, Free Warning Sticker

Questions about this item

Should I choose the 420 TVL model or a higher-resolution option?

This camera delivers 420 TV lines of horizontal resolution, which is standard for analog CCTV; higher-resolution analog models would require a matching DVR that supports the increased line count.

What does the 420 TVL figure mean once the camera is installed?

It provides 420 TV lines of horizontal detail, giving a clear standard-definition picture suitable for general indoor monitoring when paired with a compatible analog DVR.

Does the BNC connection limit the cable length I can run?

The wired BNC video output works with standard coaxial cable; typical analog runs reach several hundred feet without signal loss, but exact distance depends on cable quality and DVR sensitivity.
