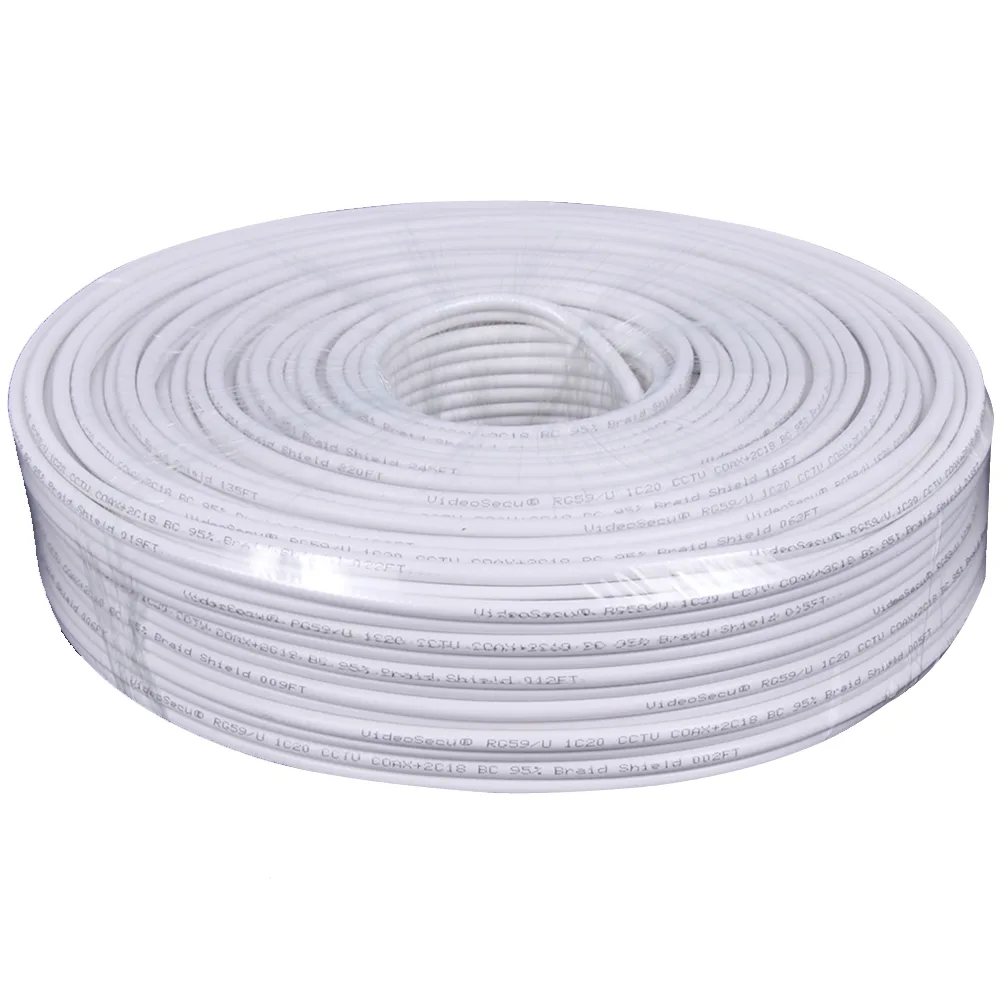

White Siamese coaxial cable reel, RG59 video plus 18 AWG power pair, 300ft length

VideoSecu

VideoSecu CBS300W RG59 Siamese Coaxial RF Cable 300ft White

SKU CH-AX13-4NADF

Siamese RG59 coaxial cable combines 20 AWG solid bare copper video with 18 AWG stranded power in a single 300 ft white PVC jacket for CCTV installs

  • Specifications• RG59/U Type Coaxial plus One Pair 18 AWG Stranded Power Ca
  • Features• Power and Video Cable independently Wrapped in a Single Ja
  • Package Contents1x 300ft cable
  • Siamese design runs video and power in one jacket
  • 20AWG solid bare copper centre conductor with 95% braid shield
  • 18AWG stranded pair supplies camera power
  • 300ft continuous length covers large installations
  • White PVC jacket blends with light-coloured walls

300ft Siamese RG59 coaxial cable

This single-jacket cable combines an RG59/U video line with a paired 18 AWG stranded power run for CCTV camera installations. The 300-foot white PVC length lets installers pull both signal and power in one pass without running separate conductors.

Replaces separate coax and power runs

The integrated separation web keeps the video and power conductors distinct while sharing one outer jacket, so the jump is worth it whenever a project would otherwise require two independent cable pulls. It suits basic analog TV antenna feeds and standard CCTV systems where twist-on BNC connectors are used.

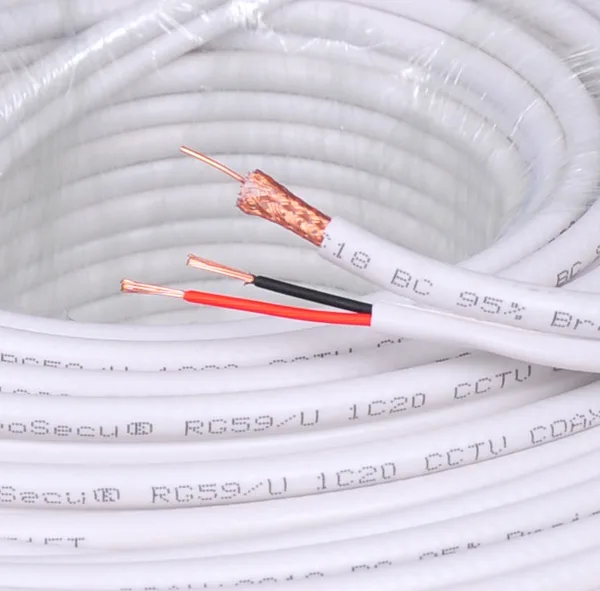

Solid bare copper centre with 95% braid shield

The 20 AWG solid bare copper centre conductor and dense braid maintain consistent video signal integrity over the full 300-foot span during continuous camera operation. The stranded 18 AWG power pair delivers steady current to cameras without the voltage drop that can occur with thinner gauge wire over long distances.

Highlights

  • Siamese design runs video and power in one jacket
  • 20AWG solid bare copper centre conductor with 95% braid shield
  • 18AWG stranded pair supplies camera power
  • 300ft continuous length covers large installations
  • White PVC jacket blends with light-coloured walls

Specifications

BrandVideoSecu
ModelCBS300W
Specifications• RG59/U Type Coaxial plus One Pair 18 AWG Stranded Power Cable •Siamese Type Configuration with Separation Web • Video Cable: 20AWG Solid Bare Copper Center Conductor, 95% Braid Shield • Power Cable: 2 x 18AWG (7 Strand) Copper Conductor • 300 feet in White
Features• Power and Video Cable independently Wrapped in a Single Jacket • Accepting Twist-on BNC Connectors or any other Standard RG59 Coaxial Connectors and Power Pigtails • White PVC Jacket • Professional Siamese Coaxial Cable for CCTV Surveillance Camera and Security System
Package Contents1x 300ft cable

Questions about this item

What is the overall diameter of the 300 ft white Siamese cable so I can size the conduit or drill holes?

The RG59 video core uses a 20 AWG solid bare copper centre conductor with 95 % braid shield, and the power pair is 2 × 18 AWG stranded copper, all under a white PVC jacket.

Which connectors should I use and what is the common mistake when attaching them?

Use twist-on BNC plugs or any standard RG59 coaxial connector plus power pigtails; the frequent error is nicking the 95 % braid while stripping, which degrades the video signal.

After a long outdoor run, which part of the cable is most likely to need replacement first?

The white PVC jacket will degrade from UV exposure before the 20 AWG video conductor or the 18 AWG power pair, so plan to re-jacket or replace the cable when the jacket cracks.
