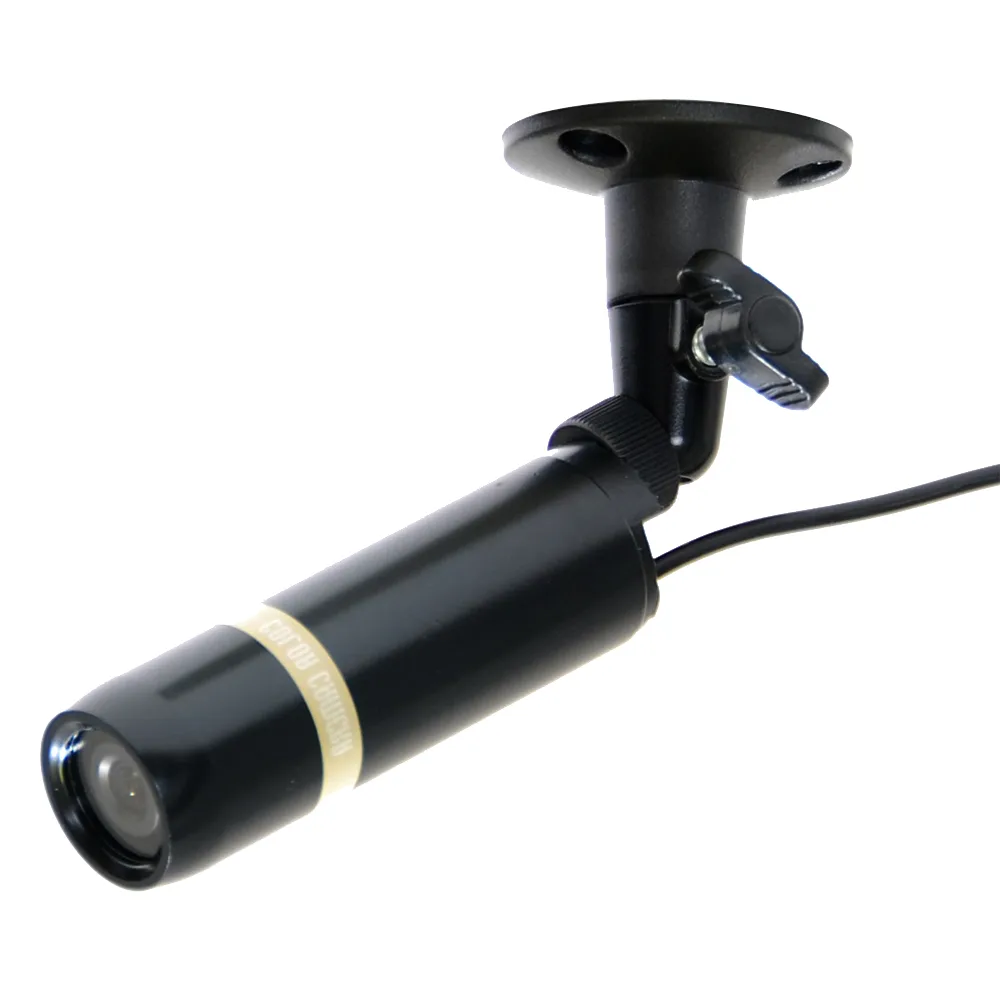

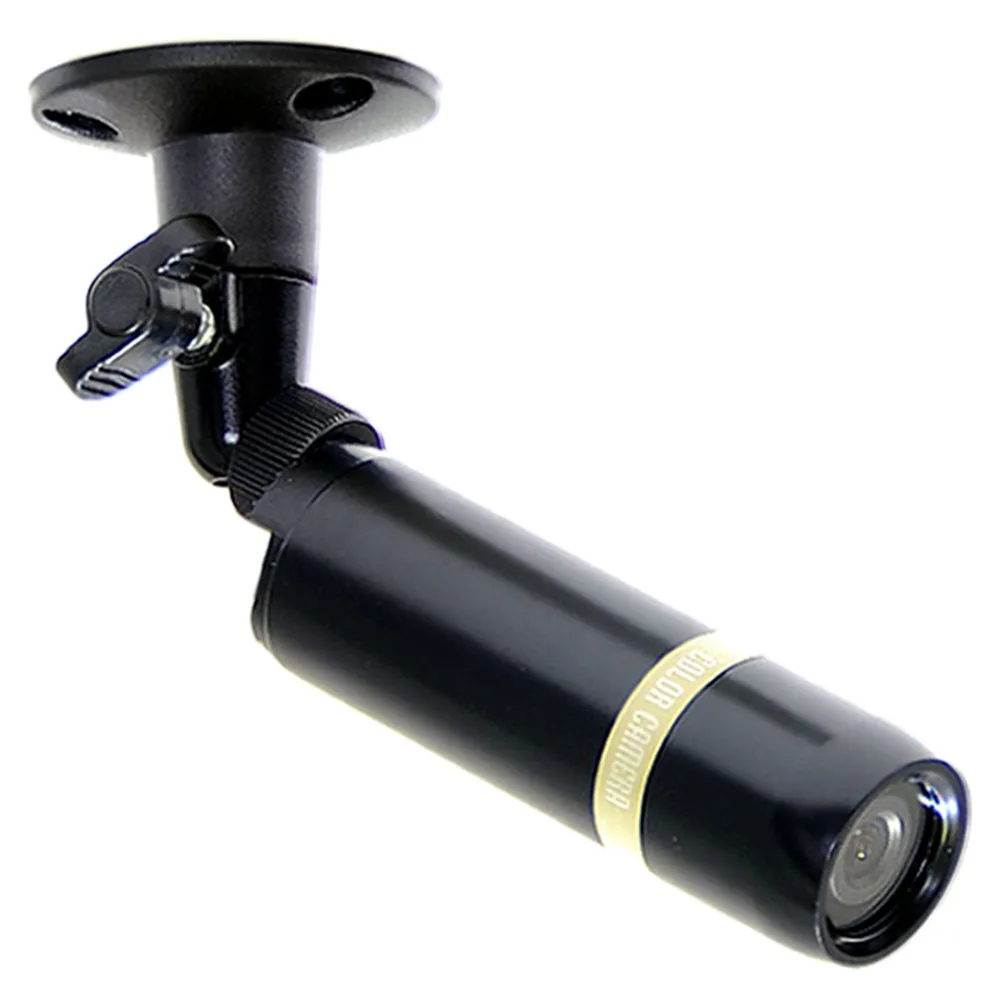

Black cylindrical bullet camera with swivel bracket, 3.6 mm lens, weatherproof aluminium housing

VideoSecu

VideoSecu BC27BKC bullet CCTV camera 480TVL 3.6mm 12V

SKU CH-5D40-R1KKA

Wired bullet CCTV camera with Sony CCD sensor, 480 TVL resolution, 3.6 mm wide-angle lens and weatherproof housing for indoor or outdoor use

  • ColorBlack
  • Camera TypeBullet Camera
  • TypeWired Camera
  • Connection TypeWired - BNC video
  • Sensor & Detectorbuilt-in Sony CCD color DSP
  • MAX Resolution480 TV Lines
  • Sony CCD sensor delivers 480 TV lines resolution
  • 6 mm wide-angle lens covers broad viewing area
  • Weatherproof aluminum housing suits indoor and outdoor use
  • DC 12 V power supply and cable included
  • Swivel bracket enables quick wall or ceiling mounting

Bullet CCTV Camera 480TVL 3.6mm

The VideoSecu BC27BKC is a wired analog bullet camera built around a Sony CCD sensor that delivers 480 TV lines of horizontal resolution. It ships with a 3.6 mm wide-angle lens, a swivel mounting bracket, a 12 V DC power supply and a combined video-power cable, plus a warning sticker. The weatherproof aluminium housing allows permanent indoor or outdoor installation.

Suits installers extending an existing analog DVR

This camera is intended for users who already operate a compatible CCTV DVR that accepts standard BNC composite video in NTSC format. It will not connect to HD-SDI, AHD, TVI, CVI or IP recorders, and it has no wireless capability, so buyers needing network streaming, higher resolution formats or battery-powered placement should look elsewhere.

Fixed 3.6 mm wide-angle lens determines field

The lens focal length is not interchangeable, so the viewing angle is set at the factory and cannot be narrowed or widened after installation. Verify that the fixed wide-angle coverage matches the surveillance zone before purchase, because no optical zoom or varifocal adjustment is available on this model.

Highlights

  • Sony CCD sensor delivers 480 TV lines resolution
  • 6 mm wide-angle lens covers broad viewing area
  • Weatherproof aluminum housing suits indoor and outdoor use
  • DC 12 V power supply and cable included
  • Swivel bracket enables quick wall or ceiling mounting

Specifications

BrandVideoSecu
ModelBC27BKC
ColorBlack
Camera TypeBullet Camera
TypeWired Camera
Connection TypeWired - BNC video
Sensor & Detectorbuilt-in Sony CCD color DSP
MAX Resolution480 TV Lines
Lens Type3.6mm wide angle lens
PowerDC 12V
Features• Image sensor: built-in Sony CCD color DSP • Horizontal resolution: 480 TV Lines high resolution • Built in f 3.6mm wide angle lens
Package Contents1 x Camera with Bracket, 1 x Power Supply, 1x Video Power Cable and Free Warning Sticker

Questions about this item

How much power does the 12 V 500 mA camera draw during continuous operation?

The camera requires 12 V DC at 500 mA, and the matching power supply is included in the box.

What other equipment is needed to record video from this BNC camera?

A CCTV DVR with BNC inputs is required; the camera does not record on its own and is not compatible with HD or wireless systems.

Will the NTSC signal from this 480 TVL camera display correctly on a DVR that also supports PAL cameras?

The camera outputs NTSC only, so the DVR must be set to NTSC for this channel; mixing signal types on the same recorder is not supported by this unit.
