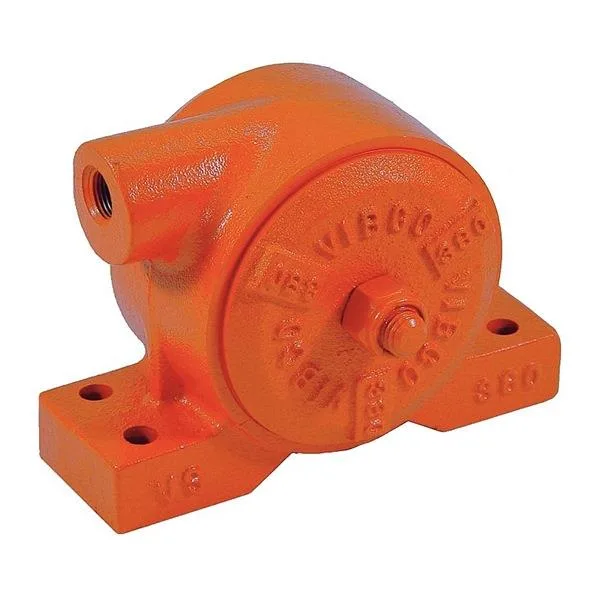

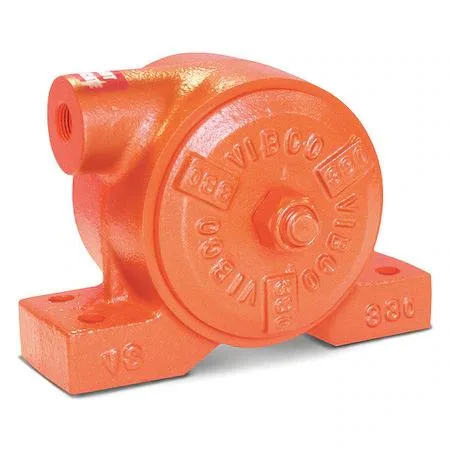

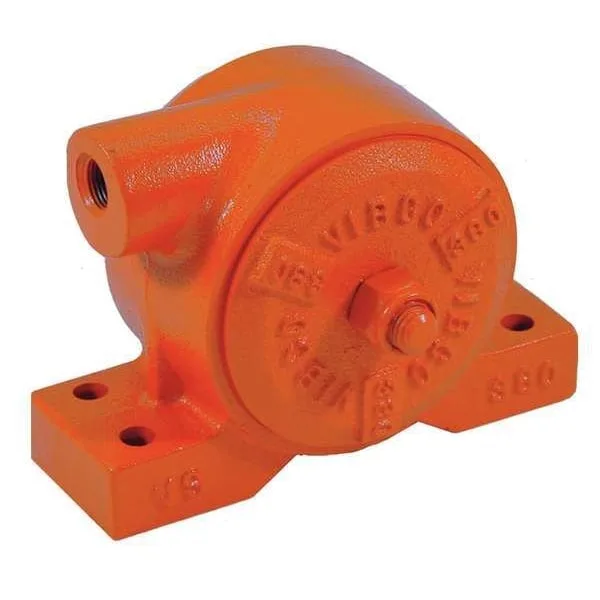

Cast-iron pneumatic turbine vibrator, foot-mounted, compact rectangular body with 3/8 NPT inlet

Vibco

Vibco VS-380 pneumatic vibrator 725 lbf 4600 vpm

SKU CH-67F8-DFJEB

Cast-iron turbine vibrator delivers 725 lbf at 80 psi with adjustable speed up to 4,600 vpm

  • TypeVibrators
  • Delivers up to 725 lbf force at 80 psi for heavy bin clearing
  • Turbine design runs continuously without lubrication for low maintenance
  • Adjustable speed up to 4600 vpm matches vibration to material flow
  • Compact cast-iron housing fits tight mounts at 6.89 in length
  • Quiet 72 dBA operation suits indoor plant environments

Industrial pneumatic vibrator

The Vibco VS-380 is a turbine-type pneumatic vibrator built for continuous-duty material-flow applications. It delivers a maximum force of 725 lbf at 80 psi and reaches 4,600 vpm with an air consumption of 17 cfm. The cast-iron housing and foot-mount design suit permanent installation on bins, hoppers or chutes.

Suited for bins up to 7,250 lb

This unit suits plants that need reliable, adjustable vibration to prevent bridging or rat-holing in vessels weighing up to 7,250 lb. It operates at 72 dBA, making it viable for indoor use where noise is a concern. Facilities without a compressed-air supply at 60–80 psi, or those requiring electric or hydraulic drive, should look at alternative technologies.

Force scales with pressure

At 60 psi the vibrator produces 570 lbf at 16 cfm, rising to the full 725 lbf at 80 psi and 17 cfm. The adjustable speed lets operators match vibration intensity to material characteristics. Headroom ends at the rated 7,250 lb bin capacity and the 5,200 vpm maximum speed; heavier vessels or higher-frequency demands will exceed the design envelope.

Highlights

  • Delivers up to 725 lbf force at 80 psi for heavy bin clearing
  • Turbine design runs continuously without lubrication for low maintenance
  • Adjustable speed up to 4600 vpm matches vibration to material flow
  • Compact cast-iron housing fits tight mounts at 6.89 in length
  • Quiet 72 dBA operation suits indoor plant environments

Specifications

TypeVibrators

Questions about this item

What air supply pressure and flow do I need to run this VS-380 vibrator?

The unit needs compressed air at 60 to 80 psi; at 60 psi it draws 16 cfm and at 80 psi it draws 17 cfm through a 3/8 in NPT inlet

Will the 4.88 in height and foot mount let me bolt it onto my existing 7,250 lb bin?

Yes — the foot-mount base and 4.88 in overall height are designed for bins up to 7,250 lb, and the 6.89 in length by 4.76 in width footprint matches standard bin stiffeners

How do I confirm the turbine is hitting the rated 4,600 vpm after installation?

Measure vibration frequency on the housing with a tachometer or accelerometer; at 80 psi it should read 4,600 vpm and produce 725 lbf force while running continuously at 72 dBA
