Black telescopic PTO shaft with slip clutch and 6-spline yokes both ends

VEVOR

VEVOR T5-BP Series 5 PTO Shaft 1-3/8" 6 Spline 43-57" Slip Clutch heavy equipment attachment

SKU CH-Z8ZD-1DAGY MPN T5-BP

A Series 5 PTO drive shaft with 1-3/8" 6-spline ends, adjustable from 43" to 57", slip clutch protection, and CE certification

  • TypeOther Appliances
  • CE-certified Series 5 driveline for safe implement connection

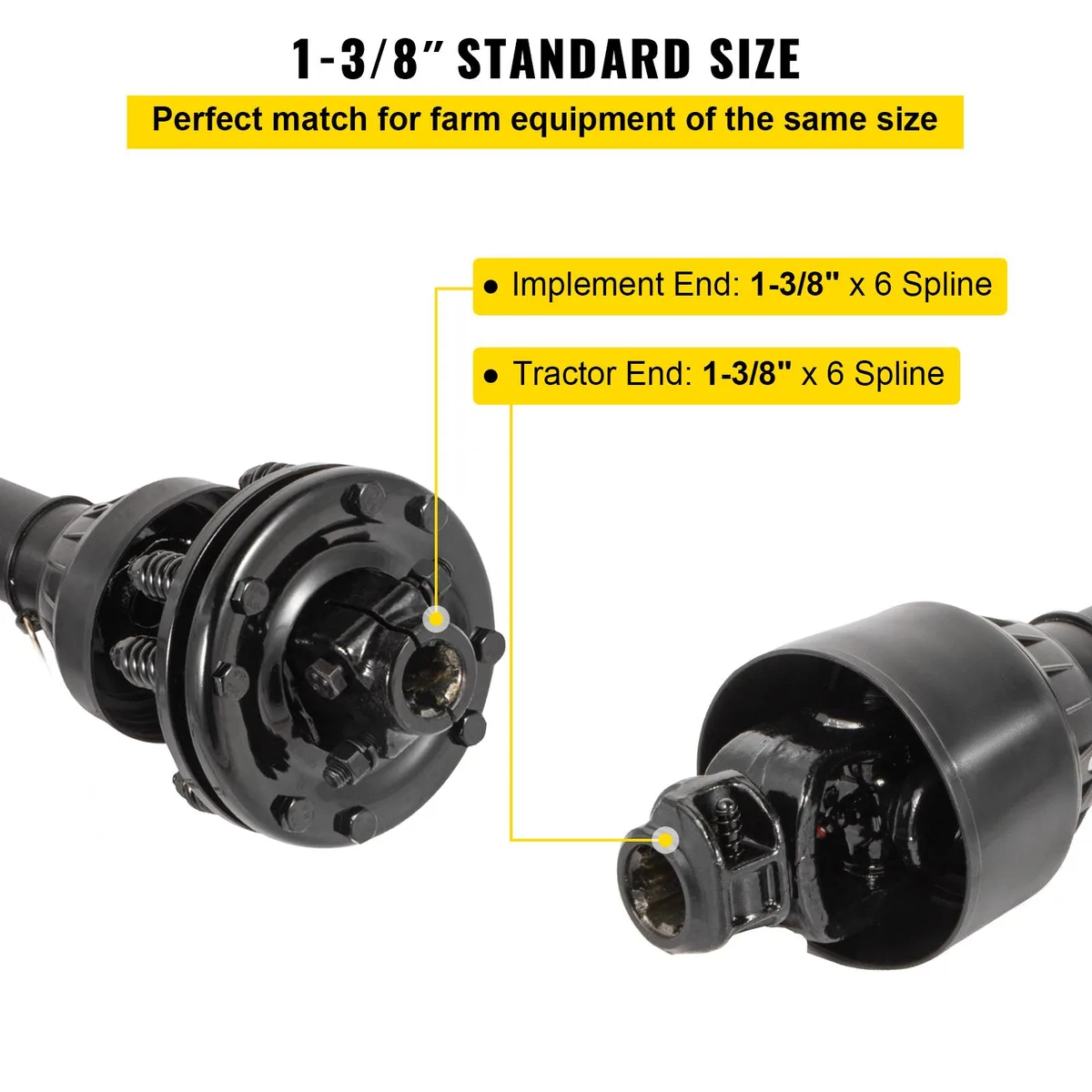

  • 6-spline 1-3/8" ends fit matching tractors and mowers directly
  • Telescoping 43" to 57" length adapts to varying hitch distances
  • Slip clutch protects gearbox by limiting torque to 620 Nm at 540 rpm
  • 20CrMnTi carburised steel joints and Q345 tube withstand heavy agricultural loads

Series 5 PTO shaft for tractors and implements

This Series 5 PTO shaft connects a tractor to implements such as a brush hog or finish mower. It features 1-3/8 inch 6-spline yokes on both ends for a direct fit. The shaft is built with a 20CrMnTi carburised steel universal joint and a Q345 steel tube inside a protective shield. CE certification confirms compliance with relevant safety standards.

Replaces worn or mismatched drivelines

A telescoping design adjusts from a compressed length of 43 inches to an extended overall length of 57 inches. This range suits various tractor-to-implement distances without modification. An integrated slip clutch protects the driveline and attached machinery from sudden torque spikes. The upgrade is worth it when the original shaft is damaged, too short, or lacks overload protection.

Handles up to 75 hp at 1000 rpm with 500 Nm torque

At 540 rpm the shaft transmits 47 hp and 620 Nm; at 1000 rpm it delivers 75 hp and 500 Nm. These ratings cover typical mid-size agricultural tasks such as mowing, tilling, and baling. The slip clutch provides a safety margin against shock loads. Builders needing higher continuous power or a different spline count should verify specifications before purchase.

Highlights

  • CE-certified Series 5 driveline for safe implement connection
  • 6-spline 1-3/8" ends fit matching tractors and mowers directly
  • Telescoping 43" to 57" length adapts to varying hitch distances
  • Slip clutch protects gearbox by limiting torque to 620 Nm at 540 rpm
  • 20CrMnTi carburised steel joints and Q345 tube withstand heavy agricultural loads

Specifications

TypeOther Appliances

Questions about this item

What tractor and implement spline size does the T5-BP shaft fit?

Both ends use a 1-3/8" x 6 spline connection, matching series 5 tractors and implements with the same specification.

How do I install the slip clutch on the T5-BP shaft, and what step is often missed?

Slide the telescoping tubes together, align the 6 spline yokes, secure each retaining pin, then set the slip clutch torque per the manual; the step often missed is re-checking clutch bolt tension after the first hour of use.

Which wear items on the T5-BP shaft will need replacement over time?

The slip clutch friction discs, the 20CrMnTi carburised steel universal joint crosses, and the plastic shield bearings are the components that wear and require periodic replacement.
