Yellow telescoping PTO shaft with slip clutch, 31.5 to 41 inches extended, 6 spline ends both sides

VEVOR

VEVOR T4-YP Series 4 PTO Shaft 1-3/8" 6 Spline 31.5"-41" Yellow heavy equipment attachment

SKU CH-BF41-3WF08 MPN T4-YP

Series 4 PTO driveline with 6-spline 1-3/8" ends adjusts from 31.5 to 41 inches and handles 900 Nm peak torque

  • TypeOther Appliances
  • CE-certified Series 4 driveline for safe agricultural use

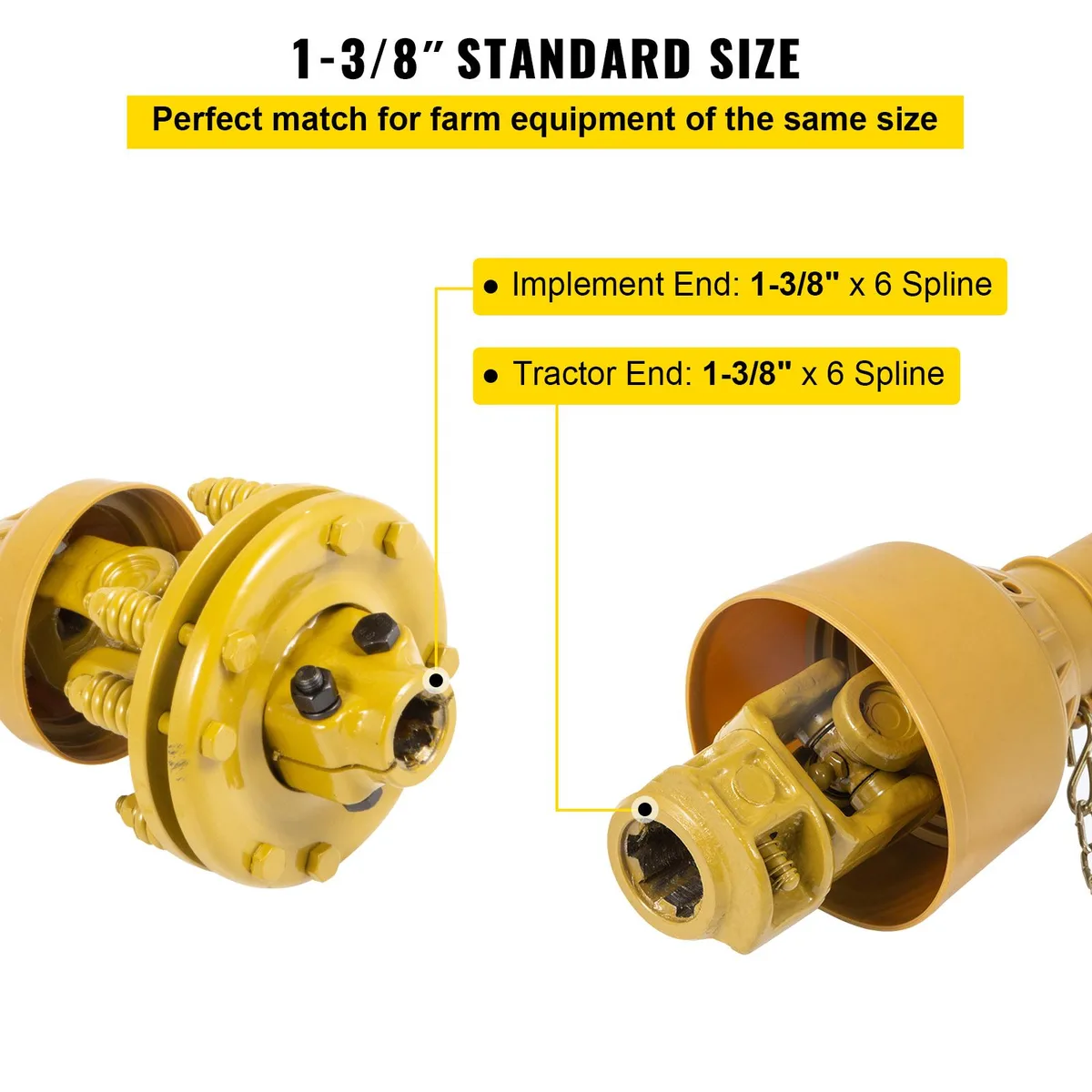

  • 6-spline 1-3/8" ends fit matching tractors and implements
  • Telescoping tube adjusts from 31.5" to 41" compressed length
  • Slip clutch with 7" friction disc protects against torque overload
  • Delivers 35 hp at 540 rpm and 53 hp at 1000 rpm

Series 4 PTO shaft with 6-spline ends

This VEVOR T4-YP driveline shaft fits tractors and implements that both use a 1-3/8-inch 6-spline connection. A slip clutch protects the drivetrain from sudden overloads. The yellow powder-coated guard encloses a carburised 20CrMnTi universal joint and a Q345 steel inner tube. It is supplied new with a locking pin and a user manual.

Suits compact tractors and Category 1 implements

The 31.5-inch compressed and 41-inch extended lengths cover the typical drawbar-to-PTO distance on smaller utility tractors. Builders who need a larger spline count, a different tube diameter or a constant-velocity joint should look elsewhere. The fixed 7-inch friction disc diameter also limits the maximum clutch torque to the rated value.

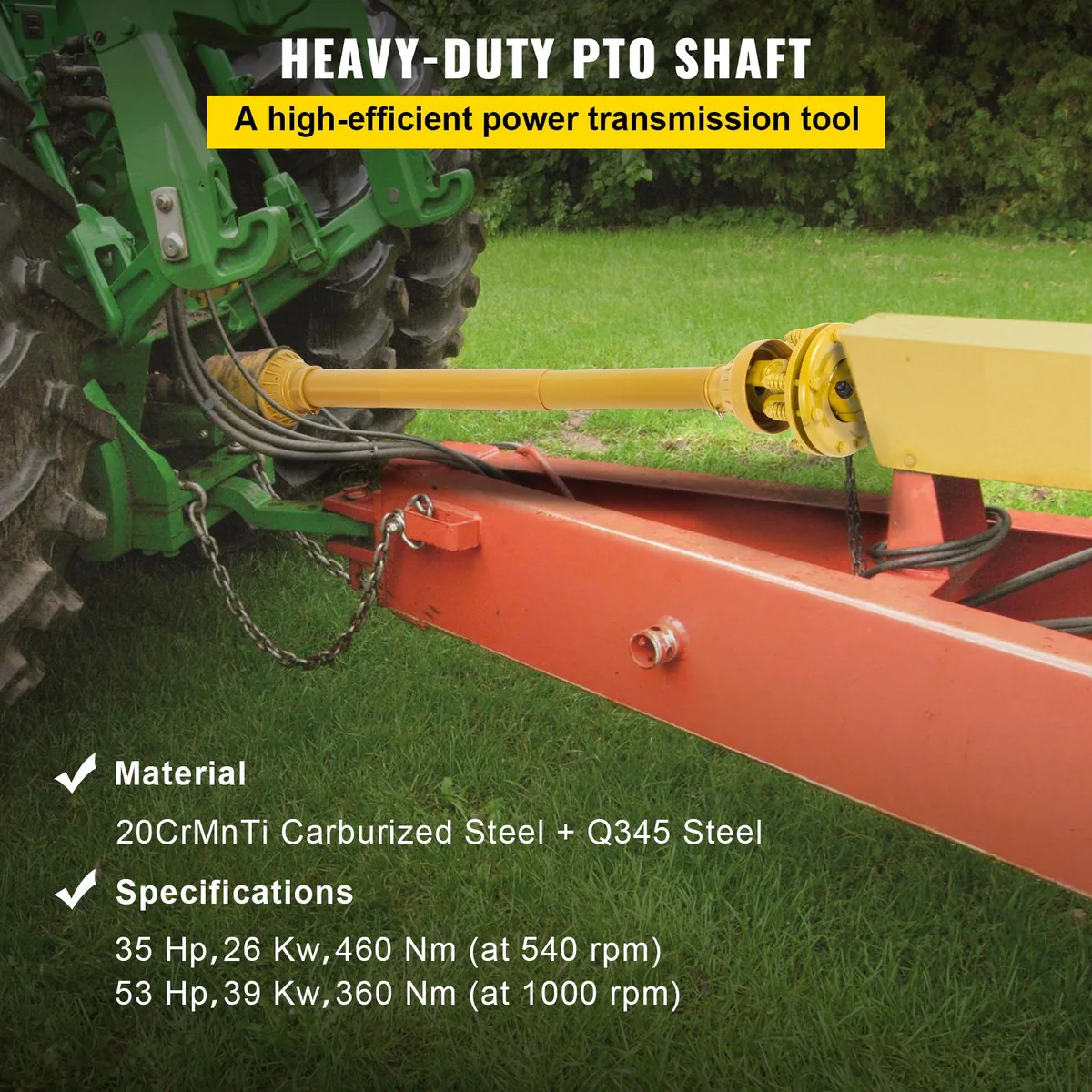

35 hp at 540 rpm with 460 Nm torque headroom

At 540 rpm the shaft transmits 35 hp (26 kW) and 460 Nm, rising to 53 hp (39 kW) and 360 Nm at 1000 rpm. Peak torque capacity reaches 900 Nm. Continuous operation beyond these power or speed figures will exceed the slip-clutch setting and the tube strength.

Highlights

  • CE-certified Series 4 driveline for safe agricultural use
  • 6-spline 1-3/8" ends fit matching tractors and implements
  • Telescoping tube adjusts from 31.5" to 41" compressed length
  • Slip clutch with 7" friction disc protects against torque overload
  • Delivers 35 hp at 540 rpm and 53 hp at 1000 rpm

Specifications

TypeOther Appliances

Questions about this item

My tractor has a 1-3/8" 6-spline PTO output — will this shaft connect directly without an adapter?

Yes, the tractor end is a 1-3/8" x 6 spline yoke that matches your PTO output. A locking pin is included to secure the connection.

I plan to keep my older Series 3 implement — can this Series 4 shaft work with it?

The implement end is also 1-3/8" x 6 spline. If your Series 3 implement uses that same yoke size, the shaft will fit; the series number refers to the driveline strength, not the spline pattern.

After installation, how can I confirm the slip clutch is set correctly for my 35 hp tractor at 540 rpm?

At 540 rpm the shaft is rated for 35 hp and 460 Nm. Under normal load the clutch should not slip; if it slips during light work, adjust the spring tension per the manual until it holds at the rated torque.
