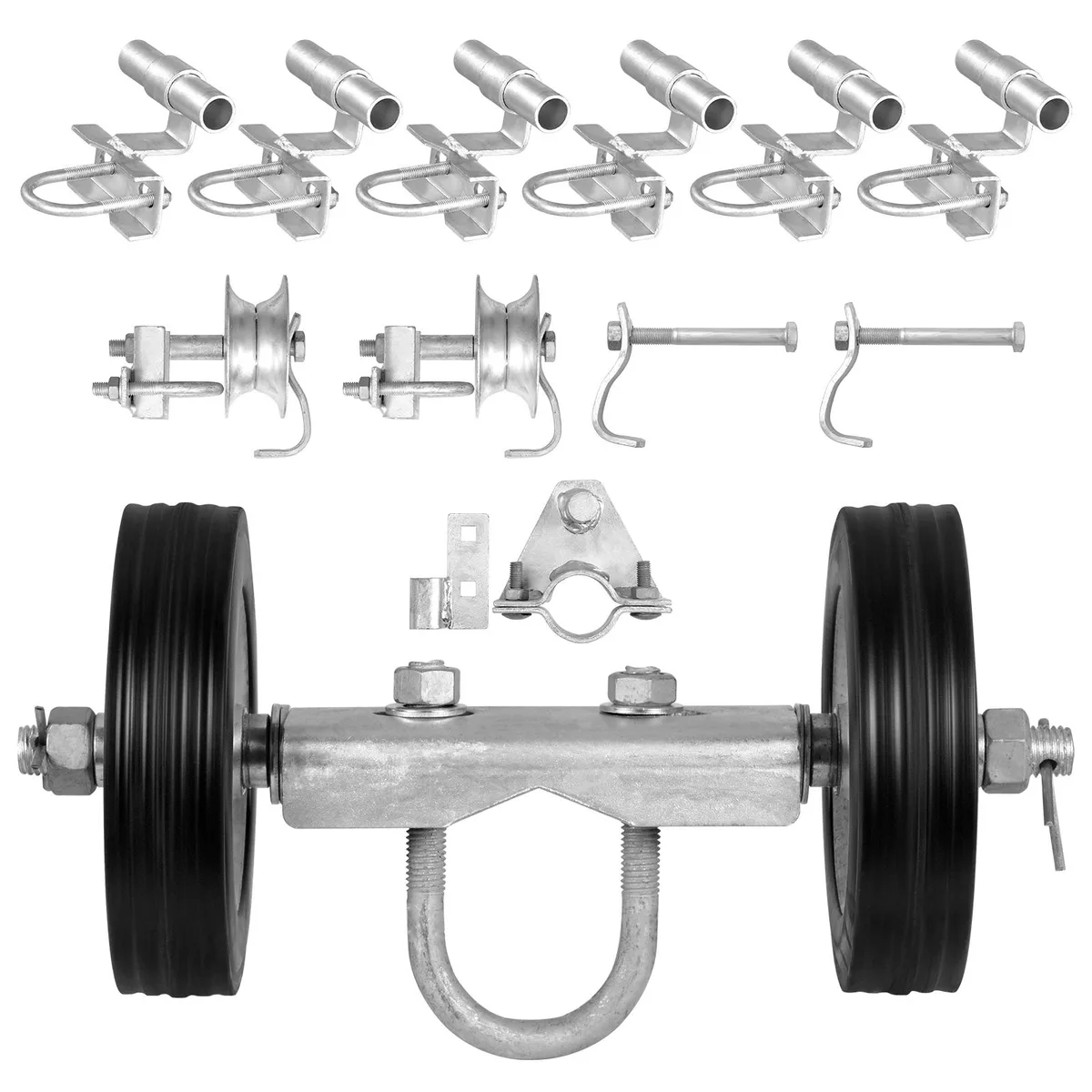

Sliding gate hardware kit with rubber wheels and steel brackets on a plain background

VEVOR

VEVOR GKIT6 Sliding Gate Kit 600 lbs C-type

SKU CH-JHCX-E7HQV

Heavy-duty sliding gate kit supports 600 lbs with rubber-SBR wheels on Q235A brackets for 32-42 mm door frames

  • TypeOther Appliances
  • Width11.02
  • Supports gates up to 600 lbs with heavy-duty Q235A brackets
  • Rubber SBR wheels provide smooth rolling on C-type tracks
  • Fits door-frame pipes from 32 to 42 mm outer diameter
  • Works with steel columns sized 41 to 55 mm and 41 to 73 mm
  • Complete kit includes two 6-inch casters, two 5-inch track wheels, six track brackets and latch

VEVOR GKIT6 Sliding Gate Kit 600 lbs

The VEVOR GKIT6 is a C-type sliding gate hardware kit rated for 600 lbs maximum load capacity. It is designed for residential or light-commercial gates that run on a steel pipe track. The kit includes two 6-inch rubber SBR wheels on a Q235A steel bracket, two 5-inch steel pipe track wheels, six track brackets and a latch. It suits installers who need a complete rolling system for a single leaf gate.

Check pipe diameters before ordering

Verify that your existing gate frame pipe outer diameter falls between 32-42 mm. The track brackets require a steel column outer diameter of 41-55 mm, while the guide rollers accept a column outer diameter of 41-73 mm. Ensure the mounting surface can support the 15.1 kg kit weight and that the 144.3 x 305 mm bracket footprint fits the available space. No wiring or power supply is involved.

Bundled hardware completes the installation

Two 6-inch casters and two 5-inch steel pipe track wheels provide the rolling and guiding contact surfaces. Six track brackets secure the pipe track to the support posts at the correct spacing. The included latch adds a positive locking point for the closed gate. A user manual supplies assembly steps and torque values for the supplied fasteners.

Highlights

  • Supports gates up to 600 lbs with heavy-duty Q235A brackets
  • Rubber SBR wheels provide smooth rolling on C-type tracks
  • Fits door-frame pipes from 32 to 42 mm outer diameter
  • Works with steel columns sized 41 to 55 mm and 41 to 73 mm
  • Complete kit includes two 6-inch casters, two 5-inch track wheels, six track brackets and latch

Specifications

TypeOther Appliances
Width11.02

Questions about this item

What hardware comes in the kit and what must be purchased separately?

The kit includes two 6-inch casters, one caster bracket, two 5-inch steel pipe track wheels, six track brackets, one latch and a user manual. You will need to supply the gate panel, support posts and any concrete fixings yourself.

Which pipe and column sizes does the GKIT6 fit?

The caster brackets accept door-frame pipes with an outer diameter of 32-42 mm (1.26-1.65 in). The track brackets suit steel columns of 41-55 mm (1.61-2.17 in) and general columns of 41-73 mm (1.61-2.87 in).

What does the 600 lbs capacity mean when the gate is installed?

The 600 lbs rating is the maximum load the two rubber SBR wheels and Q235A brackets can carry together. Your completed gate — including frame, cladding and any automation — must not exceed this weight.
