Four black steel lift columns with rubber pads on a low frame, remote control unit attached

VEVOR

VEVOR EZJG5000A 5000 lbs Car Lift 29.8" Height Remote Control

SKU CH-4X8R-VFS2T

Portable electric car lift raises vehicles up to 5000 lbs with 29.8" maximum height and remote control operation

  • Width16.54
  • TypeFloor Jacks
  • Vehicle TypeAutomotive
  • Lifts vehicles up to 5000 lbs for secure undercarriage access
  • Adjustable height from 2.9" to 29.8" fits varied chassis
  • Snap-on safety lock prevents unwanted sliding during work
  • Remote control enables one-person operation from a distance
  • Folds to 70.6" x 11.1" x 2.9" for compact garage storage

Vehicle Capacity and Use

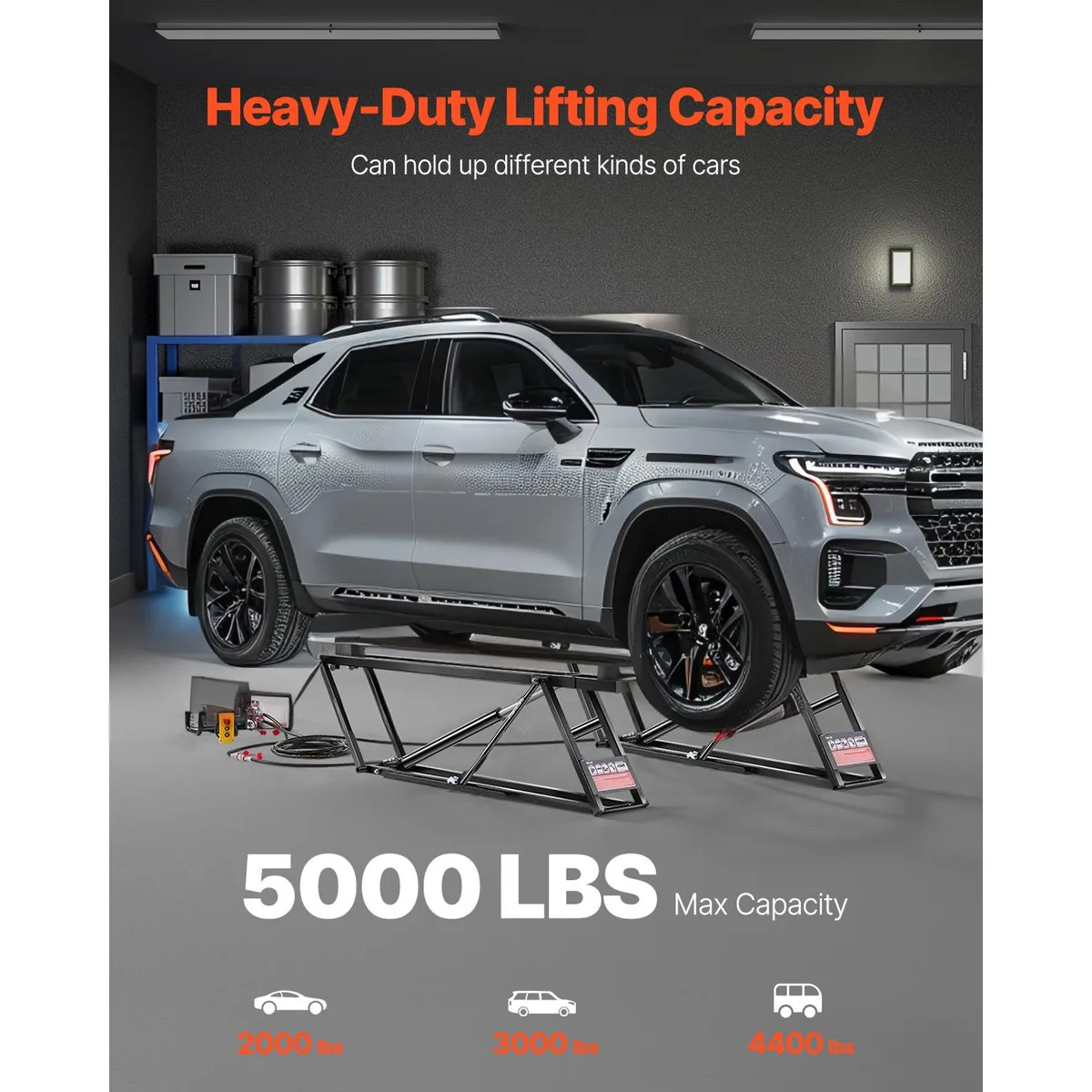

This portable electric car lift raises vehicles weighing up to 5000 lbs or 2267.9 kg, covering mid-size sedans, SUVs, vans and some light-duty pickup trucks. It runs on AC120V 60Hz mains power with a rated motor output of 0.75 kW. The folded footprint measures 70.6" x 11.1" x 2.9" for garage storage.

Sustained Load Behaviour

A unique snap-on security lock engages automatically at the chosen height to prevent unwanted sliding during extended undercarriage work. The lock must be verified in the locked position before anyone works beneath the vehicle and released manually before lowering. Four rubber lifting pads and four adjustable columns distribute the load across carbon structural steel frames.

Interface Practical Limits

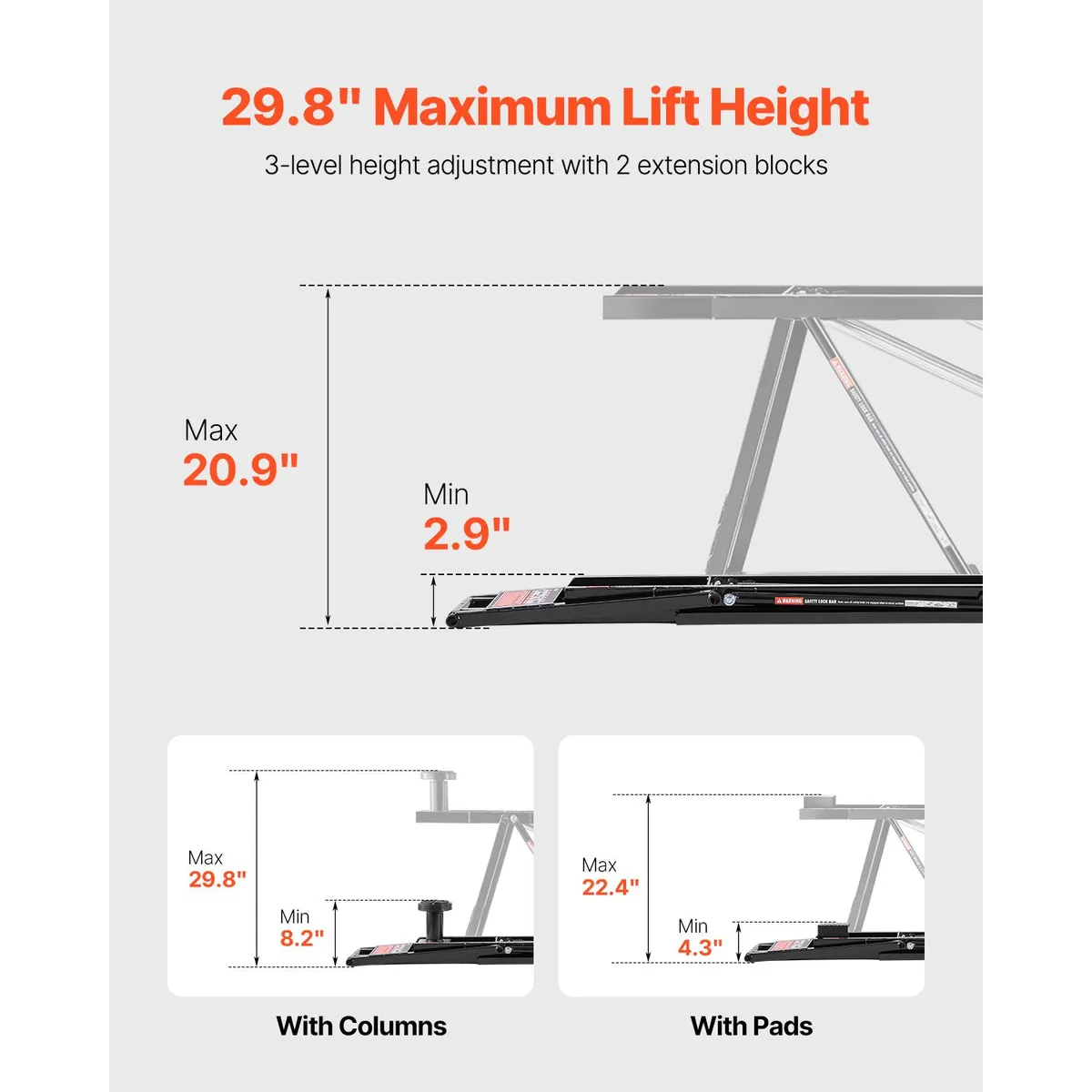

Maximum lift height reaches 29.8" or 758 mm when the adjustable columns are fitted, while the base range spans 2.9" to 20.9" with three locking positions. Lifting pads measure 4.0" x 3.0" x 3.0" and columns adjust from 6.8" to 10.2" in height. The unit weighs 251.3 lbs or 114 kg and requires a clear floor area of at least 61.4" x 11.1" at full extension.

Highlights

  • Lifts vehicles up to 5000 lbs for secure undercarriage access
  • Adjustable height from 2.9" to 29.8" fits varied chassis
  • Snap-on safety lock prevents unwanted sliding during work
  • Remote control enables one-person operation from a distance
  • Folds to 70.6" x 11.1" x 2.9" for compact garage storage

Specifications

Width16.54
TypeFloor Jacks
Vehicle TypeAutomotive

Questions about this item

How much noise and heat does the 0.75 kW motor produce when the lift runs all day?

The motor draws 0.75 kW from a 120 V 60 Hz supply; it runs quietly enough for a home garage and the steel frame dissipates heat without active cooling.

What electrical supply must already be in place for the EZJG5000A to operate?

A standard 120 V 60 Hz AC outlet is required; the control box plugs directly into it and no three-phase or high-amperage circuit is needed.

Will the 16.54 inch width and 4.0 x 3.0 inch lifting pads fit the jack points on my older sedan or light truck?

The pads measure 4.0 by 3.0 inches and the columns adjust from 6.8 to 10.2 inches high, so they reach most factory lift points on mid-size sedans, SUVs and light-duty pickups.
