Lumitec Inc 101296 NevisLT marine electronic

What the NevisLT utility light does

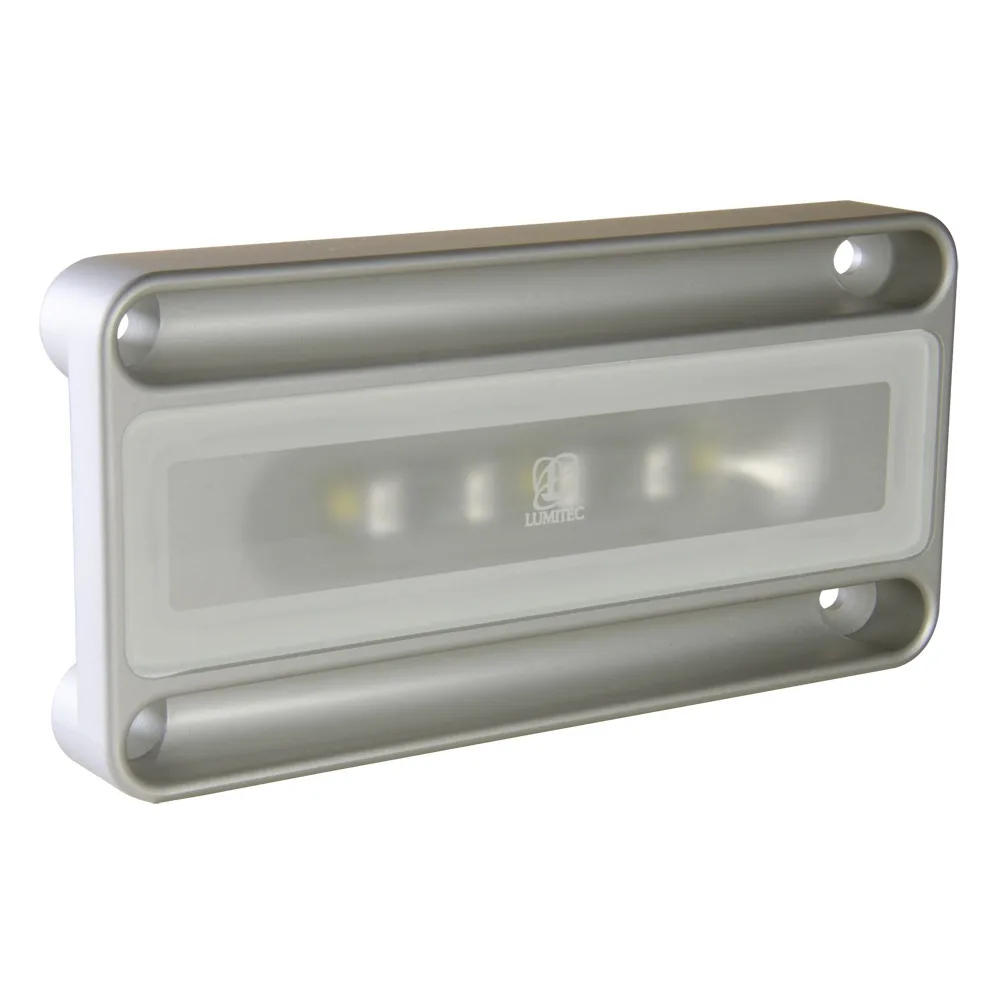

The Lumitec NevisLT model 101296 is a white LED utility light built for marine compartments and hard-to-reach areas. It delivers 1000 integrating-sphere-tested lumens across a 180-degree spread with a 5000 CCT and 70+ CRI. The fixture operates on 10-30 V DC systems, drawing 1.3 A at 12 V DC for a rated 16 W. A brushed finish and 5/32 inch mounting hole suit boat builders and owners who need bright, even illumination without dimming control.

Sustained output and electrical behaviour

At a steady 12 V DC the light pulls 1.3 amps and maintains its 1000-lumen output without a timed toggle protocol. The 10-30 V DC range lets it run directly from 12 V or 24 V vessel buses, and the unit is certified ignition protected for engine-room proximity. Third-party PWM dimmer compatibility is supported, though the NevisLT itself is non-dimming, so output stays constant as long as voltage remains within the specified window.

Thermals, noise and power in normal use

The completely sealed housing dissipates 16 W without moving parts, so operation is silent. No fan or pump noise is present, and the brushed exterior stays warm to the touch under continuous load rather than hot. Current draw remains a flat 1.3 A at 12 V DC, making power planning straightforward for DC distribution panels.
