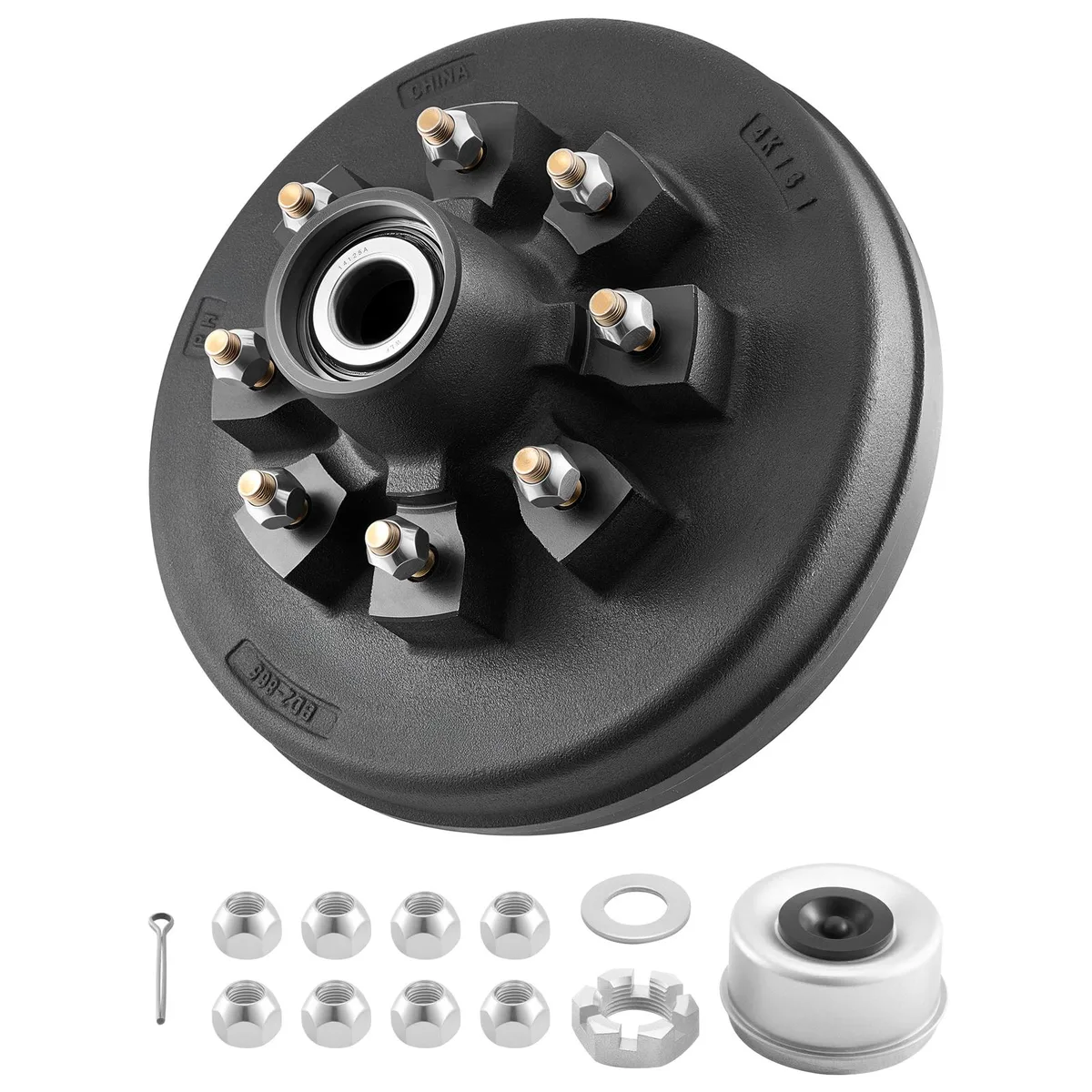

Gray cast iron 12 in brake drum with eight bolts and dust shield

VEVOR

VEVOR 7000-8 Electric Trailer Brake Drum 12 in 8 Bolt 7000 lbs

SKU CH-6HM8-8AA8J MPN 7000-8

12-inch electric brake drum rated for 7000 lbs axles with 8-bolt 6.5-inch pattern includes dust shield and hardware

  • Width13.7
  • Supports 7000 lb axle loads for heavy trailers
  • 12 inch inner diameter fits standard electric brakes
  • 8 bolts on 6.5 inch PCD ensure secure mounting
  • Gray cast iron construction resists wear over 30000 km
  • Complete kit includes drum, shield, nuts and hardware

Brake drum for 7000 lb axles

This electric trailer brake drum is built for axles rated at 7000 lbs. It fits 8-bolt hubs with a 6.5 in pitch circle diameter and 1/2-20 UNF threads. The gray cast iron construction handles the heat and load of heavy-duty towing.

12 in inner diameter decides fit

The brake drum has a 12 in inner diameter, which must match the brake shoes and hub assembly on the axle. If the existing drum measures a different diameter, this part will not install correctly.

Rated for 7000 lbs with 30000 km service life

The drum supports a 7000 lb axle capacity and is designed for up to 30000 km of service under normal conditions. It is not intended for axles rated above 7000 lbs or for applications requiring a different bolt pattern or drum diameter.

Highlights

  • Supports 7000 lb axle loads for heavy trailers
  • 12 inch inner diameter fits standard electric brakes
  • 8 bolts on 6.5 inch PCD ensure secure mounting
  • Gray cast iron construction resists wear over 30000 km
  • Complete kit includes drum, shield, nuts and hardware

Specifications

Width13.7

Questions about this item

How does the 7000 lbs rated capacity affect braking performance on a loaded trailer?

The drum is designed for axles rated up to 7000 lbs, providing the friction surface needed to stop that weight when paired with matching electric brake assemblies and a properly adjusted controller.

What does the 8 on 6.5 in bolt pattern with 1/2-20 UNF threads mean for wheel fitment?

It requires wheels with an 8-lug, 6.5 in pitch circle diameter and 1/2-20 UNF studs; the included nuts match that thread so the drum bolts directly to compatible hubs.

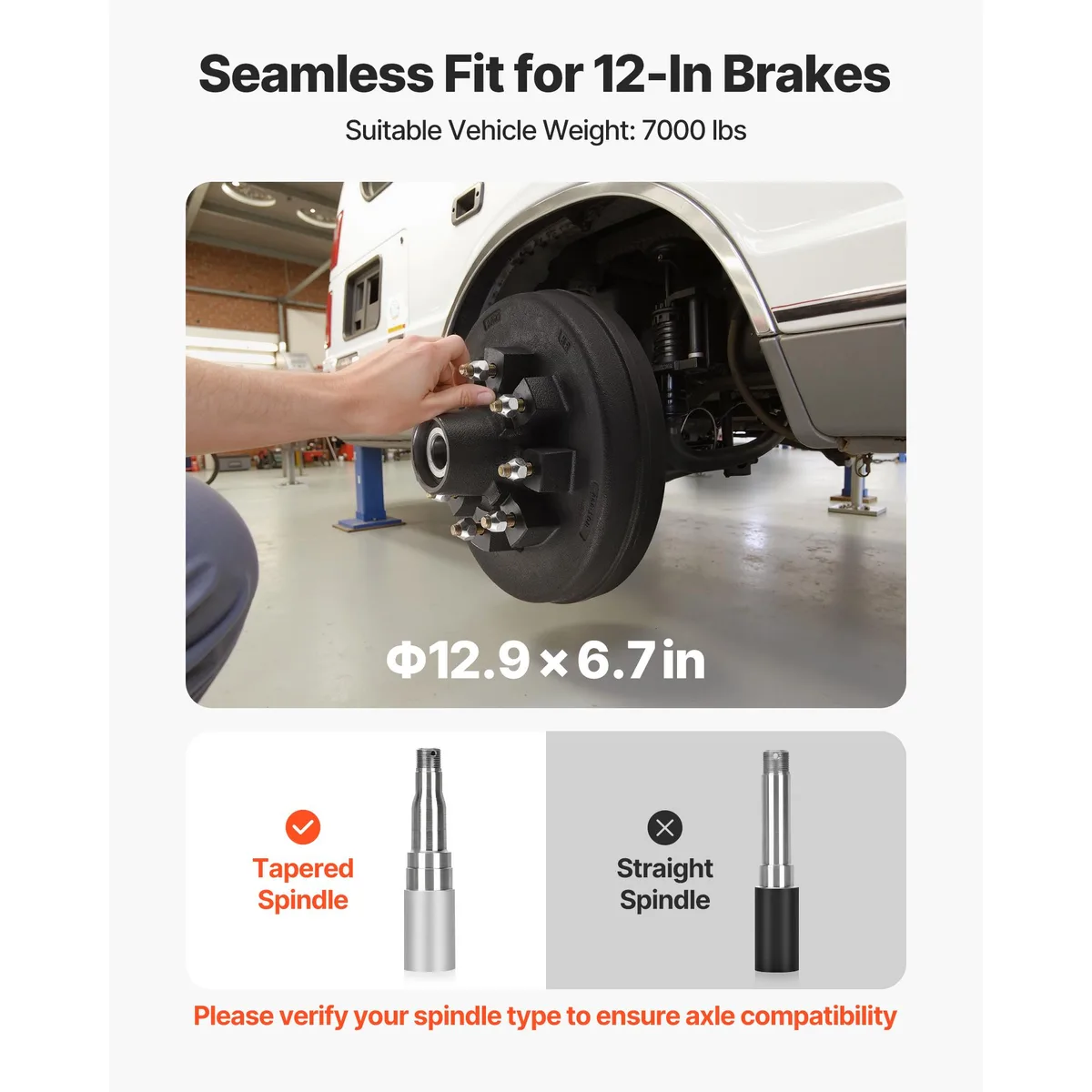

Will the 12.9 x 6.69 in overall dimensions and 13.7 in width clear my existing axle and suspension?

The drum measures 12.9 in diameter by 6.69 in deep with a 13.7 in width, so verify that your axle flange, spindle length and suspension clearance accommodate those dimensions before installation.
