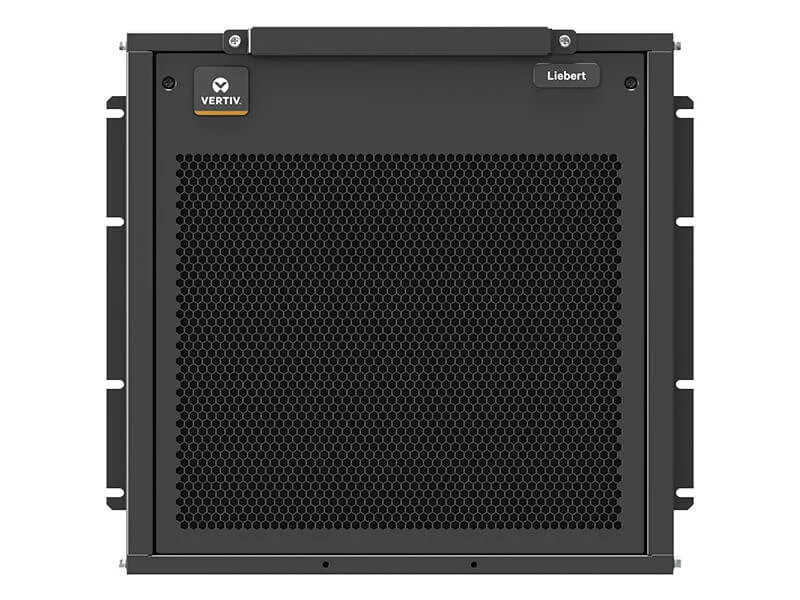

Vertiv VRC100KIT 10U rack-mount cooling unit, 19-inch metal chassis, matte grey finish

Vertiv

Vertiv VRC100KIT 10U rack-mount server rack cooling unit 3.5kW 120V 60Hz

SKU CH-67J7-AJMHH MPN VRC100KIT

A self-contained 3.5 kW cooling unit mounts in a standard 19-inch rack using 10U of space and plugs into a 120 V 60 Hz NEMA 5-20P outlet

  • TypeRack Enclosure
  • FeaturesSelf-contained, rack-mounted system offers flexibility that
  • Unit Dimension17.30" x 17.40" x 38.50"
  • Unit Weight161 lbs.
  • Self-contained design fits 10U rack space for compact cooling
  • 5 kW capacity removes 12000 BTU per hour from dense loads
  • Mounts in any standard 19-inch rack without extra floor area

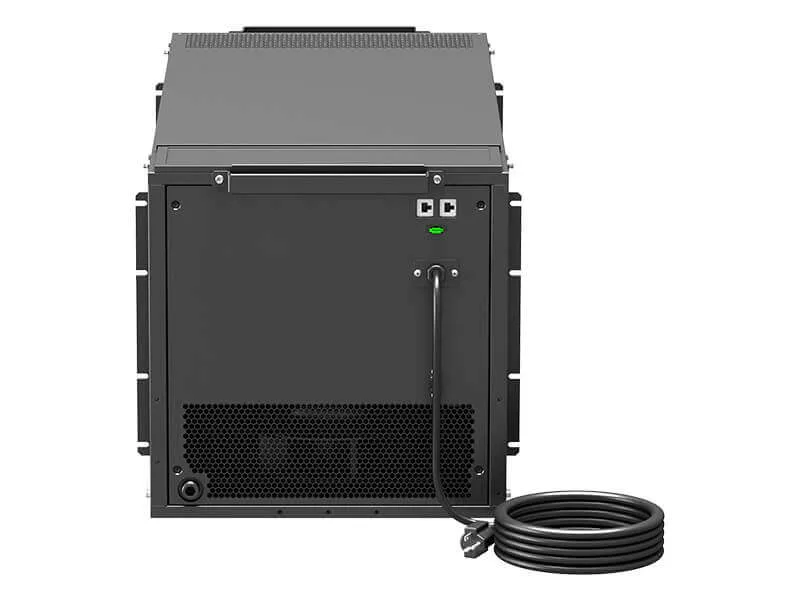

  • Plug-and-play setup with NEMA 5-20P cord and included duct kit
  • Variable-speed components cut energy use while SNMP, HTTP and Modbus enable remote monitoring

10U 3.5 kW Rack-Mount Cooling Unit

The Vertiv VRC100KIT is a new, self-contained air cooler that occupies 10U in any standard 19-inch rack. It delivers 3.5 kW (12000 BTU) of cooling on a single-phase 120 V, 60 Hz supply with a NEMA 5-20P plug. Variable-speed components scale capacity to match load, reducing operational cost. Advanced controls support remote management via SNMP, HTTP and Modbus.

Small IT Spaces Needing Plug-and-Play Cooling

This unit suits operators of smaller server rooms or edge sites who want a factory-assembled cooler that installs without specialised piping or contractors. Lifting straps and a heat-rejection duct kit simplify the initial setup. Buyers who require higher heat removal than 3.5 kW, need three-phase power, or must cool multiple racks from a central plant should look at alternative solutions.

120 V Single-Phase Power Requirement

The cooler runs on 120 V, 60 Hz single-phase power and draws 3500 W for cooling, consuming 1266.1 kJ of energy. A compatible NEMA 5-20P receptacle on a 20 A circuit is mandatory; sites without this voltage or circuit capacity cannot operate the unit.

Highlights

  • Self-contained design fits 10U rack space for compact cooling
  • 5 kW capacity removes 12000 BTU per hour from dense loads
  • Mounts in any standard 19-inch rack without extra floor area
  • Plug-and-play setup with NEMA 5-20P cord and included duct kit
  • Variable-speed components cut energy use while SNMP, HTTP and Modbus enable remote monitoring

Specifications

BrandVertiv
ModelVRC100KIT
TypeRack Enclosure
FeaturesSelf-contained, rack-mounted system offers flexibility that is ideal for smaller IT spaces
Mounts in any standard 19-inch rack, making it easily adaptable and saving valuable IT floorspace
Easy-to-install system with plug-and-play installation and a simple heat rejection duct kit
Easy-to-handle cooling unit comes standard with lifting straps, making installation a breeze
Highly efficient unit with scalable capacity due to variable speed components provides lower operational costs
Advanced controls allow for easy remote access through SNMP, HTTP, and Modbus
Unit Dimension17.30" x 17.40" x 38.50"
Unit Weight161 lbs.
Shipping weight133.81 kg
Package size762 × 711 × 711 mm

Questions about this item

How much heat does the 3.5 kW rating actually remove from a loaded rack?

The unit provides 12,000 BTU per hour of cooling capacity, which equals 3.5 kW of heat removal for equipment inside the rack.

What does the NEMA 5-20P plug require from the site power circuit?

It needs a single-phase 120 V, 60 Hz circuit with a 20 A receptacle; the cooler draws 3,500 W when running.

Will the 17.30 by 17.40 by 38.50 inch chassis fit in a standard 19-inch rack?

Yes, it mounts in any standard 19-inch rack and occupies 10 U of vertical space.
