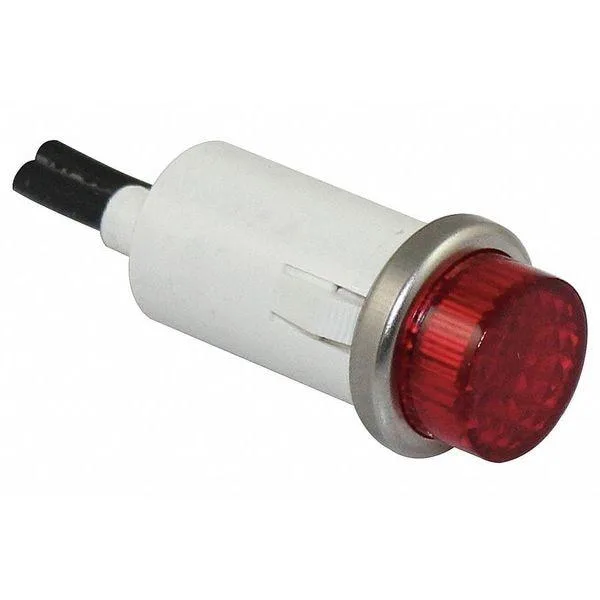

Round red indicator light with stainless steel bezel and wire leads

Value Brand

Value Brand Raised Panel Light Red 12 V AC/DC 20C844

SKU CH-XMXQ-YXGWM

A raised panel indicator light with a red polycarbonate lens, 12 V AC/DC operation and 80 mA draw mounts in a 1/2 in hole and carries CSA and UL listings

  • Red indicator light for clear status visibility
  • 12 V AC/DC operation suits many control panels
  • 80 mA current draw keeps power use low
  • 50 000 hr average life reduces replacement frequency
  • IP40 and NEMA 1 ratings protect against dust ingress

Raised Panel Light 12 V AC/DC

This raised panel light provides a red visual indicator for machinery and control panels. It operates on 12 V AC or DC and fits a standard 1/2 in mounting hole. The nylon body and polycarbonate lens with stainless steel bezel suit industrial environments. It is built for new installations or replacement of existing panel lamps.

Simple two-wire connection and panel mounting

The unit connects via 6 in wire leads and secures in a 1/2 in diameter cutout. Panel thickness must fall between 0.030 in and 0.093 in for the retaining nut to clamp correctly. A thicker panel prevents the threads from engaging and a thinner one allows the bezel to rock. The NEMA 1 and IP40 ratings mean the front face resists dust but not water jets, so avoid wash-down zones.

Verify voltage, panel cutout and environment

Confirm the control circuit supplies 12 V AC or DC and can deliver 80 mA per indicator. Measure the panel thickness to ensure it lies within the 0.030 in to 0.093 in range before ordering. The red lens suits status or fault signalling but not general illumination. This product carries California Proposition 65 warnings for cancer and reproductive harm.

Highlights

  • Red indicator light for clear status visibility
  • 12 V AC/DC operation suits many control panels
  • 80 mA current draw keeps power use low
  • 50 000 hr average life reduces replacement frequency
  • IP40 and NEMA 1 ratings protect against dust ingress

Specifications

BrandZORO SELECT

Questions about this item

How can I confirm the raised panel light is operating correctly once it's installed?

The light should illuminate steadily when 12 V AC/DC is applied; it draws 80 mA and is rated for an average life of 50,000 hours.

What components are included with the ZORO SELECT 20C844 and what must I supply separately?

The package provides the raised panel light with a red polycarbonate lens, stainless steel bezel, nylon body and 6 in wire leads; you must supply a 12 V AC/DC power source and a 1/2 in mounting hole in a panel 0.030 in to 0.093 in thick.

Which version of this indicator should I choose for a 12 V system?

The 20C844 is a single 12 V AC/DC model with a red lens, 1/2 in mounting diameter, NEMA 1 and IP40 ratings, and CSA/UL listing — select it when those exact specifications match your panel design.
