White wall-mounted fiber optic outlet box with SC/APC adapter and pigtail

USTC

USTC FTTH Fiber Optic Outlet SC/APC Adapter & Pigtail

SKU CH-PKZ2-NC4SF

Wall-mountable fiber outlet with SC/APC adapter and pigtail for FTTH, FTTB and PON networks

  • TypeFiber Optic Patch Cable Adapter
  • ColorWhite
  • FeaturesUniversal
  • Ready for FTTH, FTTB, PON and CATV networks
  • SC/APC adapter and pigtail included for immediate use
  • Compact white enclosure mounts on walls or flat surfaces
  • Hinged trays simplify splicing and routine maintenance
  • Plug-and-play operation with no software configuration required

FTTH wall-mount outlet kit

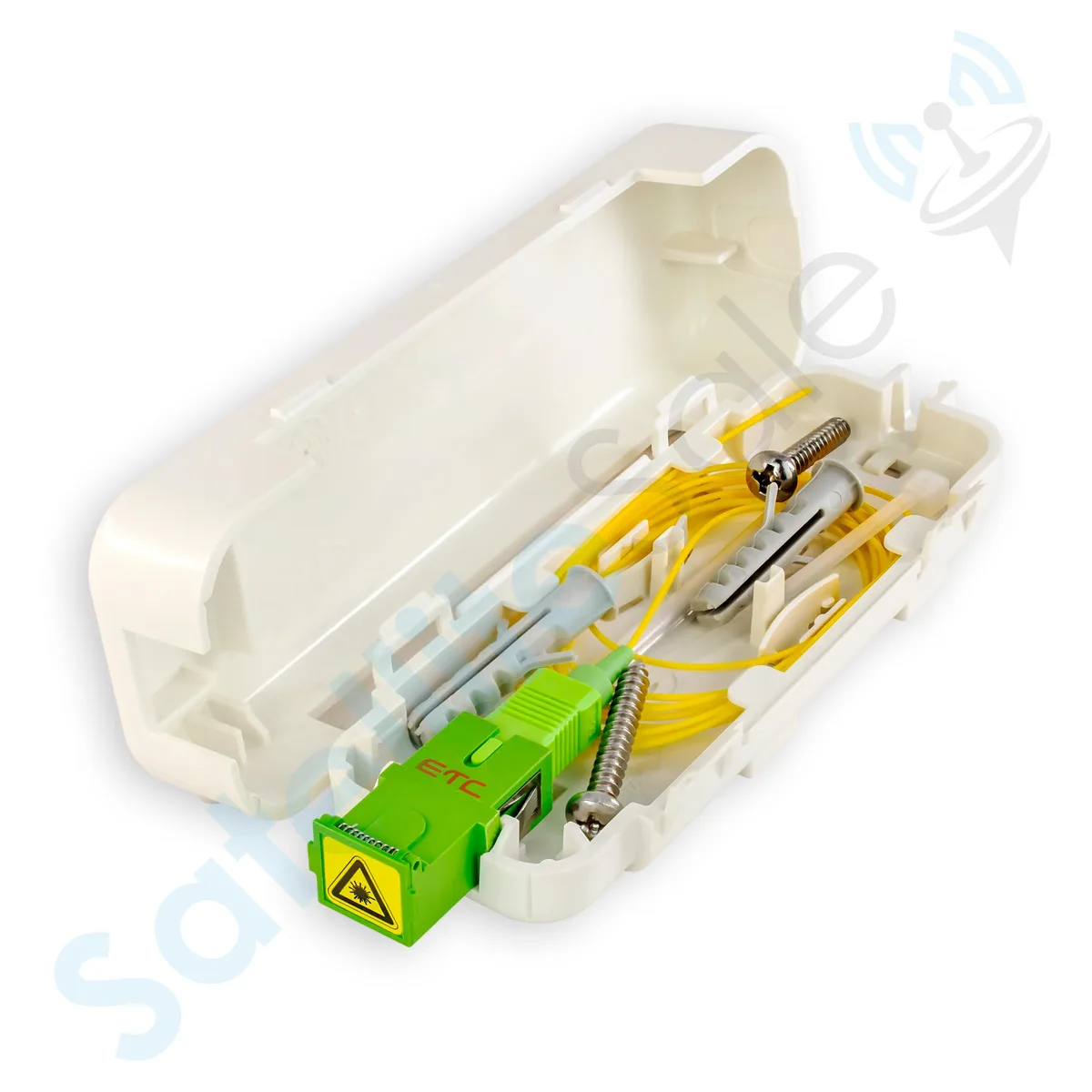

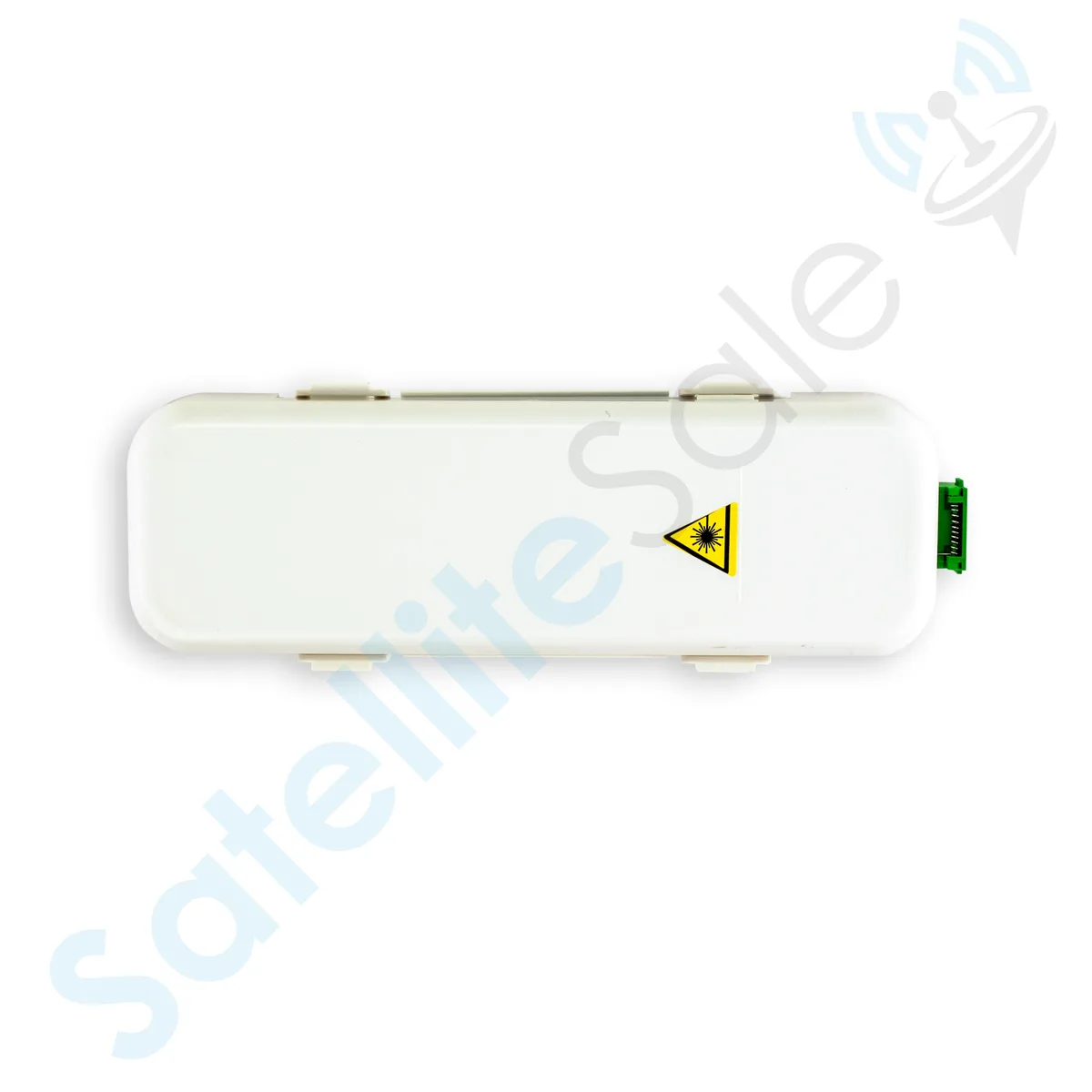

The USTC FTTH outlet box houses one SC/APC adapter and one matching pigtail, giving installers a compact termination point for single-mode fibre drops in homes or small offices. Its white, double-layer enclosure mounts on vertical or horizontal surfaces and includes the necessary hardware for a tidy, concealed installation.

SC/APC single-mode interface limits

The angled-polish SC/APC connectors are designed for single-mode fibre and return-loss sensitive networks such as GPON or RF-over-glass; they will not mate with flat-polish SC/UPC connectors without excessive reflection. The box provides one adapter port only, so each outlet serves a single drop — additional fibres require separate boxes.

Pre-installation checks

Verify that the incoming cable is single-mode fibre terminated with SC/APC connectors, or that you have the tools and skills to splice the supplied pigtail. Confirm the mounting surface can accept the included screws and that the shallow depth fits your wall cavity or trunking. No software or configuration is involved, but cleanliness of the ferrule end-faces is critical for low-loss operation.

Highlights

  • Ready for FTTH, FTTB, PON and CATV networks
  • SC/APC adapter and pigtail included for immediate use
  • Compact white enclosure mounts on walls or flat surfaces
  • Hinged trays simplify splicing and routine maintenance
  • Plug-and-play operation with no software configuration required

Specifications

BrandUSTC
TypeFiber Optic Patch Cable Adapter
ColorWhite
FeaturesUniversal

Questions about this item

Should I choose the single-port outlet or a multi-port version for my FTTH termination?

This outlet provides exactly one SC/APC adapter and one pigtail, so it is suited for a single subscriber drop; select a multi-port box only if you need to terminate several fibers at the same location.

What does the SC/APC connector polish mean for my live GPON service?

The angled physical contact polish on the SC/APC adapter and pigtail minimizes back-reflection, protecting the GPON ONT receiver and meeting the return-loss requirements of typical PON networks.

Does the SC/APC interface limit the maximum line rate I can achieve?

The SC/APC connector itself is passive and does not cap the data rate; the achievable speed is determined by the PON standard (GPON, XGS-PON, etc.) and the ONT/OLT equipment at each end.
