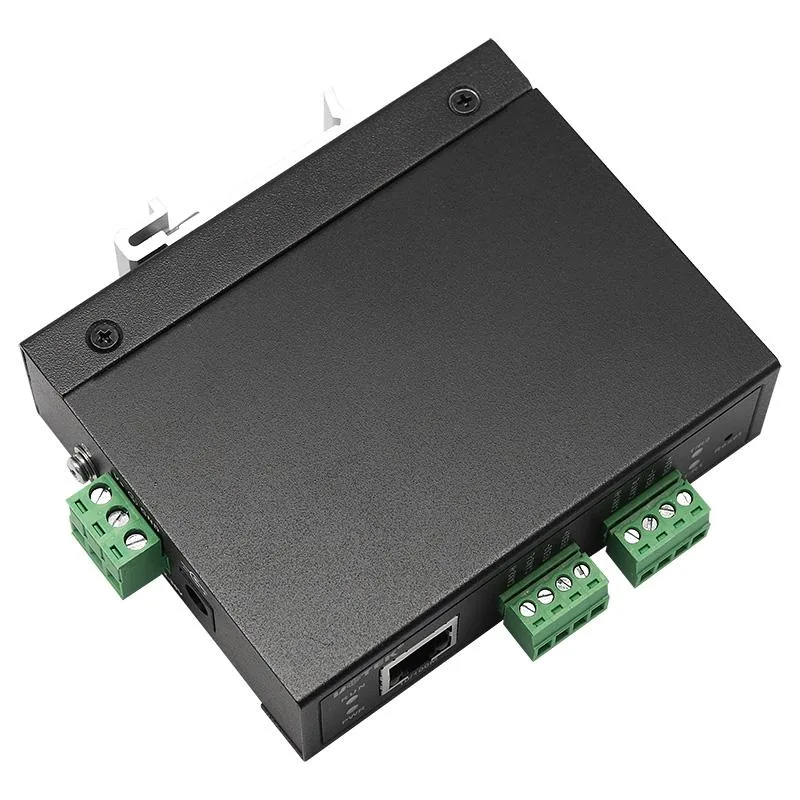

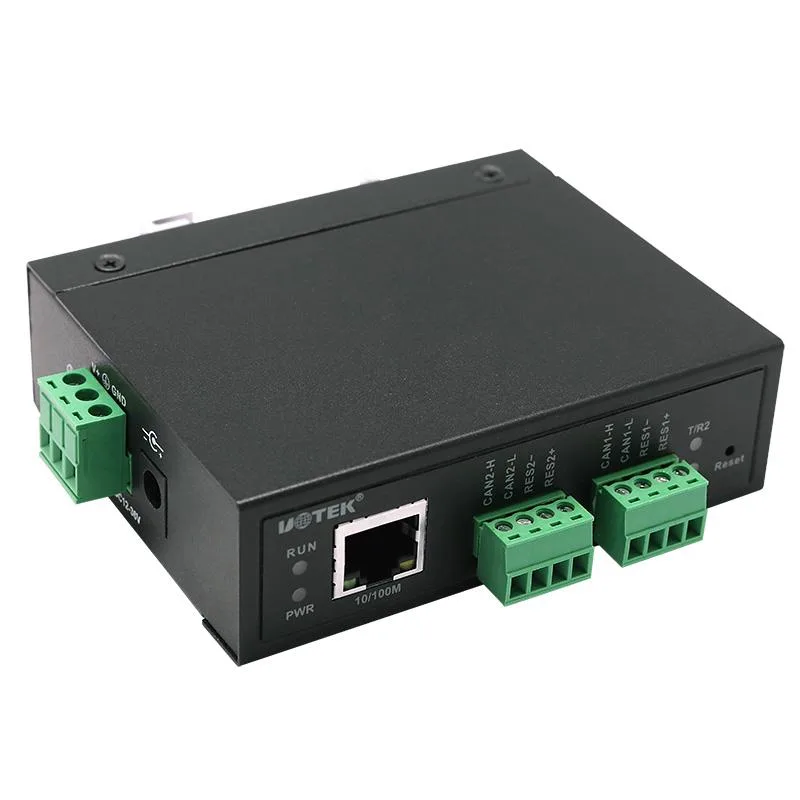

Small metal box with two CAN ports and one Ethernet port

UOTEK

UOTEK UT-6502 2-Port CAN Bus to Ethernet Data Converter

SKU CH-TQFP-4RCJM

Industrial CAN-bus to Ethernet converter with two CAN ports, one 100M Ethernet port, 5Kbps-1Mbps configurable rate and 12-36V DC operation

  • TypeCANBUS protocol converter
  • Connector A2-port CAN-bus communication
  • Connector B1-port 100M Ethernet interface
  • Bidirectional CAN-to-Ethernet data conversion
  • Supports CAN 2.0 protocol standard
  • Dual CAN ports at 5 Kbps-1 Mbps
  • 100 M Ethernet with web configuration
  • Industrial 12-36 V DC, -40 to 85 °C

Two-Port CAN Bus to Ethernet Converter

The UOTEK UT-6502 bridges two CAN-bus channels with a single 100M Ethernet link, enabling bidirectional data exchange between fieldbus devices and TCP/IP networks. It targets engineers integrating legacy CAN 2.0 equipment into modern industrial Ethernet infrastructures without rewiring the entire plant.

100M Ethernet and CAN 2.0 rate limits

The Ethernet port operates at 10/100 Mbps, so throughput caps at 100 Mbps and cannot serve gigabit backbones. Each CAN channel is configurable from 5 Kbps to 1 Mbps, matching the CAN 2.0 specification; higher bit-rates or CAN FD frames are not supported by this hardware.

Industrial-grade isolation and rugged mounting

Isolation voltage reaches 1000 VDC between communication interfaces and the system, while surge protection handles 2 kV common-mode on power and network ports and 600 W on CAN ports. The unit accepts 12-36 V DC at 150 mA and operates from -40 °C to 85 °C with 5-95 % non-condensing humidity, suiting DIN-rail cabinets in harsh environments.

Highlights

  • Bidirectional CAN-to-Ethernet data conversion
  • Supports CAN 2.0 protocol standard
  • Dual CAN ports at 5 Kbps-1 Mbps
  • 100 M Ethernet with web configuration
  • Industrial 12-36 V DC, -40 to 85 °C

Specifications

BrandUOTEK
ModelUT-6502
TypeCANBUS protocol converter
Connector A2-port CAN-bus communication
Connector B1-port 100M Ethernet interface

Questions about this item

Should I choose the single Ethernet port or add a second CAN port for my setup?

The UT-6502 has one 100M Ethernet port and two CAN ports built in; you cannot change that mix.

What does the 1 Mbps CAN rate mean when the converter is installed in a vehicle network?

Each CAN port can run from 5 Kbps up to 1 Mbps, so the device handles standard automotive and industrial bus speeds without bottlenecks.

How does the 100M Ethernet interface limit real-world throughput between CAN and IP networks?

The Ethernet link caps at 100 Mbps, so aggregated CAN traffic from both ports must stay below that ceiling.
