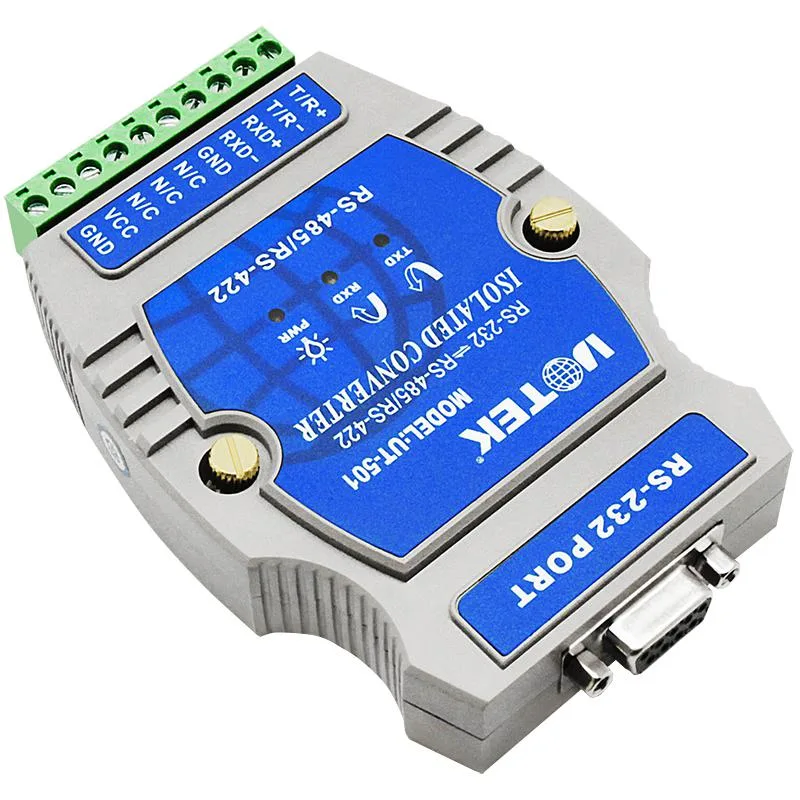

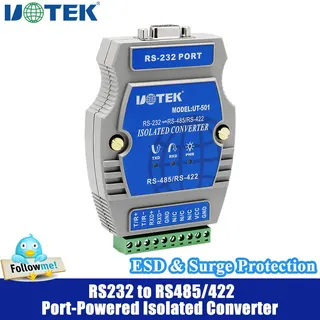

Compact rectangular converter with DB9 female port and 10-position terminal block, status LEDs visible

UOTEK

UOTEK UT-501 RS-232 to RS-422/485 Data Converter

SKU CH-18K4-DT4E5

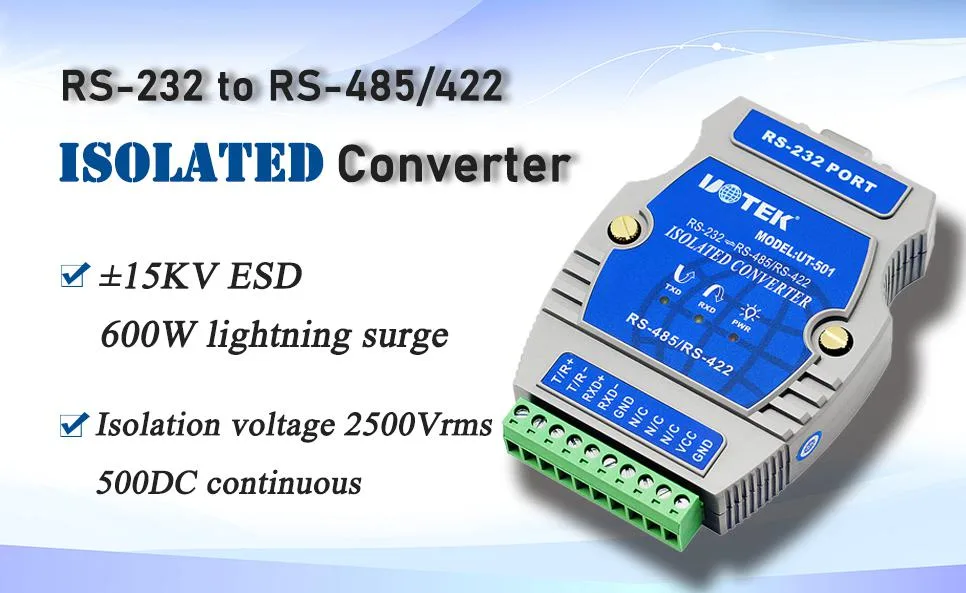

An industrial port-powered converter transforms a DB9 RS-232 signal to balanced RS-422/485 via a 10-bit terminal block with 2,500 VRMS isolation and 600 W surge protection

  • TypeConverter
  • Connector ADB9 Female
  • Connector B10 bits terminal block
  • Converts RS-232 to balanced RS-422/485 signals
  • 2,500VRMS isolation protects against ground loops
  • ±15KV ESD and 600W surge protection on ports
  • Port-powered design needs no external supply
  • Operates from -40 to 85 °C industrial range

Industrial RS-232 to RS-422/485 Converter

The UT-501 is a port-powered data converter that translates single-ended RS-232C signals into balanced differential RS-422 or RS-485 outputs. It supports asynchronous half-duplex and full-duplex operation at baud rates from 300 to 115.2K bps. The unit provides 2,500VRMS optoelectronic isolation and integrated surge protection for industrial environments.

Verify DB9 Port and Terminal Wiring

Confirm the host system supplies a standard DB9 female RS-232 interface capable of delivering port power for the converter. Ensure cabling uses twisted-pair or shielded wire suited for runs up to 1,200 metres at lower baud rates. The 10-position terminal block requires correct pin assignment for the chosen RS-422 or RS-485 wiring topology.

Isolated Housing with Status LEDs

The rugged enclosure measures 117mm by 80mm by 25mm and operates from -40 to 85 degrees Celsius in 5 to 95 percent non-condensing humidity. RS-232 lines carry ±15KV ESD protection while RS-422/485 lines withstand 600W surge events. Front-panel LEDs indicate power, TXD and RXD activity for immediate link diagnostics.

Highlights

  • Converts RS-232 to balanced RS-422/485 signals
  • 2,500VRMS isolation protects against ground loops
  • ±15KV ESD and 600W surge protection on ports
  • Port-powered design needs no external supply
  • Operates from -40 to 85 °C industrial range

Specifications

BrandUOTEK
ModelUT-501
TypeConverter
Connector ADB9 Female
Connector B10 bits terminal block

Questions about this item

What comes in the box with the UT-501 converter and what must I buy separately?

The converter unit itself is supplied; you will need a DB9 serial cable for the RS-232 side and twisted-pair or shielded cable plus wire ferrules for the 10-position terminal block.

How do I choose between RS-422 and RS-485 on the UT-501?

The same terminal block supports both standards; wire it for four-wire full-duplex RS-422 or two-wire half-duplex RS-485 depending on your device requirements.

What does the 115.2 Kbps baud-rate mean for my installation?

It is the maximum asynchronous speed; at that rate the link reaches 200 m, while dropping to 9 600 bps extends the distance to 1 200 m.
