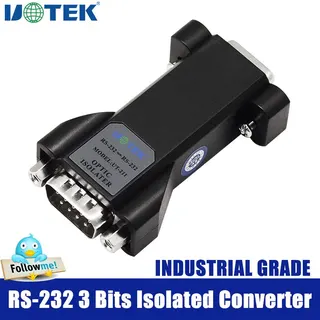

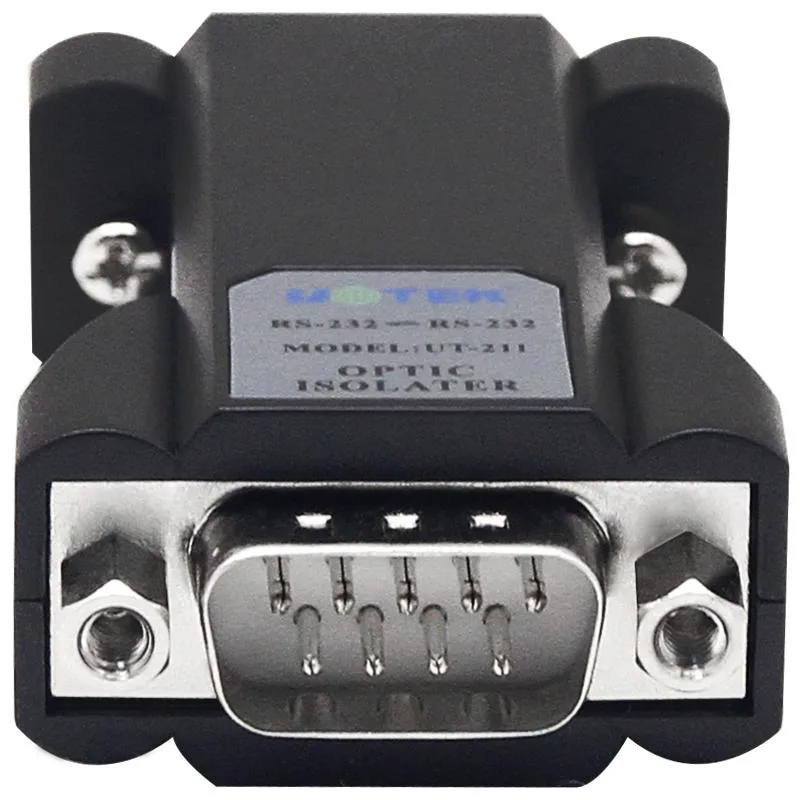

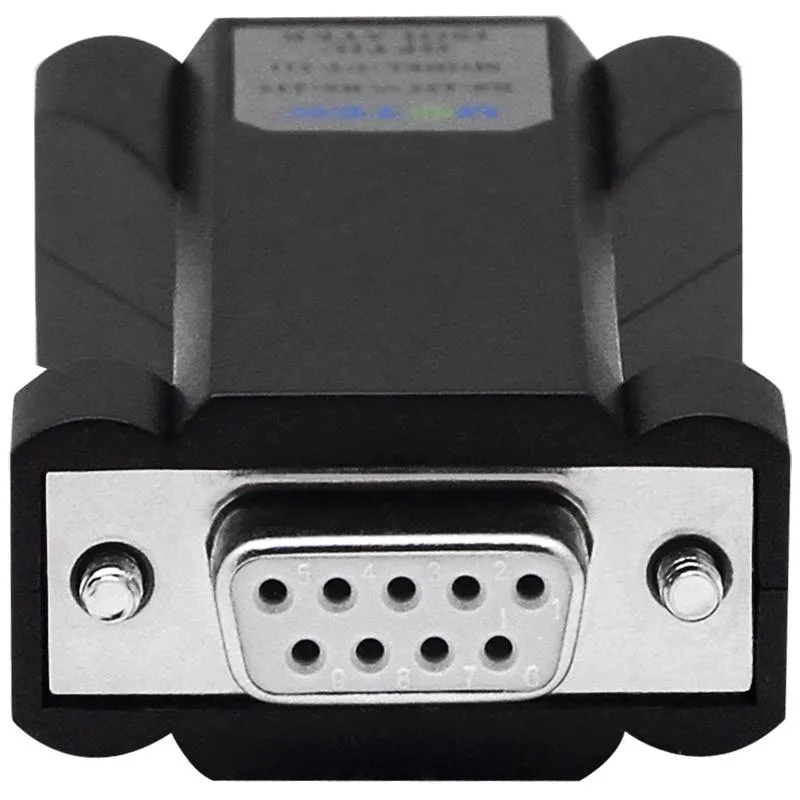

Compact DB9 male to female RS-232 isolator, matte plastic housing, 62 by 34 by 18 mm

UOTEK

UOTEK UT-211 RS-232 3 Bits Isolated Data Converter

SKU CH-GC5P-KD50Q

An RS-232 isolator with DB9 male and female connectors provides 2,500Vrms impulse isolation and draws power from the serial port

  • TypeIsolated Converter
  • Connector ADB9 MALE
  • Connector BDB9 FEMALE
  • RS-232 & CCITT V.24 protocol support enables legacy serial communication
  • 2,500 Vrms impulse isolation protects equipment from ground loops and surges
  • Powered directly from RS-232 TXD, RTS or DTR lines requires no external supply
  • Wide 300 to 57,600 bps baud range suits diverse industrial devices
  • Compact 62 × 34 × 18 mm DB9 male-to-female design fits tight panels

Industrial RS-232 Isolation Adapter

The UOTEK UT-211 is an optoelectronic isolator that sits inline between two DB9 serial ports. It draws operating power from the TXD, RTS or DTR lines so no external supply is required. The unit handles asynchronous full-duplex traffic at 300bps-57,600bps while providing 2,500Vrms impulse and 500VDC continuous isolation.

Installers protecting legacy serial links

Engineers who need to break ground loops, suppress surge events or shield equipment from hot-plug transients will fit this directly into existing cabling. Buyers who require isolation for higher-speed field buses or multi-drop networks will need a different converter class. The adapter operates from -40 to 85 Celsius in 5% to 95% humidity without active cooling.

2,500Vrms optoelectronic isolation barrier

This single specification determines whether the device survives the voltage spikes present in the target installation. The barrier is rated for 2,500Vrms impulse and 500VDC continuous potential difference between the two DB9 interfaces.

Highlights

  • RS-232 & CCITT V.24 protocol support enables legacy serial communication
  • 2,500 Vrms impulse isolation protects equipment from ground loops and surges
  • Powered directly from RS-232 TXD, RTS or DTR lines requires no external supply
  • Wide 300 to 57,600 bps baud range suits diverse industrial devices
  • Compact 62 × 34 × 18 mm DB9 male-to-female design fits tight panels

Specifications

BrandUOTEK
ModelUT-211
TypeIsolated Converter
Connector ADB9 MALE
Connector BDB9 FEMALE

Questions about this item

What maintenance will the optoelectronic isolation need after years of industrial use?

The solid-state isolator has no user-serviceable parts; the DB9 connectors may require occasional reseating if vibration loosens them.

At what baud rate does the asynchronous full-duplex link hit its ceiling?

The converter tops out at 57,600 bps, so sustained traffic above that rate will be the first bottleneck.

How much heat does the adapter generate when powered from the RS-232 port all day?

It draws only milliamps from TXD, RTS or DTR lines, so heat stays negligible inside the -40 to 85 °C operating range.
