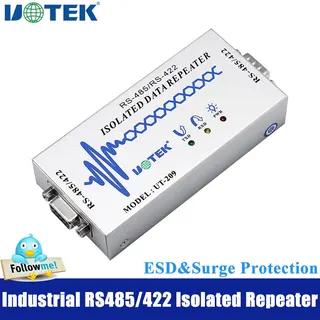

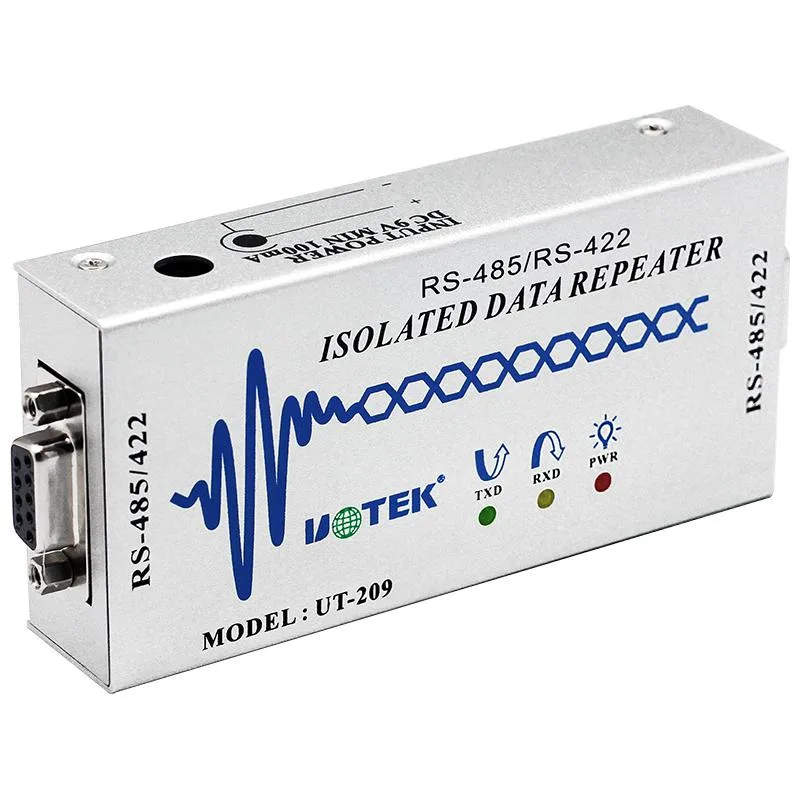

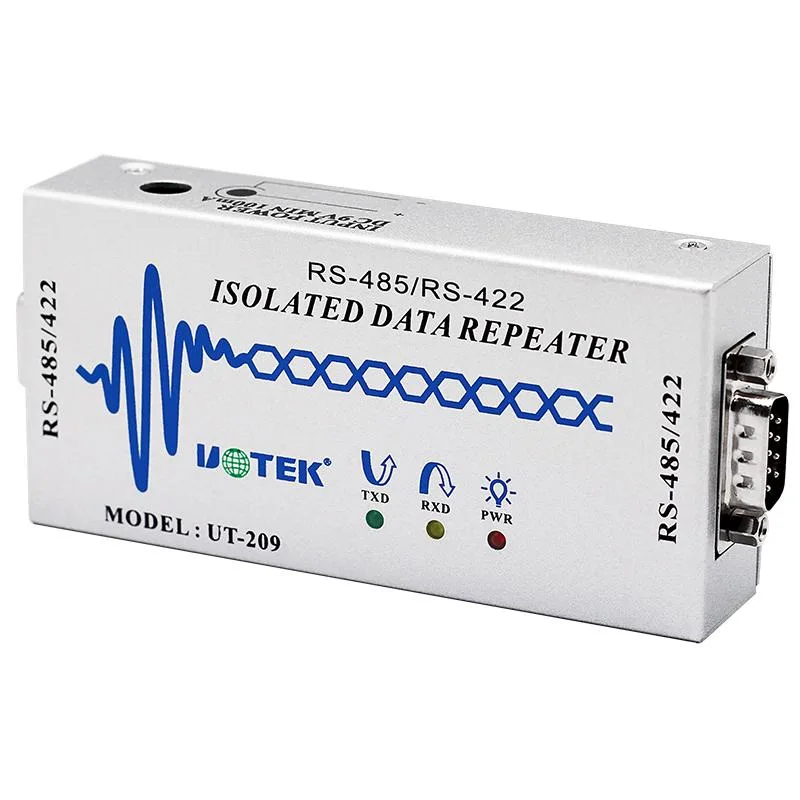

Compact industrial repeater, grey metal enclosure, DB9 female to DB9 male connectors

UOTEK

UOTEK UT-209 RS-485 RS-422 Repeater Data Converter

SKU CH-PDFA-77WWB

Industrial RS-485/422 repeater extends bus distance to 5000 m, supports 128 nodes at up to 115.2 kbps, and provides 2.5 kV optical isolation with 600 W surge protection

  • TypeConverter
  • Connector ADB9 female
  • Connector BDB9 male
  • Extends RS-485/422 bus distance up to 5,000 m
  • Connects 128 devices on a single network segment
  • 5 kV optical isolation plus 600 W surge protection
  • Automatic direction control removes need for RTS flow signal
  • Operates from -40 °C to 85 °C in harsh environments

Industrial RS-485/422 Repeater

The UOTEK UT-209 is a new industrial-grade repeater that extends RS-485 and RS-422 bus networks up to 5,000 metres at 9,600 bps. It supports baud rates from 300 bps to 115.2 kbps and allows up to 128 devices on a single segment. Automatic traffic direction control removes the need for external RTS flow control signals.

DB9 Connectors With Optical Isolation

A DB9 female to DB9 male interface connects via twisted-pair or shielded cable without jumpers. Enhanced optical isolation provides 2.5 KV rms and 500 VDC insulation plus 600 W lightning, surge and ±15 KV ESD protection per line. Power and data flow indicators give instant status visibility across the -40 to 85 °C operating range.

Extends Distance And Node Count Beyond Standard

This repeater replaces a basic passive converter when the bus exceeds standard length or device limits. The jump is worth it for half-duplex RS-485 or full-duplex RS-422 systems needing galvanic isolation and plug-and-play operation across all supported operating systems without driver installation.

Highlights

  • Extends RS-485/422 bus distance up to 5,000 m
  • Connects 128 devices on a single network segment
  • 5 kV optical isolation plus 600 W surge protection
  • Automatic direction control removes need for RTS flow signal
  • Operates from -40 °C to 85 °C in harsh environments

Specifications

BrandUOTEK
ModelUT-209
TypeConverter
Connector ADB9 female
Connector BDB9 male

Questions about this item

What RS-485/RS-422 baud rates does the UT-209 support and what is the maximum distance at 9600 bps?

The UT-209 handles 300 bps to 115.2 kbps and reaches 5000 m at 9600 bps on twisted-pair or shielded cable.

What connectors and physical space does the UT-209 require for mounting?

It uses a DB9 female to DB9 male connector pair and measures 113×55×25 mm, fitting in tight industrial enclosures.

How is the UT-209 powered and what wiring mistake should be avoided?

The repeater draws power from the data lines via its internal DC/DC module; do not apply an external supply or jumper the RS-485/RS-422 mode — it auto-detects half- or full-duplex operation.
