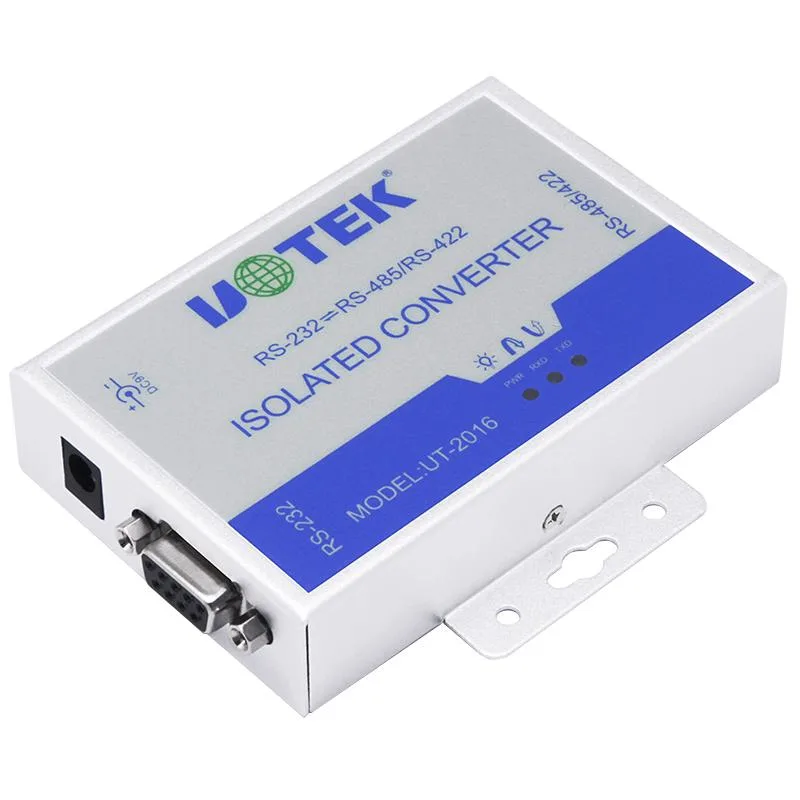

Rectangular metal box with DB9 female and male ports, RJ45 jack, grey finish

UOTEK

UOTEK UT-2016 RS232 to RS485 RS422 Isolated Data Converter

SKU CH-7K2S-Y82AH

Converts RS-232 signals to RS-422 or RS-485 with 2500Vrms optoelectronic isolation and 600W per-wire surge protection

  • TypeIsolated Converter
  • Specifications● Standards: RS-232C EIA/TIA, RS-485/422 ● RS-232 DB9 female
  • Connector Adb9 male & female port
  • Connector Brj45 port
  • Industrial-grade isolation at 2500Vrms protects equipment from ground loops
  • 600W lightning surge protection per wire safeguards RS-422/485 lines
  • Automatic data-flow control removes the need for RTS/DTR handshake signals
  • Plug-and-play operation supports both full-duplex RS-422 and half-duplex RS-485 modes
  • DB9 female to DB9 male connectivity links RS-232C gear with RS-422/485 networks

Industrial RS232 to RS485 RS422 Isolated Converter

The UOTEK UT-2016 translates RS-232C signals to RS-422 or RS-485 standards with optoelectronic isolation rated at 2500Vrms and 500VDC continuous. It targets engineers and integrators who must bridge legacy serial equipment to industrial buses in electrically noisy environments.

600W Surge Protection

Each RS-422/485 wire carries a TVS protector rated at 600W for lightning and surge events, while the tiny inter-electrode capacitance preserves high-speed transmission. The converter auto-detects transmit and receive direction without RTS, DTR or jumper settings, delivering plug-and-play operation for both full-duplex RS-422 and half-duplex RS-485 modes.

DB9 and RJ45 Connectors in a Compact Isolated

A DB9 female port accepts the RS-232 host, a DB9 male port serves the RS-422/485 field side, and an RJ45 socket provides an additional wiring option. The isolation barrier and surge clamping protect both ends of the link, making the unit suitable for factory floors, process automation and remote telemetry where ground loops and transient voltages are daily concerns.

Highlights

  • Industrial-grade isolation at 2500Vrms protects equipment from ground loops
  • 600W lightning surge protection per wire safeguards RS-422/485 lines
  • Automatic data-flow control removes the need for RTS/DTR handshake signals
  • Plug-and-play operation supports both full-duplex RS-422 and half-duplex RS-485 modes
  • DB9 female to DB9 male connectivity links RS-232C gear with RS-422/485 networks

Specifications

BrandUOTEK
ModelUT-2016
TypeIsolated Converter
Specifications● Standards: RS-232C EIA/TIA, RS-485/422
● RS-232 DB9 female connector, RS-485/422 DB9 male connector
● Protection: RS-422/485 each wire 600W lightning surge protection
● Isolation: isolated voltage 2500Vrms 500DC continuous
● Operating mode: asynchronous full-duplex or half-duplex
● Indication: PWR, TXD, RXD
● Transmission Media: Twisted-pair or shielded cable
● Baud rate: 115.2kbps to 300m
38.4kbps to 600m
9,600bps to 1.2km
● Dimension: 107mm×87mm×22mm
● Operating temperature: -25 ~ 70℃
● Relative humidity: 5 ~ 95%
● Transmission distance: 0-1,200m
Connector Adb9 male & female port
Connector Brj45 port

Questions about this item

Will the TVS surge protector on the RS-422/485 lines need replacement after repeated 600 W lightning events?

The built-in TVS protector is rated for 600 W per wire and is not a user-serviceable component; if it absorbs a large surge the converter must be replaced.

What limits continuous operation when the converter runs at full RS-485 speed all day?

The 2 500 Vrms optoelectronic isolation barrier and 500 VDC continuous rating define the voltage withstand limit; sustained data throughput is constrained by the RS-485 standard timing.

How much heat or fan noise does the UT-2016 produce inside a closed cabinet?

The unit has no fan and draws minimal power from the RS-232 port, so it generates negligible heat and runs silently in continuous industrial use.
