Aluminium shaft support block 70x42x25mm for 25mm shaft

Unique-Bargains

Unique-Bargains SHF25 Wire Cap Connector 25mm Shaft 70x42x25mm 80g

SKU CH-P0CA-HN746 MPN SHF25

Aluminium shaft support for 25 mm linear rails, 70×42×25 mm with 56 mm hole spacing, 80 g

  • TypeCable Connectors
  • Aluminium construction resists corrosion for long service life
  • 25 mm shaft diameter fits standard linear rail systems

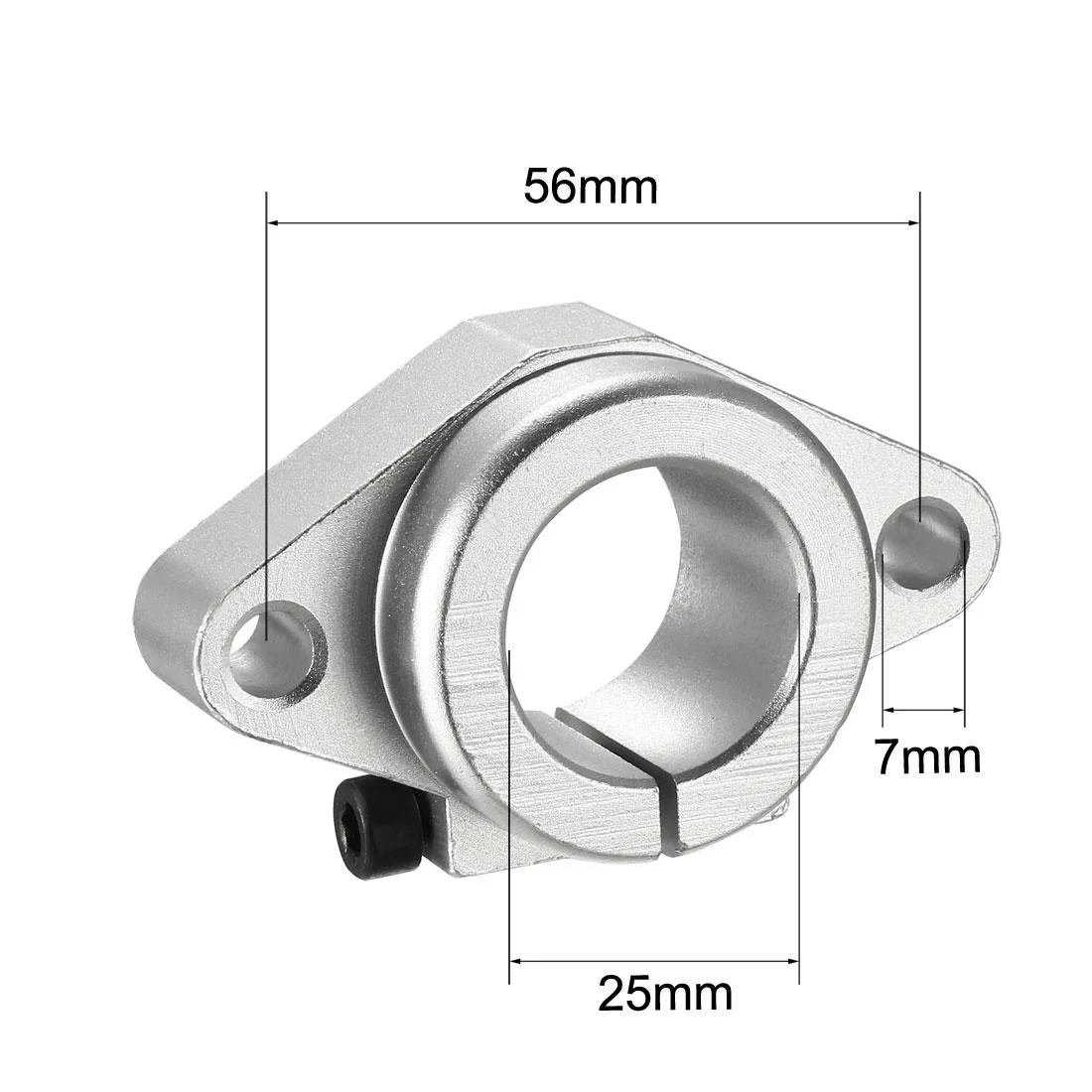

  • 7 mm mounting holes spaced 56 mm apart simplify installation
  • Compact 70 x 42 x 25 mm profile suits tight machine envelopes
  • Light 80 g weight reduces moving mass on precision equipment

Aluminium shaft support for 25 mm linear rails

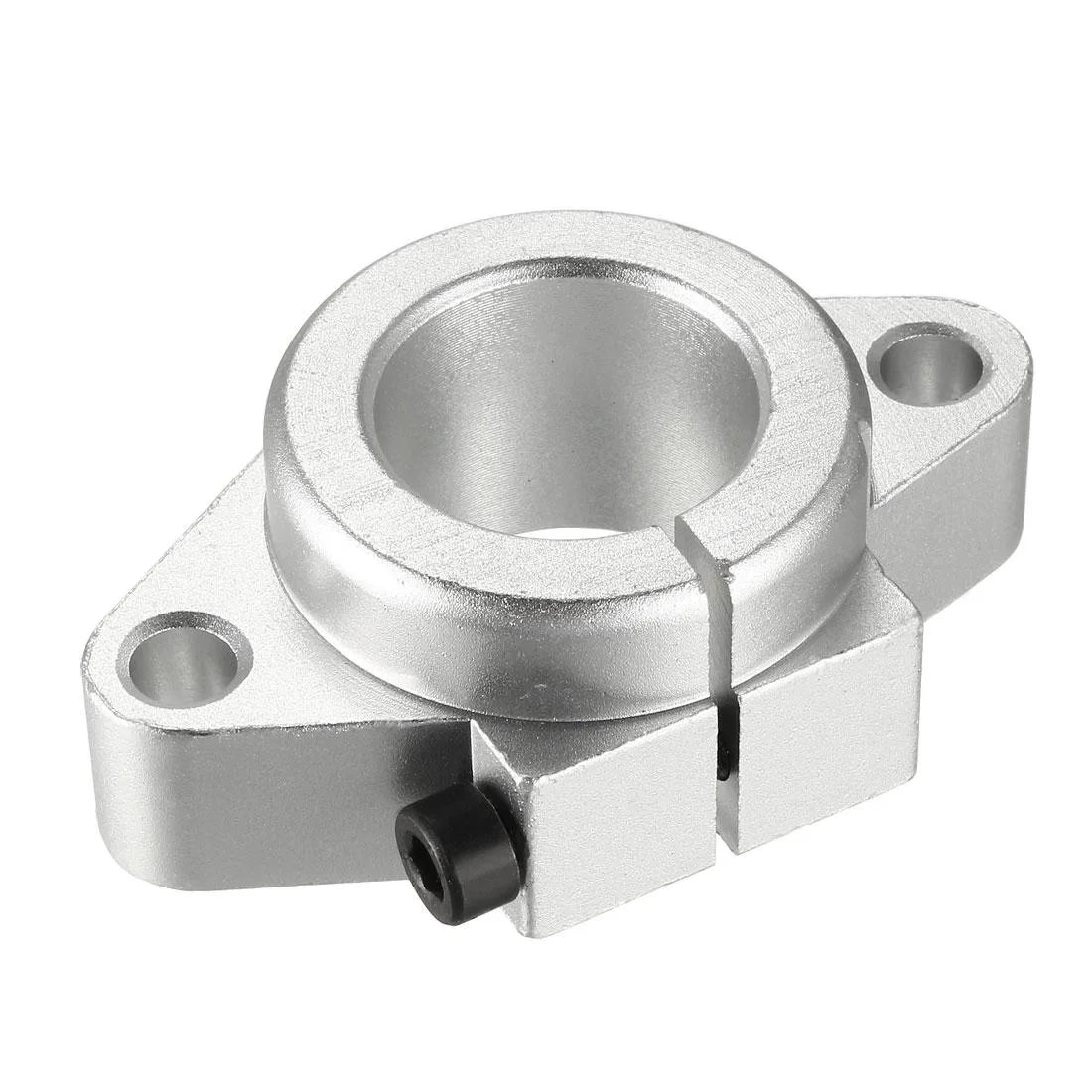

This aluminium support clamps a 25 mm diameter shaft using two 7 mm mounting holes spaced 56 mm apart. The body measures 70 x 42 x 25 mm and weighs 80 g. It is intended for builders of precision linear motion systems such as coordinate measuring equipment or special-purpose machinery.

Suits engineers needing a single

The part provides one fixed mounting point for a 25 mm round rail. It does not suit applications that require multiple supports, adjustable positioning or a different shaft diameter. Buyers who need a complete rail assembly or alternative mounting patterns should look at other components.

25 mm shaft diameter determines compatibility

The clamp is machined specifically for a 25 mm shaft; any other diameter will not fit securely. Verify that your linear rail uses this exact shaft size before purchasing.

Highlights

  • Aluminium construction resists corrosion for long service life
  • 25 mm shaft diameter fits standard linear rail systems
  • 7 mm mounting holes spaced 56 mm apart simplify installation
  • Compact 70 x 42 x 25 mm profile suits tight machine envelopes
  • Light 80 g weight reduces moving mass on precision equipment

Specifications

BrandUnique Bargains
TypeCable Connectors

Questions about this item

What shaft diameter does the SHF25 support clamp?

The SHF25 clamps a 25 mm diameter shaft, matching the 0.98 inch specification for linear rail applications.

What are the mounting hole spacing and diameter for the SHF25?

Two 7 mm mounting holes are spaced 56 mm apart centre-to-centre, fitting M6 or 1/4 inch bolts on the 70 x 42 mm base.

How do you align the SHF25 on the rail before tightening?

Slide the support onto the 25 mm shaft, position the 70 x 42 mm base using the 56 mm hole centres, then tighten both mounting bolts evenly to prevent binding.
