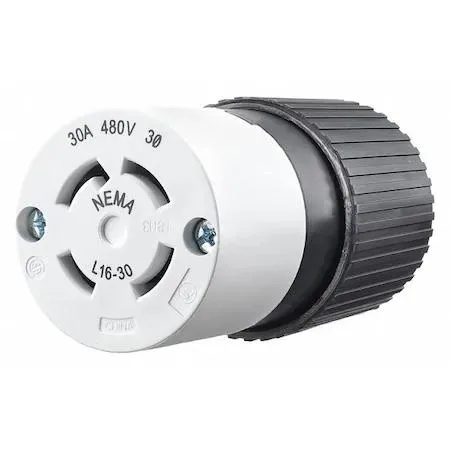

Bryant L16-30R locking connector black white nylon housing straight orientation

Bryant

Bryant 71630NC Locking Connector L16-30R 30 A 480V AC Three Phase 3 Pole wire cap connector

SKU CH-CCF2-QR5A1

Three-phase locking connector rated 30 A at 480 V AC with L16-30R configuration and screw-terminal wiring

  • Color MappingBlack/White
  • MaterialHAWA
  • TypeDisconnect Terminal & Tab Electrical Connectors
  • 30 A rating supports heavy-duty three-phase loads
  • 480 V AC voltage handles industrial power distribution
  • IP20 protection resists dust ingress in tough environments
  • Screw terminals ensure secure wire connections
  • Chemical and impact resistant nylon housing withstands harsh conditions

Industrial Locking Connector 30 A 480V

This Bryant locking connector carries a 30 A, 480 V AC three-phase rating and uses a straight NEMA L16-30R configuration. It is built for industrial power distribution where a secure, polarized connection is required. The nylon housing resists chemicals and impact. It suits maintenance crews and panel builders wiring motor feeds or temporary power drops.

Sustained Load Behaviour

Rated for 10 hp at 480 V AC three phase, the connector maintains its electrical integrity under continuous motor-start currents. Screw-terminal wire connections and a grounded, polarized design keep contact resistance stable during extended duty cycles. The IP20-rated nylon housing provides chemical and impact resistance in harsh plant environments without a shroud.

NEMA L16-30R Configuration Decides Fit

The single specification that determines compatibility is the NEMA L16-30R receptacle configuration: three-pole, four-wire, 30 A, 480 V AC three-phase. If your equipment calls for a different NEMA code, voltage, phase count or pole arrangement this connector will not mate. Buyers needing a different voltage, single-phase wiring or a capped version must select another part.

Highlights

  • 30 A rating supports heavy-duty three-phase loads
  • 480 V AC voltage handles industrial power distribution
  • IP20 protection resists dust ingress in tough environments
  • Screw terminals ensure secure wire connections
  • Chemical and impact resistant nylon housing withstands harsh conditions

Specifications

BrandBryant
Color MappingBlack/White
MaterialHAWA
TypeDisconnect Terminal & Tab Electrical Connectors

Questions about this item

How much heat does the 30 A 480V AC three-phase connector generate during continuous industrial use?

The nylon housing is rated IP20 and built for industrial duty, so it handles the 30 A load without overheating when wired to the correct 10 hp three-phase circuit.

What wire gauge and circuit breaker must I already have to install this L16-30R connector safely?

You need a 30 A three-phase 480 V AC circuit with four conductors sized for 30 A screw terminals and a matching 30 A breaker.

Will this grounding L16-30R receptacle mate with the older L16-20P plugs on our existing 20 A equipment?

No, the L16-30R configuration is keyed for 30 A 480 V three-phase only and will not accept 20 A L16-20P plugs.
