Five black S-video PCB-mount 5-pin DIN sockets, 22mm square, silver pins

Unique-Bargains

Unique-Bargains S-video PCB Mount 5 Pin Din Socket Black 5Pcs

SKU CH-APBW-KJM29

Five-pack of black 5-pin S-video PCB-mount sockets measuring 22 mm square with a 20 mm mounting diameter

  • 5-pin S-video socket replaces broken PCB connectors
  • Compact 22mm square footprint fits tight board layouts
  • 20mm mounting diameter suits standard panel cut-outs
  • Black housing with silver-tone pins for clear polarity
  • Pack of five sockets covers multiple repairs or prototypes

5-Pin S-Video PCB Socket Pack

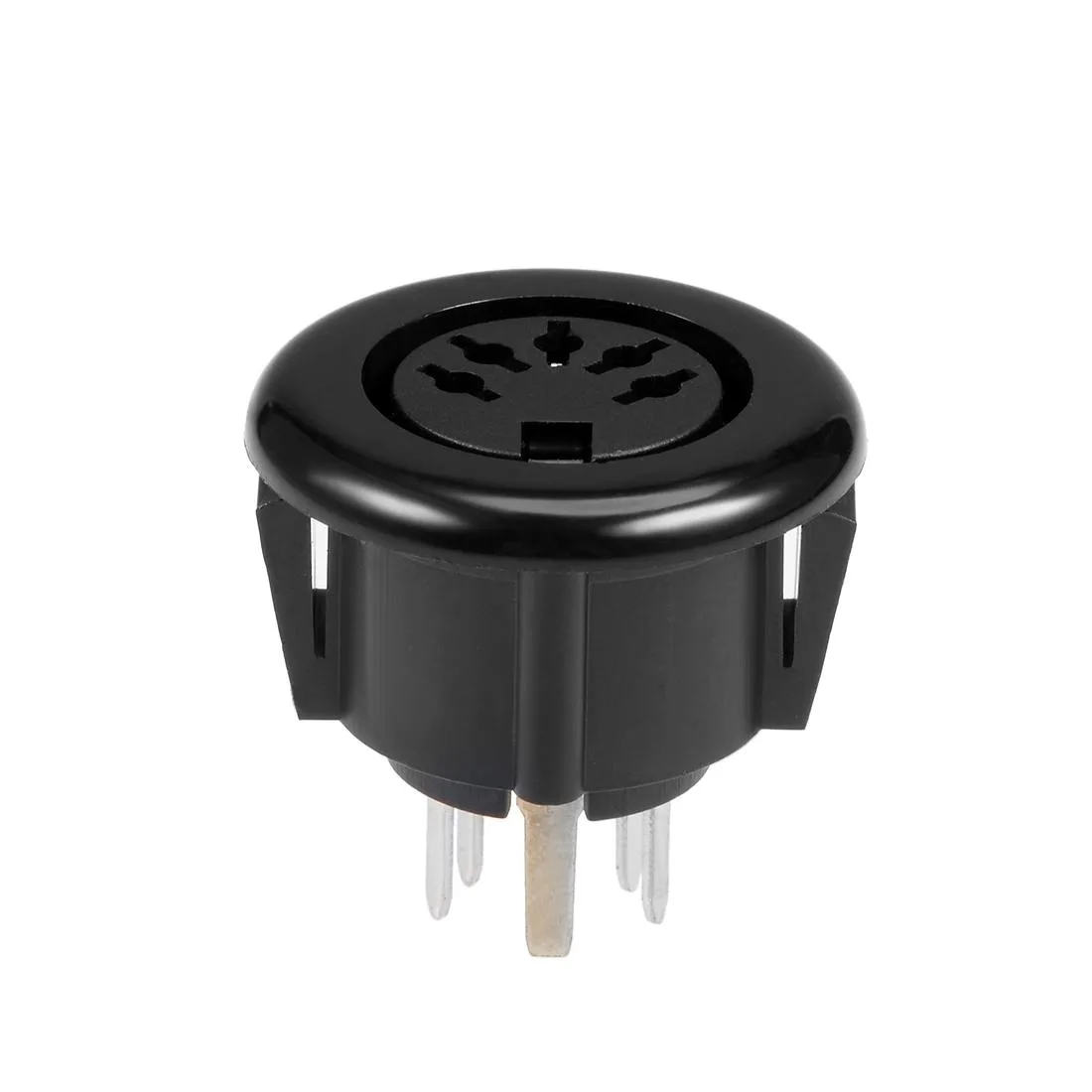

This pack contains five black S-video sockets designed for direct PCB mounting. Each unit is a female 5-pin DIN connector suited for repairing or building audio-video equipment such as media players, notebooks and car audio systems.

Mounting footprint and pin limit

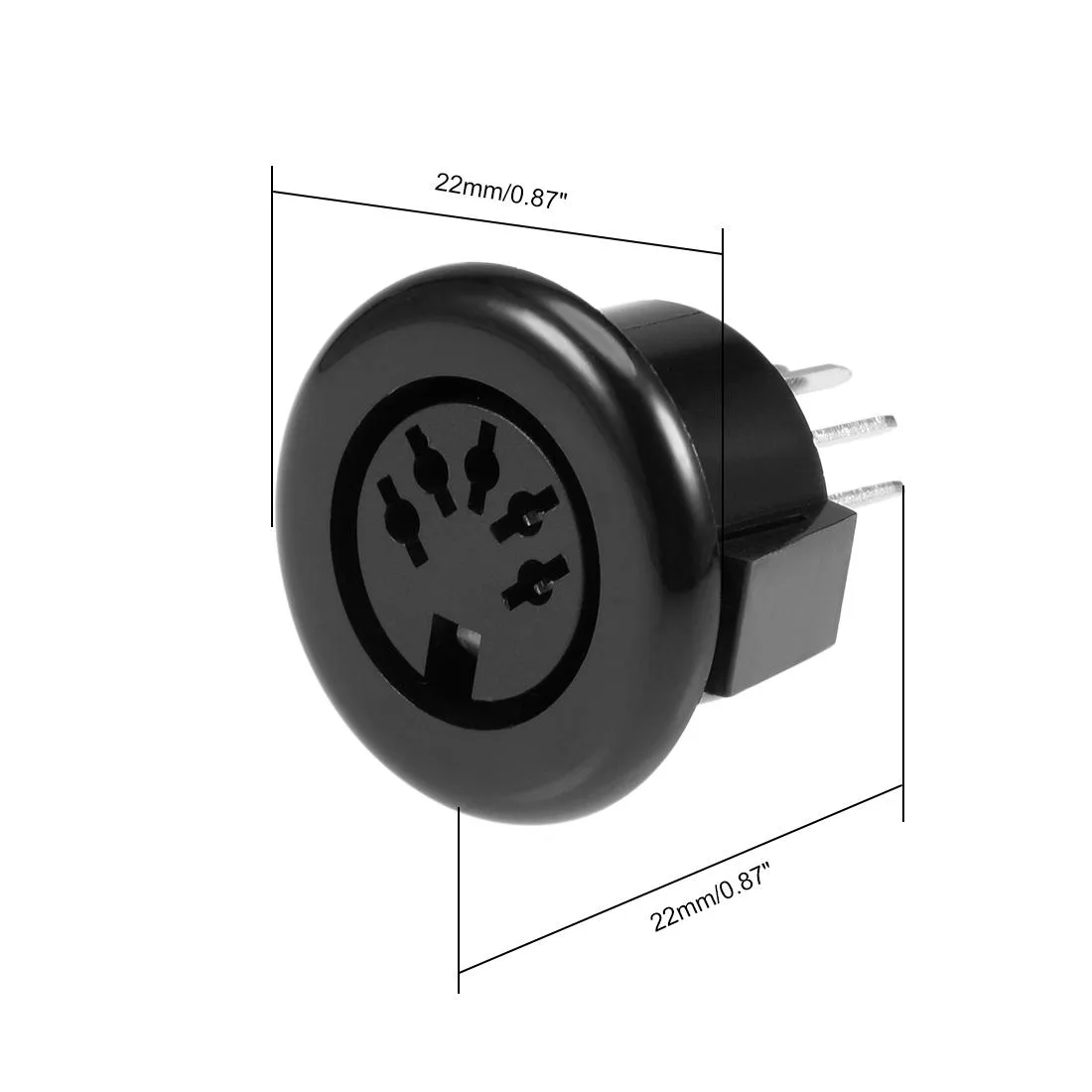

The sockets need a 20 mm mounting hole and occupy a 22 mm by 22 mm board area. Only five pins are provided, so the connector cannot carry signals that require more contacts or a different pinout.

Mixed plastic and metal construction

The body combines plastic and metal materials with a black and silver-tone finish. Through-hole pins allow standard soldering on a PCB, giving a secure mechanical joint for devices that are frequently plugged and unplugged.

Highlights

  • 5-pin S-video socket replaces broken PCB connectors
  • Compact 22mm square footprint fits tight board layouts
  • 20mm mounting diameter suits standard panel cut-outs
  • Black housing with silver-tone pins for clear polarity
  • Pack of five sockets covers multiple repairs or prototypes

Specifications

BrandUnique Bargains

Questions about this item

Should I choose the five-piece pack or buy a single socket?

The listing only supplies a five-piece pack of S-video PCB sockets; no single-unit option is shown.

What does the 22 mm length and diameter mean once the socket is soldered to a board?

The socket body measures 22 mm by 22 mm, so it occupies roughly 0.87 inch square of board space and fits a 20 mm mounting hole.

How does the 5-pin DIN interface limit the signals I can carry?

The 5-pin DIN connector carries standard S-video luminance and chrominance plus ground, so it is limited to analogue Y/C video and cannot pass digital or component signals.
