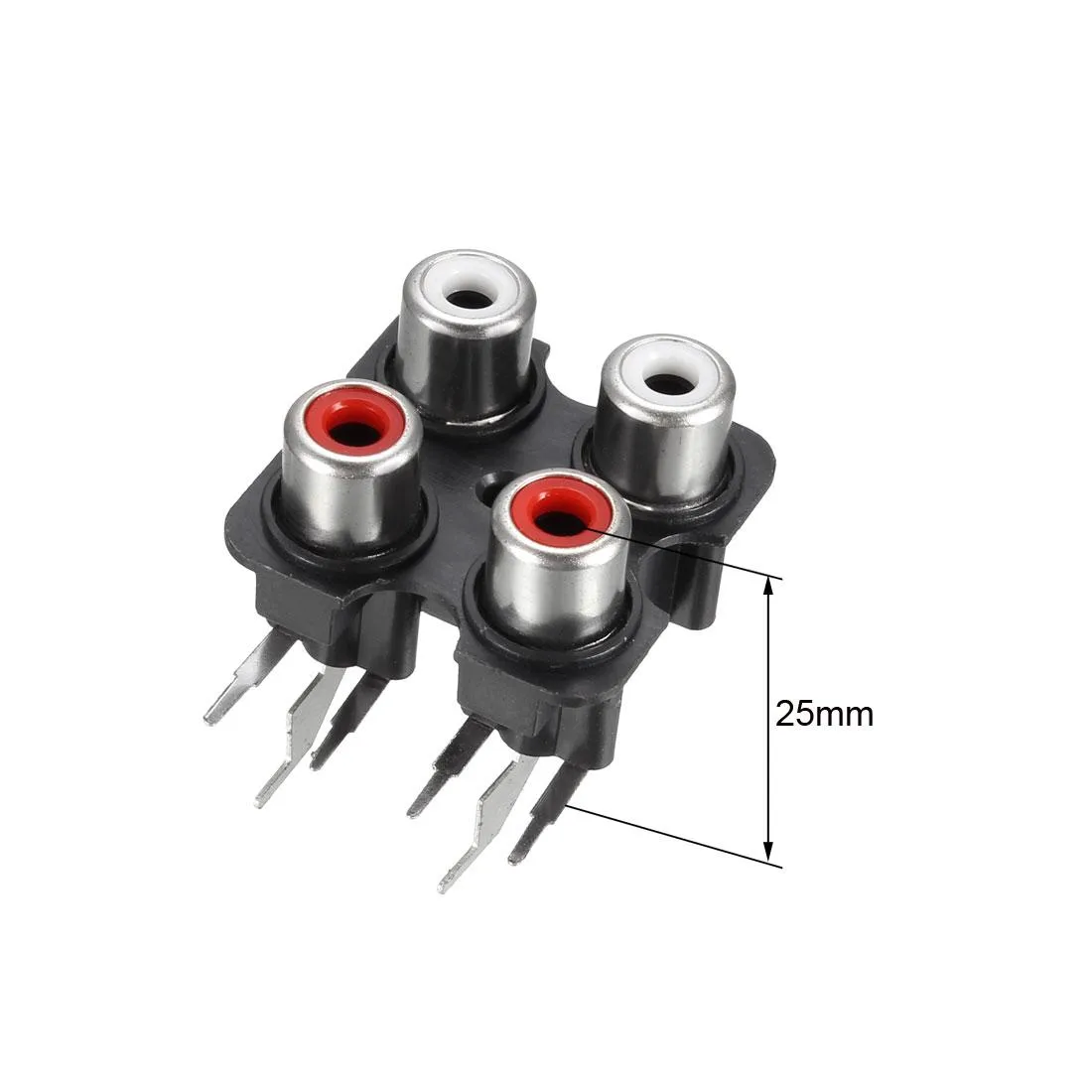

Three black panel-mount RCA sockets with silver pins, 31 by 27 by 25 mm

Unique-Bargains

Unique-Bargains PCB Panel Mount 4 RCA Socket Female Jack Audio Video AV Connector Black 6pins 3Pcs

SKU CH-7KGB-44QT9

Panel-mount RCA jack with six pins for audio-video connections, rated 50 V DC and 0.5 A, supplied as a pack of three

  • TypeRCA Component
  • Panel-mount design secures RCA sockets in equipment chassis
  • 6-pin layout supports multi-channel audio and video signals
  • DC 50 V rating handles typical line-level AV connections
  • 5 A current capacity suits low-power consumer devices
  • 31 mm × 27 mm × 25 mm footprint fits standard panel cut-outs

Panel-mount RCA connector for AV panels

This pack contains three black panel-mount connectors, each presenting a single RCA female socket on a 6-pin PCB footprint. They are intended for builders or technicians adding composite video or stereo audio inputs to custom enclosures, media centres or test rigs. The 31 mm by 27 mm by 25 mm body fits standard panel cut-outs and secures with the supplied mounting hardware.

Rated for 50 V DC and 0.5 A per contact

The gold-plated contacts handle line-level audio and standard-definition video signals with ample headroom for consumer gear. Actuating force ranges from 3 N to 30 N, giving a firm but not stiff insertion feel. The 0.5 A limit means the connectors are unsuitable for speaker-level power or any application drawing more than half an ampere per channel.

Replaces chassis-mount phono jacks in DIY upgrades

Use these when a front-panel RCA cut-out has failed or when converting equipment from screw-terminal to plug-in connectivity. The jump is worthwhile if the original jack is cracked, intermittent or lacks PCB mounting stability. They do not serve installations that require balanced XLR, digital coaxial or multi-channel HDMI interfaces.

Highlights

  • Panel-mount design secures RCA sockets in equipment chassis
  • 6-pin layout supports multi-channel audio and video signals
  • DC 50 V rating handles typical line-level AV connections
  • 5 A current capacity suits low-power consumer devices
  • 31 mm × 27 mm × 25 mm footprint fits standard panel cut-outs

Specifications

BrandUnique Bargains
TypeRCA Component

Questions about this item

Will the 31mm x 27mm panel cut-out fit the same chassis cut-outs I used for older 30mm jacks?

The connector measures 31mm long by 27mm wide, so it needs a slightly larger cut-out than a 30mm jack; verify your panel spacing before drilling.

How can I confirm each of the 6 pins is making proper contact after soldering?

Use a multimeter to check continuity across all 6 pins at the rated 0.5A and DC50V; a clean signal pass on each pole shows the mount is working.

The pack lists 3 pieces — are mounting nuts and washers included or must I buy them separately?

The package contains only the 3 PCB-mount connectors; mounting hardware such as nuts or washers is not included and must be sourced separately.
