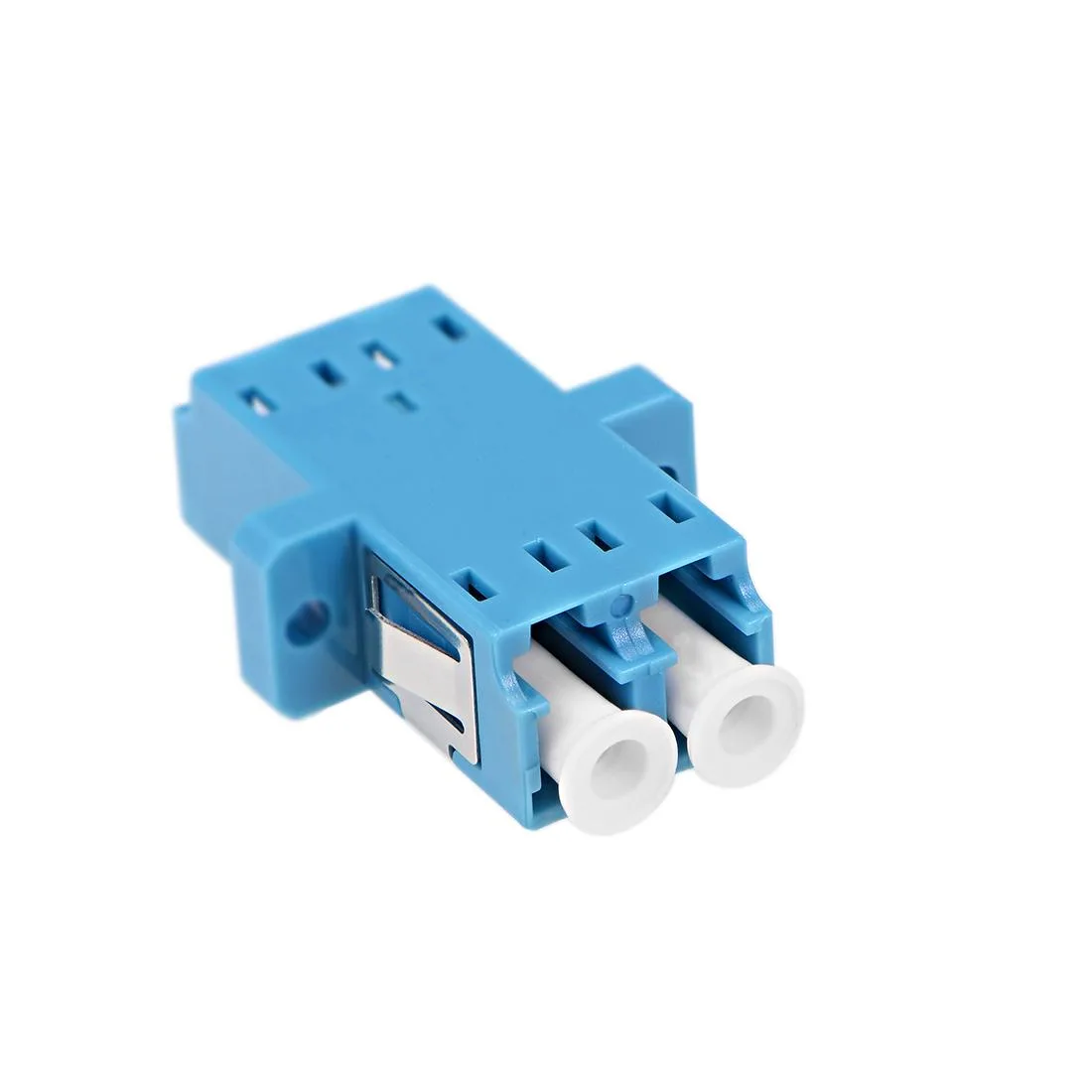

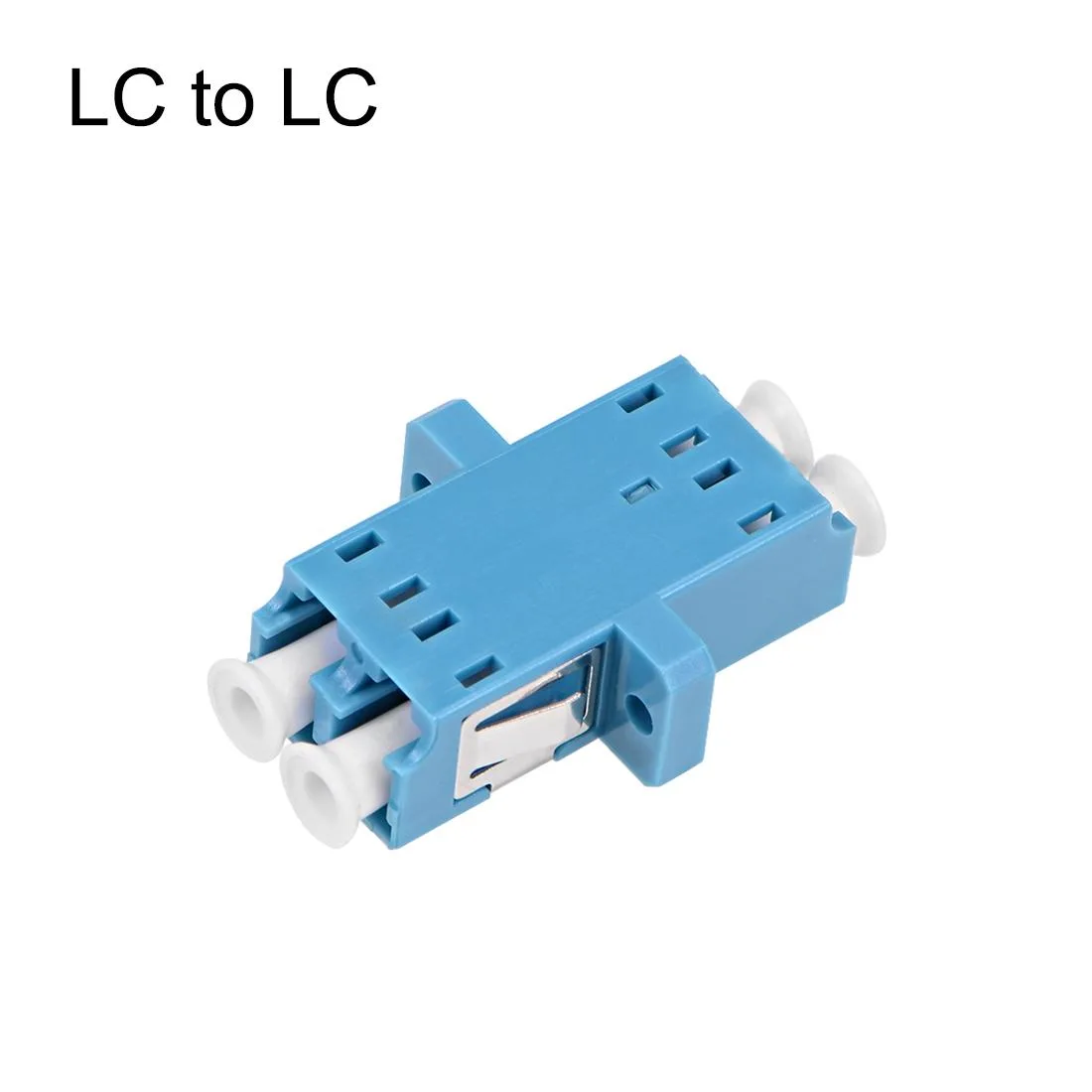

Five blue LC duplex fiber adapters with flange mounting, 35mm x 22mm x 9mm each

Unique-Bargains

Unique-Bargains LC to LC Duplex Fiber Adapter 22mm 5pcs

SKU CH-G3SS-WT828

Connects two LC fiber patch cords in single-mode or multi-mode networks with 0.2 dB insertion loss, supplied as a pack of five flange-mount adapters

  • TypeFiber
  • Low insertion loss with ≤0.2 dB repeatability
  • Blue UPC/UPC polish for single-mode OS1 9/125 fiber
  • Duplex LC-to-LC coupling joins two patch cords
  • Compact 35 mm × 22 mm × 9 mm flange fits panels
  • Operating range −20 °C to +70 °C (−4 °F to 158 °F)

LC Duplex Fiber Adapter

The Unique-Bargains LC to LC duplex adapter connects two LC patch cords in single-mode or multi-mode networks. Each coupler uses a ceramic sleeve to achieve insertion loss of .2 dB or less across the link. The flange design mounts in standard patch panels and server racks for permanent installations. A pack supplies five couplers for multi-port deployments.

Patch Panel Integration

The 22 mm wide flange fits panel cut-outs without extra brackets, freeing rack space for additional fiber runs. Blue colour coding identifies UPC polishing at a glance. Operating temperature spans -20 °C to 70 °C, so the adapter stays reliable in equipment rooms and outdoor cabinets. No tools are required beyond the LC connectors themselves.

Upgrade From Simplex Or Bulkhead Couplers

Replacing simplex couplers doubles port density in the same panel footprint. The duplex body also removes the need for paired single adapters, reducing insertion points and potential contamination. The jump is worth it when expanding a 9/125 µm single-mode plant or consolidating multi-mode links in high-density racks.

Highlights

  • Low insertion loss with ≤0.2 dB repeatability
  • Blue UPC/UPC polish for single-mode OS1 9/125 fiber
  • Duplex LC-to-LC coupling joins two patch cords
  • Compact 35 mm × 22 mm × 9 mm flange fits panels
  • Operating range −20 °C to +70 °C (−4 °F to 158 °F)

Specifications

BrandUnique Bargains
TypeFiber

Questions about this item

What is the maximum insertion loss for this LC to LC duplex adapter?

The adapter has an insertion loss of 0.2 dB or less, ensuring minimal signal attenuation when connecting two LC patch cords in single-mode or multi-mode applications.

What operating temperature range does the ceramic-sleeve adapter support for continuous operation?

It operates reliably from -20 °C to +70 °C (-4 °F to 158 °F), so the ceramic sleeve maintains low loss and high return loss even during all-day use in patch panels or server racks.

Which LC patch cords are required to use these five flange-mount couplers?

You need two single-mode or multi-mode LC patch cords per coupler; each blue UPC-polished adapter accepts standard LC connectors on both sides for OS1 9/125 µm fiber.
