Black rectangular IEC C14 panel socket with three short cables attached

Unique-Bargains

Unique-Bargains IEC C14 Panel Mount 250V 10A 3 Pin 1Set

SKU CH-XJZ9-BA1WE

IEC C14 panel-mount inlet rated 250 V 10 A with 26.5 × 18.5 mm cut-out, 40 mm screw centres and three pre-wired cables

  • TypeStraight Blade
  • Rated AC 250V 10A for reliable power delivery
  • Panel mount fits 26.5 x 18.5mm cutout with 40mm screw spacing
  • Includes IEC C14 socket plus three cables for immediate wiring
  • Compact 50 x 22 x 27mm body saves cabinet space
  • Cable lengths 260mm and 210mm suit varied routing needs

IEC C14 panel-mount inlet

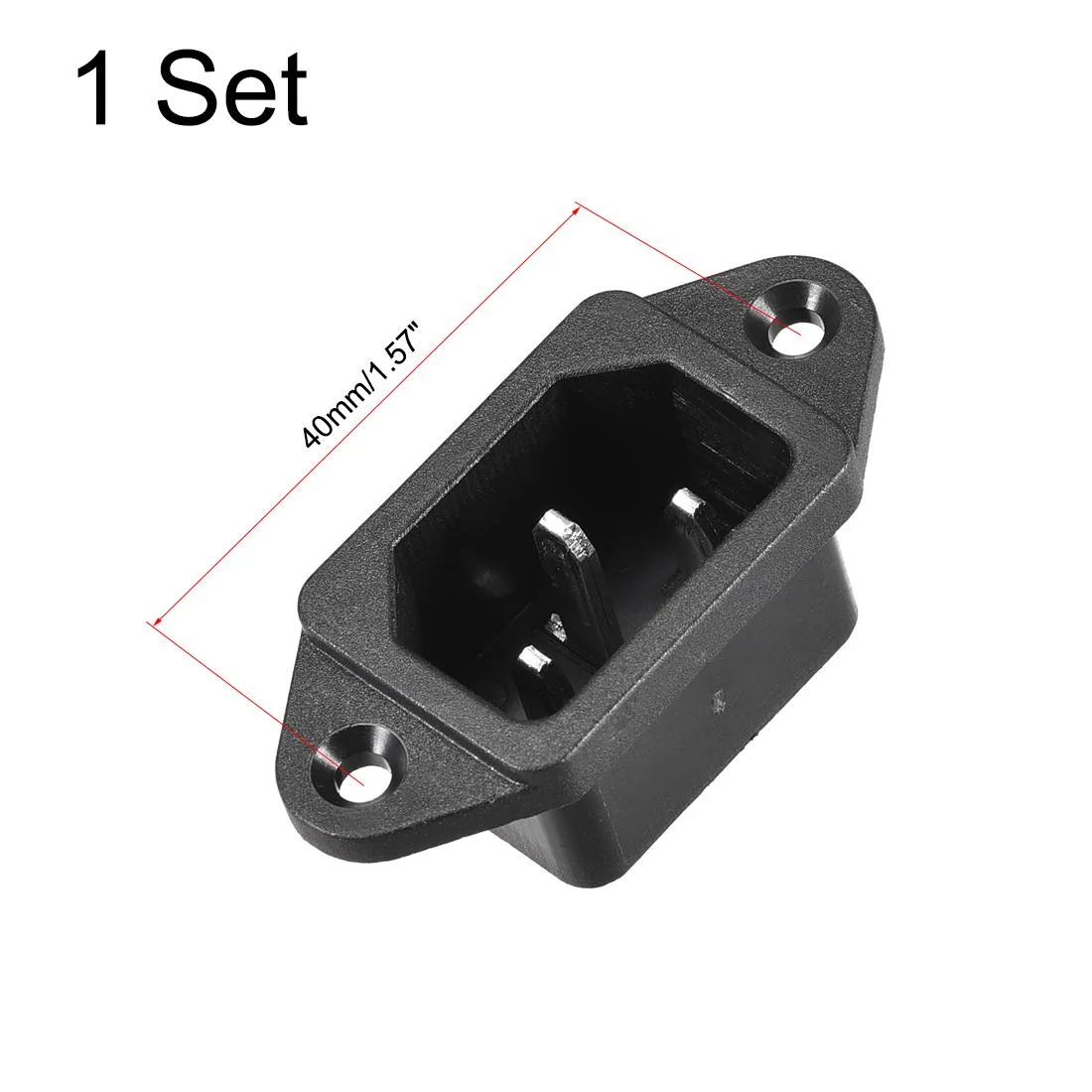

This IEC 320 C14 inlet mounts into a 26.5 by 18.5 millimetre cut-out with screw holes spaced 40 millimetres apart and 3.5 millimetres in diameter. It is rated for 250 volts AC at 10 amps and suits power supply cabinets, lighting equipment and communications cabinets.

Wiring and space considerations

The package supplies one socket and three cables measuring 260 millimetres and 210 millimetres so connections can be routed inside the enclosure. The overall body measures 50 by 22 by 27 millimetres, leaving room for adjacent components once the inlet is secured.

Continuous current handling

Rated at 10 amps, the inlet is designed to carry its full load without derating during sustained operation. The screw terminals accept the supplied cables securely, maintaining a stable connection under constant demand.

Highlights

  • Rated AC 250V 10A for reliable power delivery
  • Panel mount fits 26.5 x 18.5mm cutout with 40mm screw spacing
  • Includes IEC C14 socket plus three cables for immediate wiring
  • Compact 50 x 22 x 27mm body saves cabinet space
  • Cable lengths 260mm and 210mm suit varied routing needs

Specifications

BrandUnique Bargains
TypeStraight Blade

Questions about this item

How much current can the IEC C14 inlet handle continuously before it overheats?

The inlet is rated for AC 250V 10A, so sustained loads above 10 amps will exceed its thermal limit.

Does the socket generate noticeable heat or noise when powering equipment all day?

As a passive panel-mount inlet with no moving parts, it produces no audible noise and only minimal warmth at its rated 10A load.

What mounting hardware must I already have to install this panel-mount inlet?

You need a panel cut-out of 26.5 x 18.5 mm with two 3.5 mm screw holes spaced 40 mm apart for the mounting screws.
