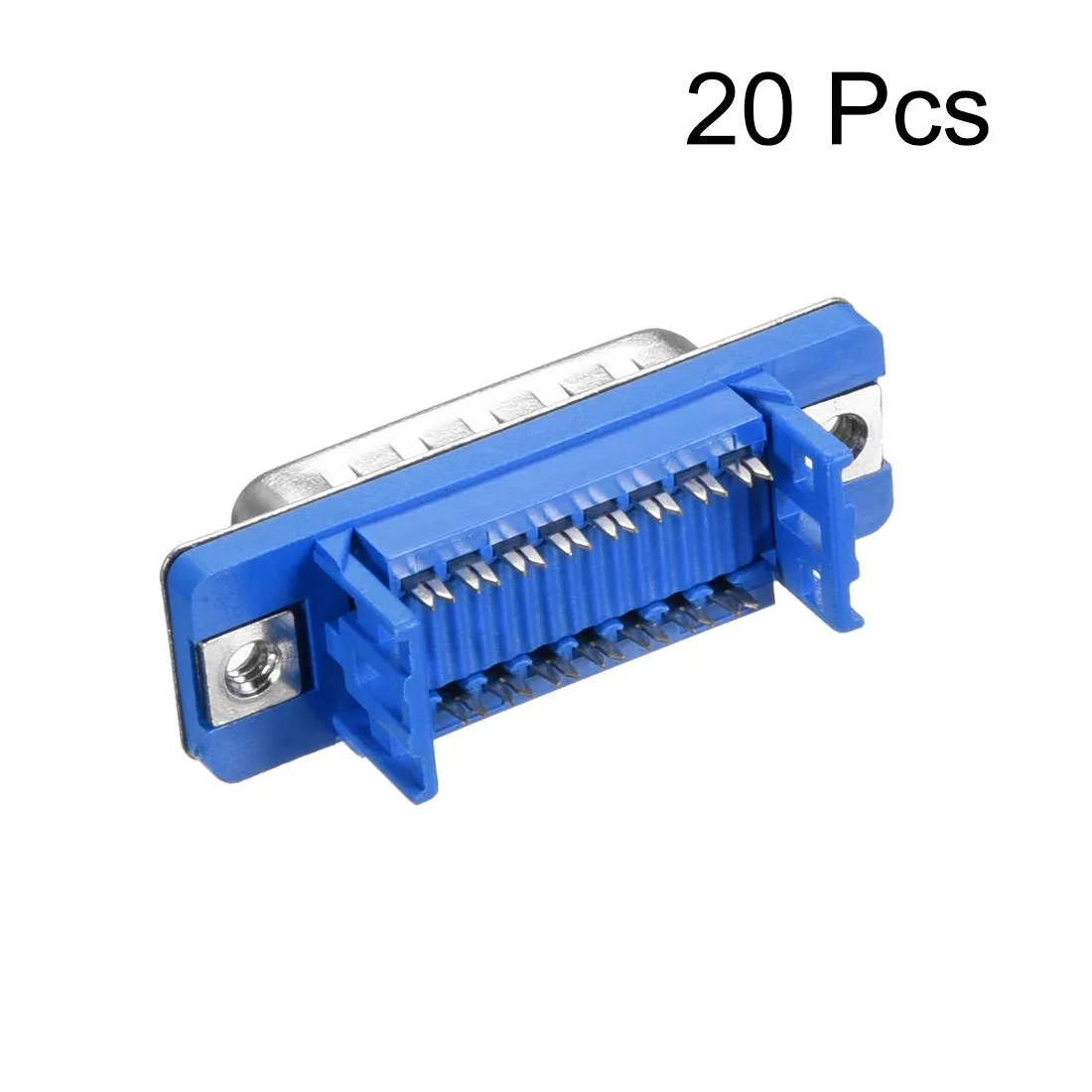

Unique-Bargains IDC D-Sub 15-pin 2-row Male Plug IDC Ribbon Cable Blue Pack of 20

SKU CH-V9DB-8CQ3V

Pack of 20 blue IDC D-sub 15-pin male plugs with strain relief for flat ribbon cable termination

  • 15-pin D-sub plug handles 5 A at 12 V for reliable data links
  • IDC termination mates directly to flat ribbon cable without soldering
  • Blue housing with strain relief and recessed contacts protects connections
  • Pack of 20 connectors suits volume builds or field spares
  • Straight 39.2 mm × 12.5 mm body fits standard panel cut-outs

Connector Specifications

These Unique-Bargains IDC D-Sub plugs are 15-pin, 2-row male connectors rated at 12V and 5A. They use insulation-displacement termination for flat ribbon cable and measure 39.2 by 12.5 millimetres overall. The blue housings include a cover for positive cable location, a strain relief and recessed contacts.

Target Users

Technicians building or repairing telecom, electronic or industrial equipment that requires a straight D-sub ribbon-cable interface will find this pack of 20 convenient. Builders who need female sockets, right-angle mounting or a different pin count should look at other connector types.

Installation Notes

Each connector crimps onto the ribbon cable without soldering, using the IDC ports and the supplied cover to secure the conductors. Alignment of the 2.84-millimetre mounting holes on a 33.3-millimetre pitch is the step most often missed, leading to mis-seated pins or damaged ribbon cable.

Highlights

  • 15-pin D-sub plug handles 5 A at 12 V for reliable data links
  • IDC termination mates directly to flat ribbon cable without soldering
  • Blue housing with strain relief and recessed contacts protects connections
  • Pack of 20 connectors suits volume builds or field spares
  • Straight 39.2 mm × 12.5 mm body fits standard panel cut-outs

Specifications

BrandUnique Bargains

Questions about this item

What flat-ribbon cable pitch matches the 15-position, 2-row IDC contacts on these connectors?

The IDC termination is designed for flat ribbon cable that aligns with the 15-pin, 2-row spacing of the D-sub shell.

Can these 15-pin male plugs mate with an existing DB-15 female port on older equipment?

Yes, the 15-position, 2-row D-sub male plug fits standard DB-15 female sockets used on legacy telecom and industrial gear.

After crimping, how do I confirm the 12 V, 5 A rated connection is solid?

Inspect that the blue housing cover snaps fully closed, the strain relief grips the cable, and all 15 pins show continuity with a multimeter.
