Two small black rectangular C8 panel-mount plugs with straight copper pins and short wires

Unique-Bargains

Unique-Bargains C8 Panel Mount Straight Blade Plug 250V 10A 2-Pin 2-Pack

SKU CH-46AF-SX4T0

A panel-mount C8 inlet rated 250 V 10 A with straight copper pins, 20.5 cm leads and 27 mm mounting centres, supplied as a pair

  • TypeIEC Pin & Sleeve Plugs, Connectors & Interlocks
  • Panel-mount design secures power inlet with 27 mm hole spacing
  • C8 connector rated for 250 V AC at 10 A
  • Straight copper pins give reliable conductivity
  • Two 20.5 cm leads simplify wiring

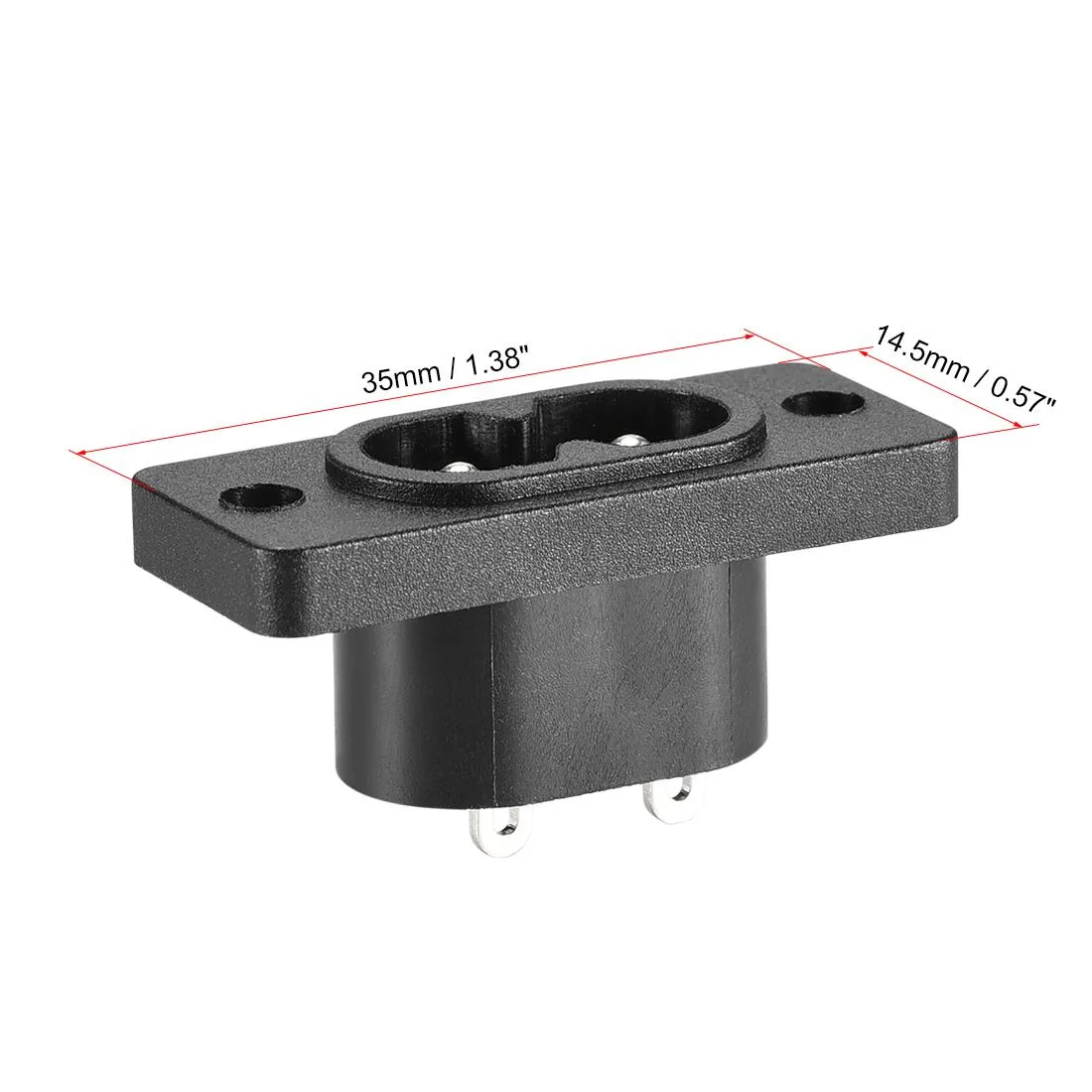

  • Compact 35 x 14.5 x 15 mm body fits tight enclosures

C8 panel-mount plug for 250 V equipment

This two-pack supplies IEC C8 inlet modules rated at 250 V AC and 10 A. Each unit has a straight blade orientation and copper contacts for power input or output on appliances and test gear. The compact 35 x 14.5 x 15 mm body fits panels with a 27 mm hole spacing.

Simple screw-mount install with two wires

Mounting holes of 3.5 mm diameter accept standard screws at the stated 27 mm centres. The 20.5 cm flying leads are stripped for direct termination to your device wiring. Take care to match live and neutral correctly; the straight pins leave no keying feature to prevent reversal.

Check panel cut-out and wire gauge first

Verify that your chassis cut-out matches the 35 x 14.5 mm outline and 27 mm mounting centres. Ensure the supply cable cross-section suits a 10 A load at 250 V AC. This connector has no integral fuse or switch, so external protection must be provided by the equipment designer.

Highlights

  • Panel-mount design secures power inlet with 27 mm hole spacing
  • C8 connector rated for 250 V AC at 10 A
  • Straight copper pins give reliable conductivity
  • Two 20.5 cm leads simplify wiring
  • Compact 35 x 14.5 x 15 mm body fits tight enclosures

Specifications

BrandUnique Bargains
TypeIEC Pin & Sleeve Plugs, Connectors & Interlocks

Questions about this item

How can I confirm the C8 panel mount plug is working after wiring it up?

Connect a load up to 10 A at 250 V AC and verify the copper contacts carry current without overheating.

What comes in the pack and what must I supply myself?

The pack includes two IEC C8 sockets with 20.5 cm wire leads; you must provide mounting screws for the 3.5 mm holes spaced 27 mm apart.

Which version should I choose if my panel cut-out is 27 mm centre-to-centre?

This model has a 27 mm mounting hole distance and 3.5 mm hole diameter, matching that cut-out exactly.
