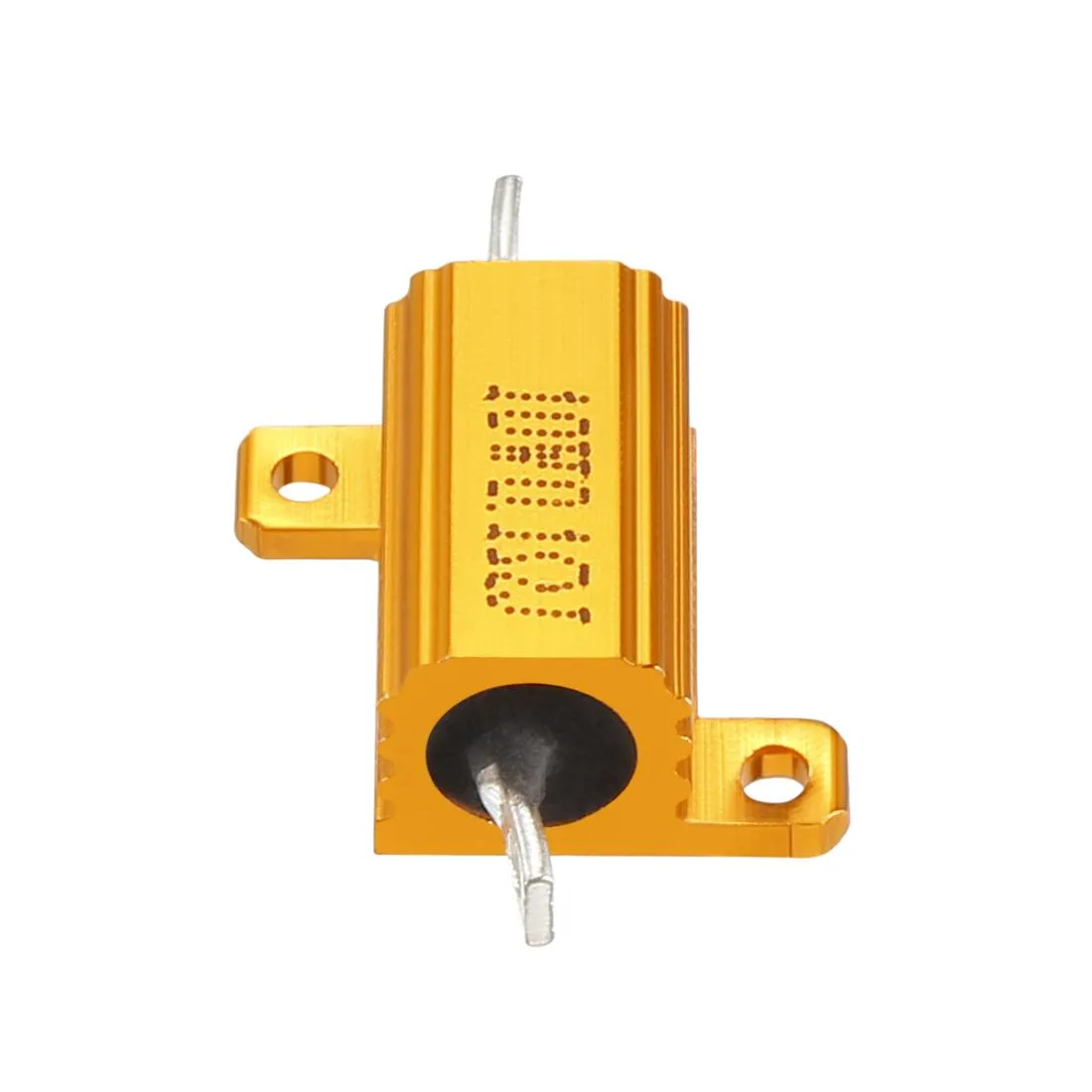

Gold aluminum housed wirewound resistor 10W 0.1 ohm with rod terminals and screw holes

Unique-Bargains

Unique-Bargains Aluminum Case Resistor 10W 0.1 Ohm

SKU CH-0KY7-ESJSM

10 W aluminium-housed wirewound resistor rated 0.1 Ω with rod terminals and 2.5 mm mounting holes

  • FeaturesAluminum Case Resistor 10w;Aluminum Housed Resistor 10w;wire
  • Aluminium housing dissipates heat efficiently for stable 10 W operation
  • 1 Ω ±5 % tolerance suits precision current-sensing circuits
  • Rod terminals with 2.5 mm holes allow secure M2.3 or #2 screw mounting
  • Compact 1.9 cm body fits tight LED driver and converter layouts
  • Nickel-alloy wire-wound element ensures reliable performance in power applications

Aluminum-Housed 10 W Wire-Wound Resistor

This 0.1 Ω component dissipates up to 10 watts in an aluminium case that acts as its own heatsink. Rod terminals with 2.5 mm clearance holes accept M2.3 or #2 hardware for secure chassis mounting. The nickel-alloy winding is rated at 5 % tolerance and weighs 6 g.

Replacing Lower-Power Axial Resistors

Axial-lead parts rated below 10 W cannot shed heat fast enough for sustained loads in LED drivers or speed-control circuits. The aluminium housing and 14 mm mounting centres make the thermal jump worthwhile when board temperature must stay low. Builders who need surface-mount footprints or values outside the single 0.1 Ω option cannot use this part.

Limits of Through-Hole Wire-Wound Construction

The 1.9 cm body and 7.7 mm rod length demand adequate panel depth and drill clearance for the 2.5 mm screw holes. Inductance inherent to the wire-wound element may affect high-frequency switching above the audio range. The fixed 5 % tolerance and single resistance value restrict use in precision calibration or multi-tap networks.

Highlights

  • Aluminium housing dissipates heat efficiently for stable 10 W operation
  • 1 Ω ±5 % tolerance suits precision current-sensing circuits
  • Rod terminals with 2.5 mm holes allow secure M2.3 or #2 screw mounting
  • Compact 1.9 cm body fits tight LED driver and converter layouts
  • Nickel-alloy wire-wound element ensures reliable performance in power applications

Specifications

BrandUnique Bargains
FeaturesAluminum Case Resistor 10w;Aluminum Housed Resistor 10w;wire wound resistor 10w 0.1 ohm;resistor for LED PCB;resistor for converter speed control

Questions about this item

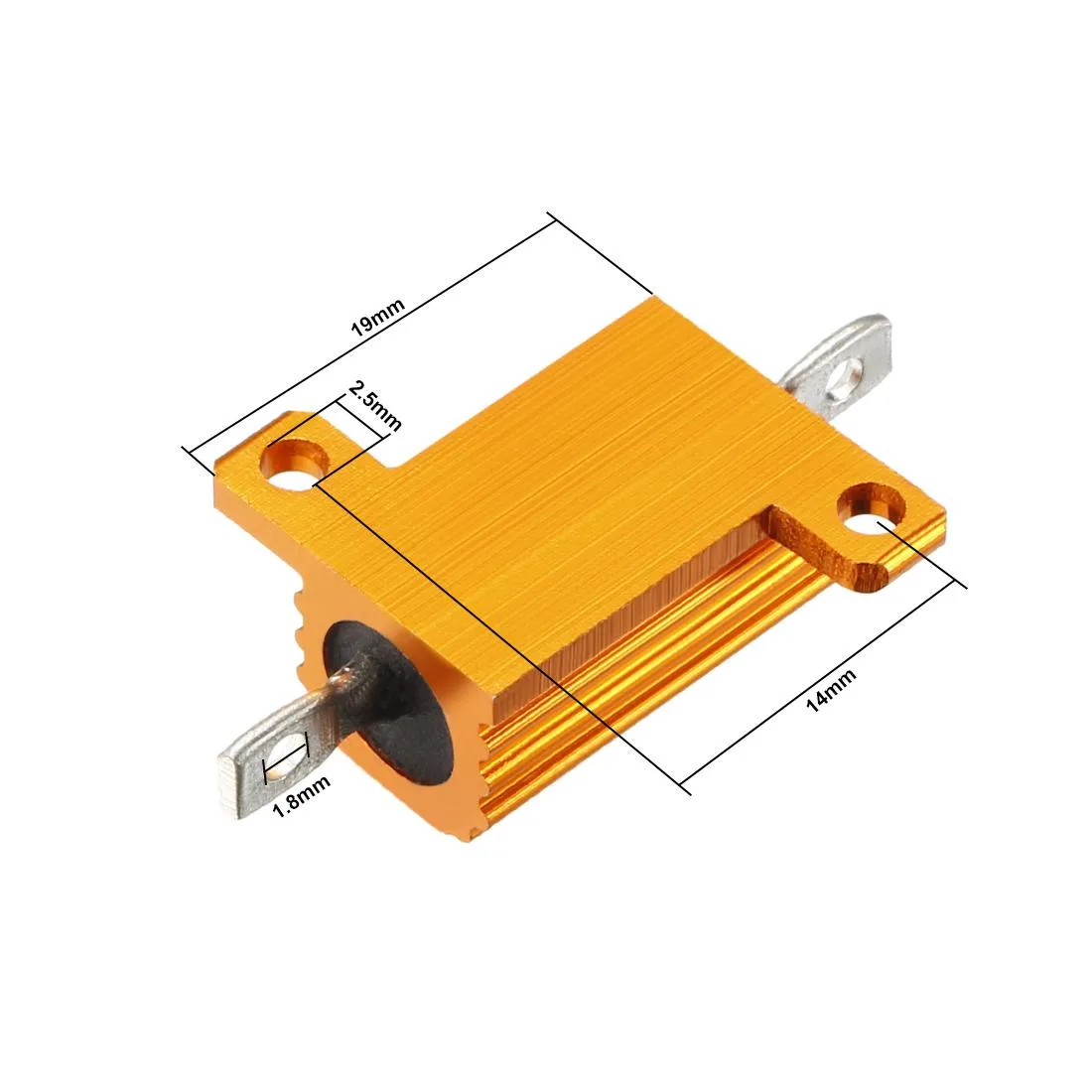

What mounting hardware fits the 2.5 mm screw holes spaced 14 mm apart?

Use #2 or M2.3 nuts and bolts through the 2.5 mm holes; the 14 mm centre-to-centre spacing matches standard small-profile brackets.

How do I connect wires to the rod terminals without a loose joint?

Slip a ring or fork terminal over each 7.7 mm rod, insert the bolt through the 2.5 mm hole, then tighten the M2.3 nut to clamp the lug securely.

When should I plan to replace this 10 W wire-wound resistor?

Replace it if the aluminum case shows discoloration, the resistance drifts beyond the 5 % tolerance, or the rod terminals become corroded after prolonged heat cycling.
