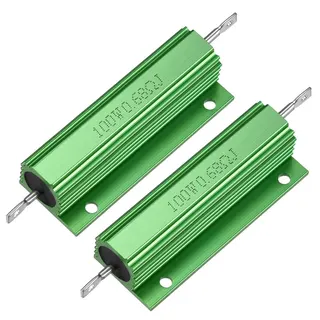

Two aluminum-housed wirewound resistors, 59 mm long with mounting holes

Unique-Bargains

Unique-Bargains Aluminum Case Resistor 100W 0.68Ohm 2Pcs

SKU CH-0EN5-PCA8B

Two 100 W wire-wound resistors rated at .68 Ω with aluminium housings for heat dissipation

  • FeaturesAluminum Case Resistor 100w;Aluminum Housed Resistor 100w;wi
  • 100 W power rating handles demanding circuits
  • 68 Ω resistance with 5 % tolerance ensures precise current control
  • Aluminium housing dissipates heat for stable operation
  • Compact 59 mm body fits tight board layouts
  • Two 2 mm solder rods plus 3.2 mm mounting hole simplify installation

100 W aluminium-housed wirewound resistors

This pack contains two 100 W aluminium-cased wirewound resistors rated at 0.68 Ω with 5 % tolerance. They are built for high-power dissipation in LED replacement, converter, inverter, motor-speed-control and driver circuits. The aluminium housing acts as a heatsink, keeping the wound element stable under continuous load. Engineers and hobbyists working on high-current DC or AC projects will find them suitable.

0.68 Ω 100 W rating

The single specification that determines fit is the 0.68 Ω resistance at 100 W continuous power. If your schematic calls for a different resistance value or a lower power rating, these parts will not work. Buyers who need a different ohmic value or a lower-wattage package should look elsewhere.

Solder lugs and 3.2 mm mounting holes

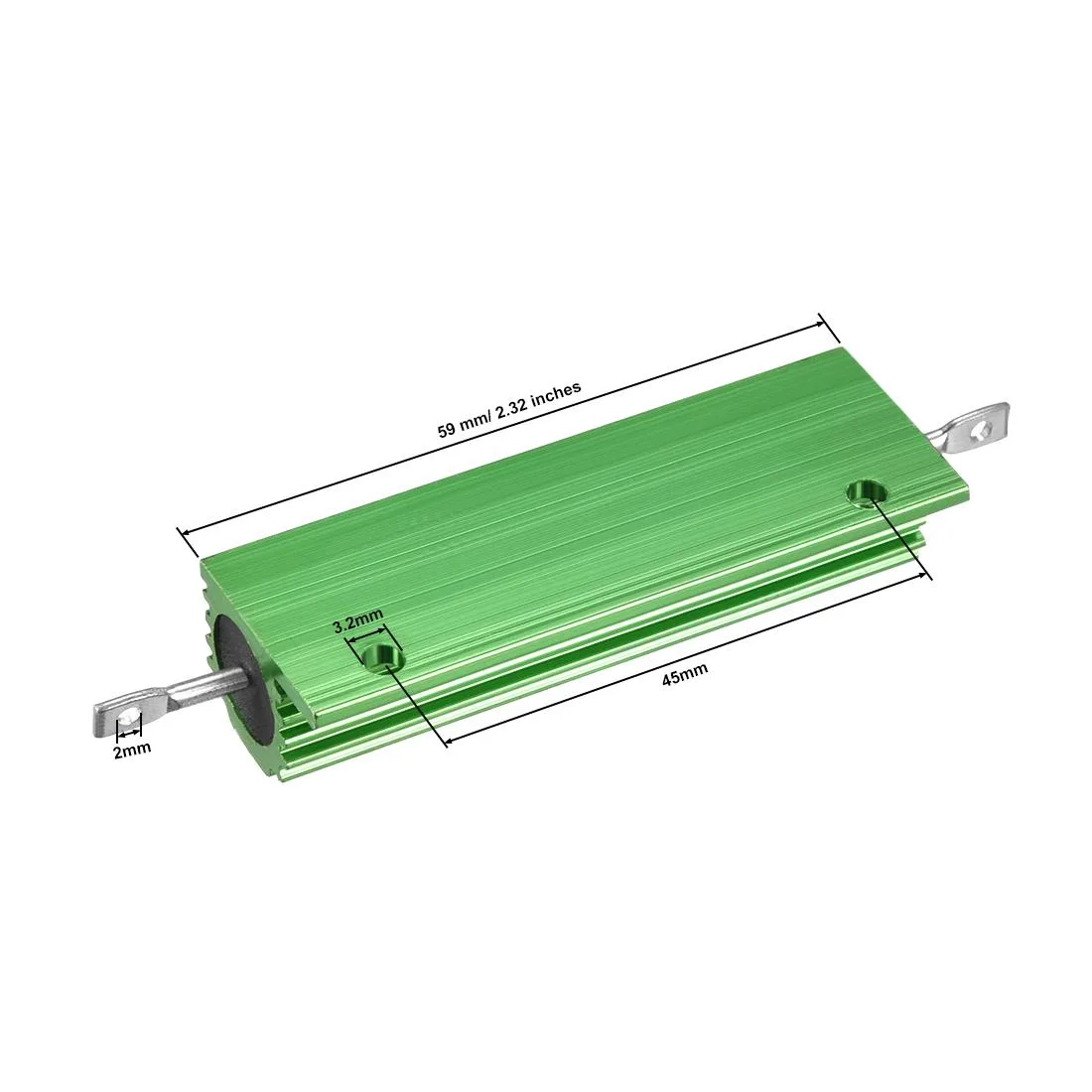

Each resistor body measures 59 mm long with two terminal rods drilled for solder connections and a 3.2 mm antisymmetric anchoring hole that accepts #2 or M2.3 hardware. Mount the aluminium case flat against a metal panel for best thermal transfer; insufficient heatsinking is the most common cause of premature failure. Ensure the mounting surface is clean and apply thermal compound if the load approaches the rated wattage.

Highlights

  • 100 W power rating handles demanding circuits
  • 68 Ω resistance with 5 % tolerance ensures precise current control
  • Aluminium housing dissipates heat for stable operation
  • Compact 59 mm body fits tight board layouts
  • Two 2 mm solder rods plus 3.2 mm mounting hole simplify installation

Specifications

BrandUnique Bargains
FeaturesAluminum Case Resistor 100w;Aluminum Housed Resistor 100w;wire wound resistor 100w 0.68 ohm;resistor for LED PCB;resistor for converter speed control

Questions about this item

What does the 100 W rating mean when the resistor is mounted in a chassis?

It indicates the continuous power the part can dissipate when the aluminium case is firmly bolted to a metal surface that acts as a heatsink; without that thermal path the safe dissipation drops sharply.

How do the 2 mm solder rods and 3.2 mm mounting hole limit the way I connect it?

The two 2 mm rods are designed for direct soldering or crimp terminals, while the 3.2 mm hole accepts a #2 or M2.3 screw to clamp the case to a heatsink or panel.

Will the 59 mm body and hole spacing fit my existing bracket?

The main body measures 59 mm (2.32 in) long; the single 3.2 mm anchoring hole is centred on the case, so check your bracket for that hole pitch and clearance.
