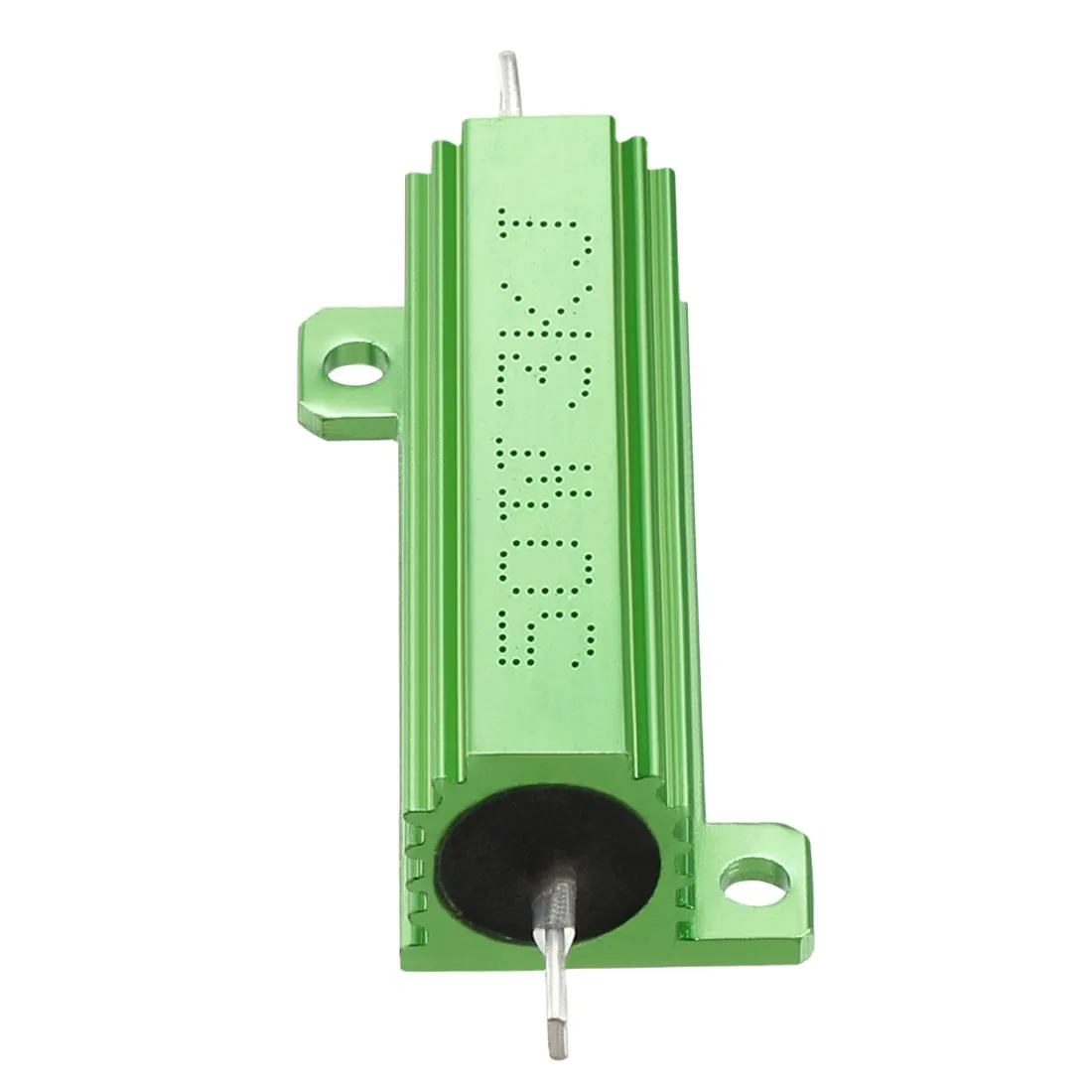

Green aluminium chassis-mount wirewound resistor with mounting tabs, 70 x 27 x 15.5 mm

Unique-Bargains

Unique-Bargains 50W 3k Ohm Aluminium Chassis Mount Wirewound Resistor Green

SKU CH-VE1D-KQYWV

A 50 W wirewound resistor rated at 3 kΩ with ±5 % tolerance in a green aluminium chassis-mount housing for heat dissipation

  • Featuresplate Chassis Mount Aluminum Housing resistor;high power loa
  • 50 W power rating for demanding circuits
  • 3 kΩ resistance with ±5 % tolerance
  • Aluminium chassis-mount housing dissipates heat
  • 5 mm mounting hole enables secure screw fixing

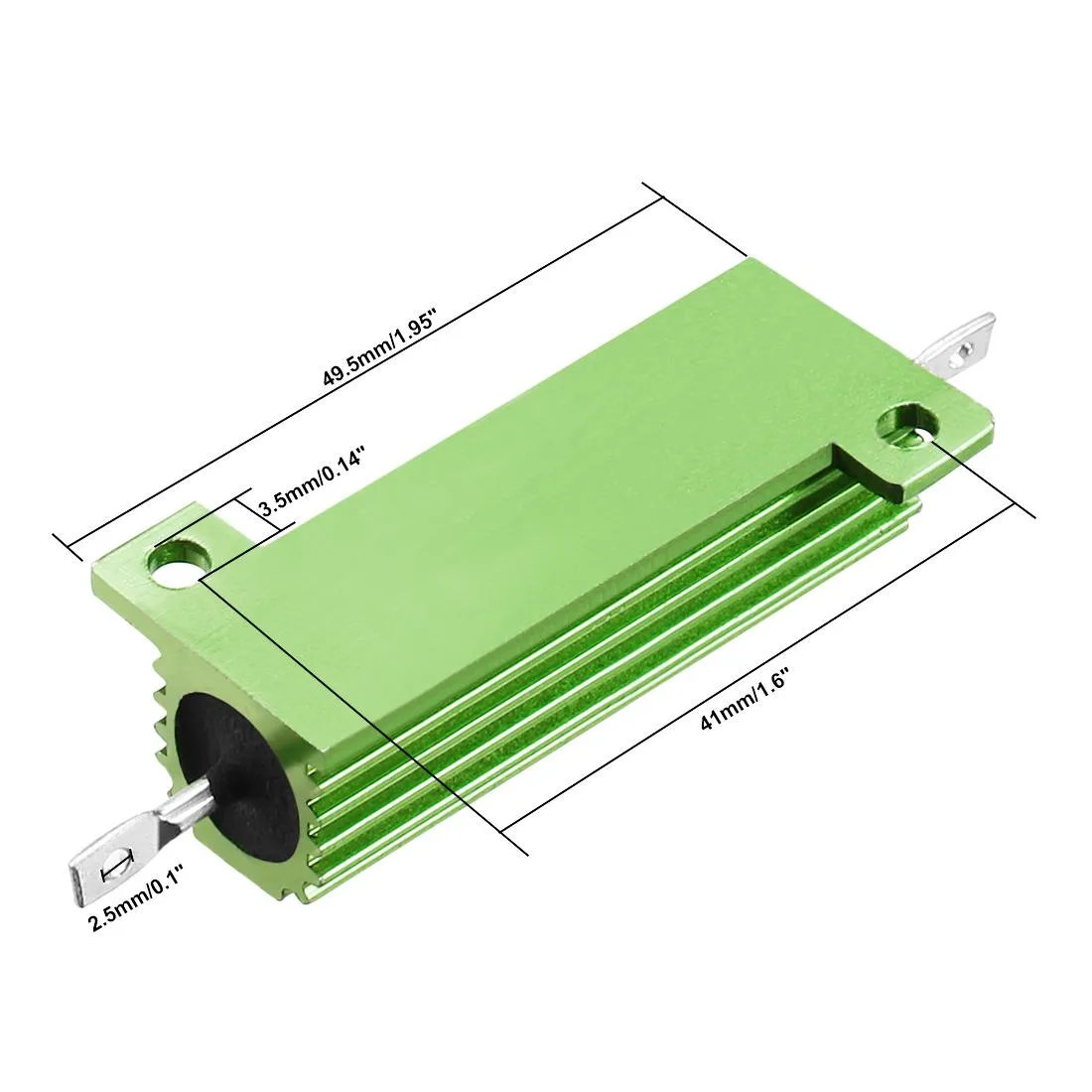

  • Compact 49.5 × 27 × 15.5 mm body fits tight spaces

50W 3k Ohm Wirewound Resistor

This 50-watt 3k ohm wirewound resistor uses an aluminium housing for heat dissipation. It is built for chassis mounting with screws and suits applications such as power supplies, transducers and audio equipment. The component is rated for continuous high-power load in demanding environments.

For high-power fixed-resistance circuits

Engineers needing a single 3k ohm value at 50 watts with chassis mounting will find this part suitable. Buyers who require adjustable resistance, multiple resistance values in one package, or surface-mount installation should look at other component types.

Sustained load with aluminium heat path

The aluminium casing transfers heat to a mounting plate, allowing the resistor to maintain its 50-watt rating during continuous operation. Wirewound construction provides stable resistance under prolonged thermal stress, and the design resists vibration in industrial settings.

Highlights

  • 50 W power rating for demanding circuits
  • 3 kΩ resistance with ±5 % tolerance
  • Aluminium chassis-mount housing dissipates heat
  • 5 mm mounting hole enables secure screw fixing
  • Compact 49.5 × 27 × 15.5 mm body fits tight spaces

Specifications

BrandUnique Bargains
Featuresplate Chassis Mount Aluminum Housing resistor;high power load aluminum Case resistor;performance in vibration Single Fix Resistors;ring doorbell Resistors;high quality Wirewound Resistor

Questions about this item

What mounting hardware do I need to attach the 3.5 mm mounting hole to a chassis?

Use M3 screws or bolts that fit the 3.5 mm hole; the aluminium housing is designed for direct chassis mounting with screws.

Will the 15.5 mm height clear adjacent low-profile components on my existing board?

The body measures 15.5 mm tall and the total length is 70 mm; verify your board spacing against those dimensions.

How can I confirm the resistor is dissipating heat correctly after installation?

Under load the aluminium housing should become warm but not excessively hot; a thermal camera or IR thermometer can verify even temperature distribution across the case.
